$568.40 / EA
manufacturer discounts
learn about discounts
- $509.60 for $1,500.00+
- $490.00 for $2,500.00+
- $470.40 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

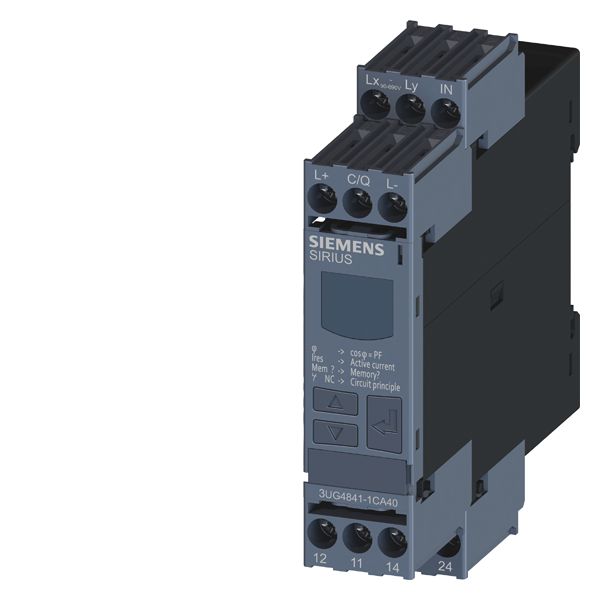

DIGITAL MONITORING RELAY COS-PHI AND CURRENT MONITORING FOR IO-LINK 90 TO 690V AC, 0.2 TO 10A OVERSHOOT AND UNDERSHOOT ON DELAY TIME TRIPPING DELAY TIME HYSTERESIS 0.1 TO 3.0A 2 CHANGE-OVER CONTACTS, SCREW TERMINAL
DIGITAL MONITORING RELAY COS-PHI AND CURRENT MONITORING FOR IO-LINK 90 TO 690V AC, 0.2 TO 10A OVERSHOOT AND UNDERSHOOT ON DELAY TIME TRIPPING DELAY TIME HYSTERESIS 0.1 TO 3.0A 2 CHANGE-OVER CONTACTS, SCREW TERMINAL
150
- UPC
- 040892871845
- UNSPSC
- 39121521
- Country of Origin
- CZ
- Adaptable response value phase displacement angle / Full-scale value:
- 0.99 °
- Adaptable response value phase displacement angle / initial value:
- 0.1 °
- Adjustable response delay time / when starting / Full-scale value:
- 999.9 s
- Adjustable response delay time / with lower or upper limit violation / Full-scale value:
- 999.9 s
- Ambient temperature / during operation / maximum:
- 60 °C
- Ambient temperature / during operation / minimum:
- -25 °C
- Control supply voltage / at DC / Rated value / maximum:
- 24.0 V
- Control supply voltage / at DC / Rated value / minimum:
- 24.0 V
- Control supply voltage / rated value / maximum:
- 30 V
- Control supply voltage / rated value / minimum:
- 18 V
