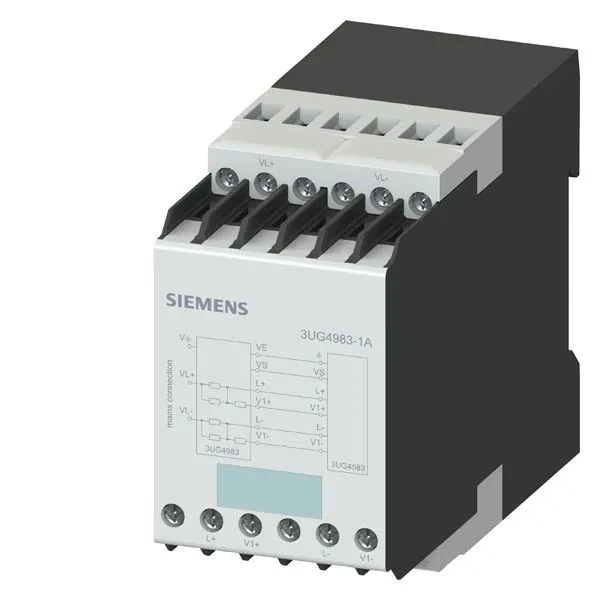

Siemens Industry, Inc. 3UG49831A Relay Board Or Multiple Relay Module product image

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

Videos & documents

Documents

Spec Sheet

3UG49831A

SKU: 3UG49831A

MPN: 3UG49831A

Purchase options

$1,110.24 / EA

manufacturer discounts
learn about discounts

$995.38 for $1,500.00+
$957.10 for $2,500.00+
$918.82 for $3,500.00+

Available to order

Lead time: over 7 working days

Lead time: over 7 working days
Secure checkout with protected order handling.
Single-unit ordering available.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Hill Electric Supply

Established 1948

Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Key specs

View all

Ambient temperature / during operation / maximum: 60 °C
Ambient temperature / during operation / minimum: -25 °C
Depth: 100 mm
Operating frequency / rated value / maximum: 400 Hz
Operating frequency / rated value / minimum: 15 Hz
Protection class IP: IP20

Description

Product overview

Upstream module for insulation monitoring relay 3UG4583 to expand the supply voltage range to 690 V AC and 1000 V DC screw terminal

Manufacturer highlights

Additional manufacturer notes

Feed description: S-A 3UG49831A COUPLING UNIT F. 3UG4
Invoice description: COUPLING UNIT F. 3UG4583 690VAC/1000VDC

Specifications

UPC: 040892923117

UNSPSC: 39122334

Country of Origin: DE

Ambient temperature / during operation / maximum: 60 °C

Ambient temperature / during operation / minimum: -25 °C

Depth: 100 mm

Operating frequency / rated value / maximum: 400 Hz

Operating frequency / rated value / minimum: 15 Hz

Protection class IP: IP20

System leakage capacitance: 20 µF

Type of voltage / for actuation: AC/DC
