Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$10,139.33 / EA
manufacturer discounts
learn about discounts
- $9,090.43 for $1,500.00+
- $8,740.80 for $2,500.00+
- $8,391.17 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA55 FRAME WITH MEDIUM HIGH (CLASS C) BREAKING CAPACITY. 600A 4-POLE(35KAIC AT 600V) (100KAIC AT 480V). TM230 TRIP UNIT WITH FIXED Ir ADJUSTABLE Ii100PCT NEUTRAL PROTECTION. SPECIAL FEATURES CONNECTION WITH LUG TERMINAL / NUT KEEPER.. DIMENSIONS (W x H x D) IN 11.1 x 12.5 x 5.8.
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA55 FRAME WITH MEDIUM HIGH (CLASS C) BREAKING CAPACITY. 600A 4-POLE(35KAIC AT 600V) (100KAIC AT 480V). TM230 TRIP UNIT WITH FIXED Ir ADJUSTABLE Ii100PCT NEUTRAL PROTECTION. SPECIAL FEATURES CONNECTION WITH LUG TERMINAL / NUT KEEPER.. DIMENSIONS (W x H x D) IN 11.1 x 12.5 x 5.8.
150
- UPC
- 804766980909
- Number Of Poles:
- 4
- Arrangement of electrical connectors / for main current circuit:
- Frontconnection
- Continuous current / rated value / maximum:
- 800A
- Design of the operating mechanism:
- togglehandle
- Design of the overcurrent release:
- TM230
- Design of the product:
- Systemprotection
- Ground fault monitoring version:
- Without
- Height:
- 328 mm
- Insulation voltage / rated value:
- 1000 V
- Maximum short-circuit current breaking capacity (Icu) / at 690 V / rated value:
- 35
- Mounting type:
- fixedmounting
- Number Of Poles:
- 4
- Operating voltage / at AC / at 50/60 Hz / rated value:
- 600 V
- Operating voltage / at DC / rated value:
- 600
- Operational short-circuit current breaking capacity (Ics) / at 415 V / rated value:
- 85kA
- Operational short-circuit current breaking capacity (Ics) / at 690 V / rated value:
- 19
- Overcurrent release / Protective functions:
- LIN
- Power loss [W] / maximum:
- 162
- Product component / display:
- No
- Product designation:
- Molded-casecircuitbreaker
- Product designation / according to UL file:
- CMAS
- Product feature / for neutral conductors / upgradeable/retrofittable / Short-circuit and overload proof:
- No
- Product function / Ground fault protection:
- No
- Product function / Intrinsic device protection:
- Yes
- Product function / communication function:
- No
- Product function / other measurement function:
- No
- Protection class IP:
- IP40
- Protective function of the overcurrent release:
- LI
- Simaris relevant:
- -
- Suitability for use:
- systemprotection
- Switching capacity class of the circuit breaker:
- C
- Type of the driving mechanism / motor drive:
- No
- Width:
- 280 mm
- circuit-breaker / Design:
- 3VA5
- product brand name:
- SENTRON
Recently Viewed
-
3VA5560-7GC42-0AA0
SIEMENS INDUSTRY, INC.
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA55 FRAME WITH MEDIUM HIGH (CLASS C) BREAKING CAPACITY. 60...
See more details -
3VA4140-4ED34-1AA0
SIEMENS INDUSTRY, INC.
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA41 FRAME WITH STANDARD (CLASS S) BREAKING CAPACITY. 40A 3...
See more details -

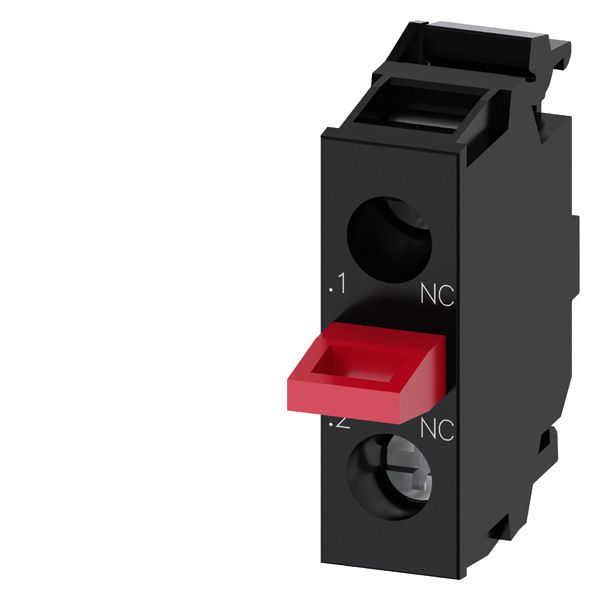

3SU14002AA101CA0
