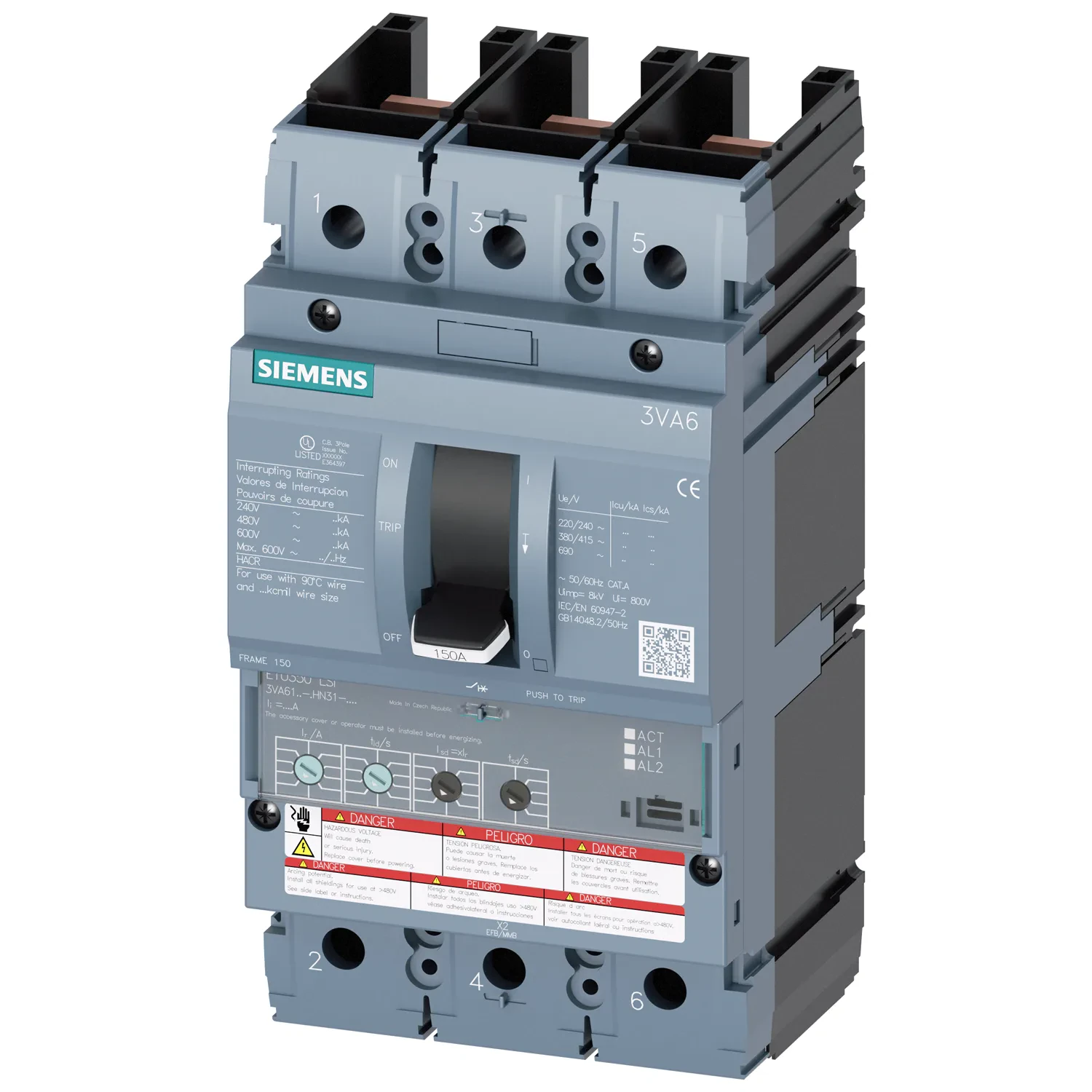

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA61 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 100A 3-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU350 TRIP UNIT LSI. SPECIAL FEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 4.1 x 7.8 x 4.2.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

3VA6110-8HN31-2AA0

$3,501.05 / EA

manufacturer discounts
learn about discounts

  • $3,138.88 for $1,500.00+
  • $3,018.15 for $2,500.00+
  • $2,897.42 for $3,500.00+

In stock (0)
Lead time: over 7 days
may be longer on small orders

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA61 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 100A 3-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU350 TRIP UNIT LSI. SPECIAL FEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 4.1 x 7.8 x 4.2.

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA61 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 100A 3-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU350 TRIP UNIT LSI. SPECIAL FEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 4.1 x 7.8 x 4.2.

150

UPC
804766305986
UNSPSC
39121601
Country of Origin
CZ
Number Of Poles:
3
Type:
3VA6
Voltage Rating:
480 V
Connection:
punched copper bar without any lug
Current Rating:
100 A
Diken-export / tripping characteristics / Upper tolerance band:
AK_3VA6_1_100A_ETU350_MuHuCuL_oT
Frame:
150A
Height:
7.8 in
Interrupt Rating:
WITH 150kA INTERRUPTION RATING
Length:
4.13
N-Leiter Schutz / einstellbar:
Yes
N-Leiterschutz N / Einstellparameter Strom InN / Einheit der Werteliste:
Unit
N-Leiterschutz N / Einstellparameter Strom InN / Format der Werteliste:
xIn
N-leiter-schutz / Ein-/Ausschaltbar:
No
Number Of Poles:
3
Setting range / Overload function L / Delay time tR / I**2t characteristic curve / Factor:
s
Setting range / Overload function L / Delay time tR / I**2t characteristic curve / Factor of grading:
Unit
Setting range / Overload function L / Delay time tR / I**2t characteristic curve / Grading:
0.5;0.75;1;2;3;5;8;10;14;17
Setting range / Short-circuit function, instantaneous I / Setting current Ii / Factor:
xIn
Setting range / Short-circuit function, instantaneous I / Setting current Ii / Factor of grading:
Fixed
Setting range / Short-circuit function, instantaneous I / Setting current Ii / Grading:
12
Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (on) / Factor:
s
Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (on) / Factor of grading:
Unit
Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (on) / Grading:
0.02;0.08;0.15;0.22;0.3;0.4
Setting range / Short-circuit function, short-time delay / Setting current IS / I**2t (on) / Factor:
xIr
Setting range / Short-circuit function, short-time delay / Setting current IS / I**2t (on) / Factor of grading:
Unit
Setting range / Short-circuit function, short-time delay / Setting current IS / I**2t (on) / Grading:
1.5;2;2.5;3;3.5;4;5;6;8;10
Setting range / Short-circuit function, short-time delay / Setting current IS / StandardI**2t / can be switched on/off:
No
Setting range / ground fault function G / lg function selectable:
No
Standard:
UL
Sub Brand:
3VA
Trip Type:
ETU350 LSI ADJUSTMENT KNOB
Trip class / of the L-trip / with I2t characteristic / Full-scale value:
17
Trip class / of the L-trip / with I2t characteristic / initial value:
0.5
Type:
3VA6
Voltage Rating:
480 V
Width:
4.21
i-trip unit / can be switched ON/OFF:
No
version / Overcurrent release / Adjustability / Short-circuit function, instantaneous I:
No
