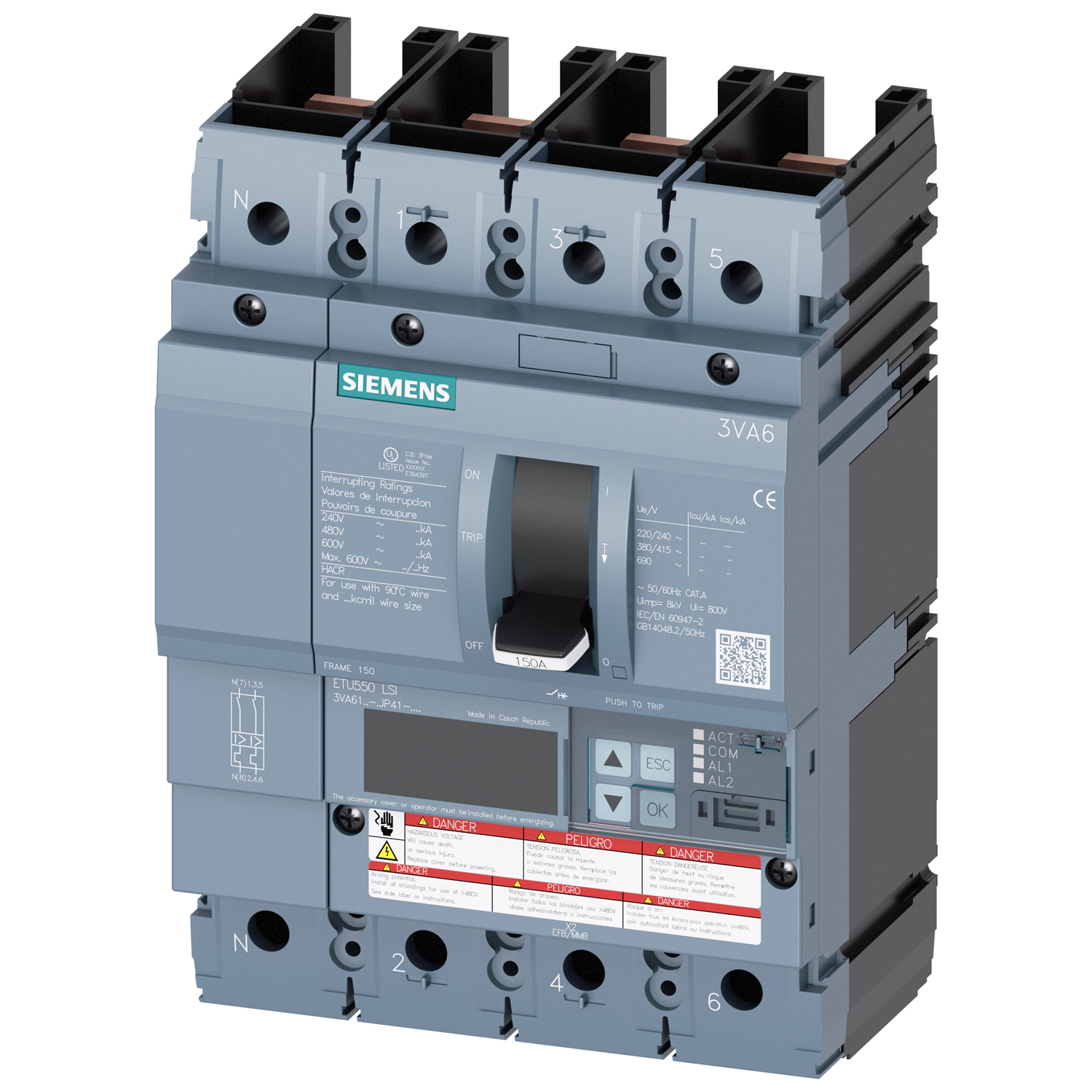

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA61 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 100A 4-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU550 TRIP UNIT LCD LSI. SPECIAL FEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 5.5 x 7.8 x 4.2.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

3VA6110-8JP41-2AA0

$6,419.03 / EA

manufacturer discounts
learn about discounts

  • $5,755.00 for $1,500.00+
  • $5,533.65 for $2,500.00+
  • $5,312.30 for $3,500.00+

In stock (0)
Lead time: over 7 days
may be longer on small orders

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA61 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 100A 4-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU550 TRIP UNIT LCD LSI. SPECIAL FEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 5.5 x 7.8 x 4.2.

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA61 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 100A 4-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU550 TRIP UNIT LCD LSI. SPECIAL FEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 5.5 x 7.8 x 4.2.

150

UPC
804766305924
UNSPSC
39121601
Country of Origin
CZ
Number Of Poles:
4
Type:
3VA6
Voltage Rating:
480 V
Adjustable delay time / of S-trip / with I2t characteristic / Full-scale value:
0.50s
Adjustable delay time / of S-trip / with I2t characteristic / initial value:
0.05s
Adjustable delay time / of S-trip / with standard characteristic / Full-scale value:
0.50s
Adjustable delay time / of S-trip / with standard characteristic / initial value:
0.05s
Adjustable pick-up value current / of instantaneous short-circuit trip unit / Full-scale value:
1200
Adjustable pick-up value current / of instantaneous short-circuit trip unit / initial value:
150
Adjustable pick-up value current / of the current-dependent overload release / Full-scale value:
100
Adjustable pick-up value current / of the short-time delayed short-circuit release / Full-scale value:
1000.00A
Adjustable pick-up value current / of the short-time delayed short-circuit release / initial value:
60.00A
Arrangement of electrical connectors / for main current circuit:
Withoutconnection
Connection:
punched copper bar without any lug
Current Rating:
100 A
Frame:
150A
Height:
198
Interrupt Rating:
WITH 150kA INTERRUPTION RATING
Length:
5.51
Maximum short-circuit current breaking capacity (Icu) / at 240 V / rated value:
200
Maximum short-circuit current breaking capacity (Icu) / at 415 V / rated value:
150
Mounting type:
fixedmounting
Number Of Poles:
4
Operational short-circuit current breaking capacity (Ics) / at 240 V / rated value:
200kA
Product variations:
Advancedapplications
Protection class IP:
IP40
Protection class IP / on the front:
IP40
Reference code / acc. to DIN EN 61346-2:
Q
Setting range / Overload function L / IR can be switched on:
No
Standard:
UL
Sub Brand:
3VA
Trip Type:
ETU550 LSI LCD
Type:
3VA6
Type of electrical connection / for main current circuit:
Without
Voltage Rating:
480 V
Width:
140
