Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$3,423.80 / EA
manufacturer discounts
learn about discounts
- $3,069.61 for $1,500.00+
- $2,951.55 for $2,500.00+
- $2,833.49 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

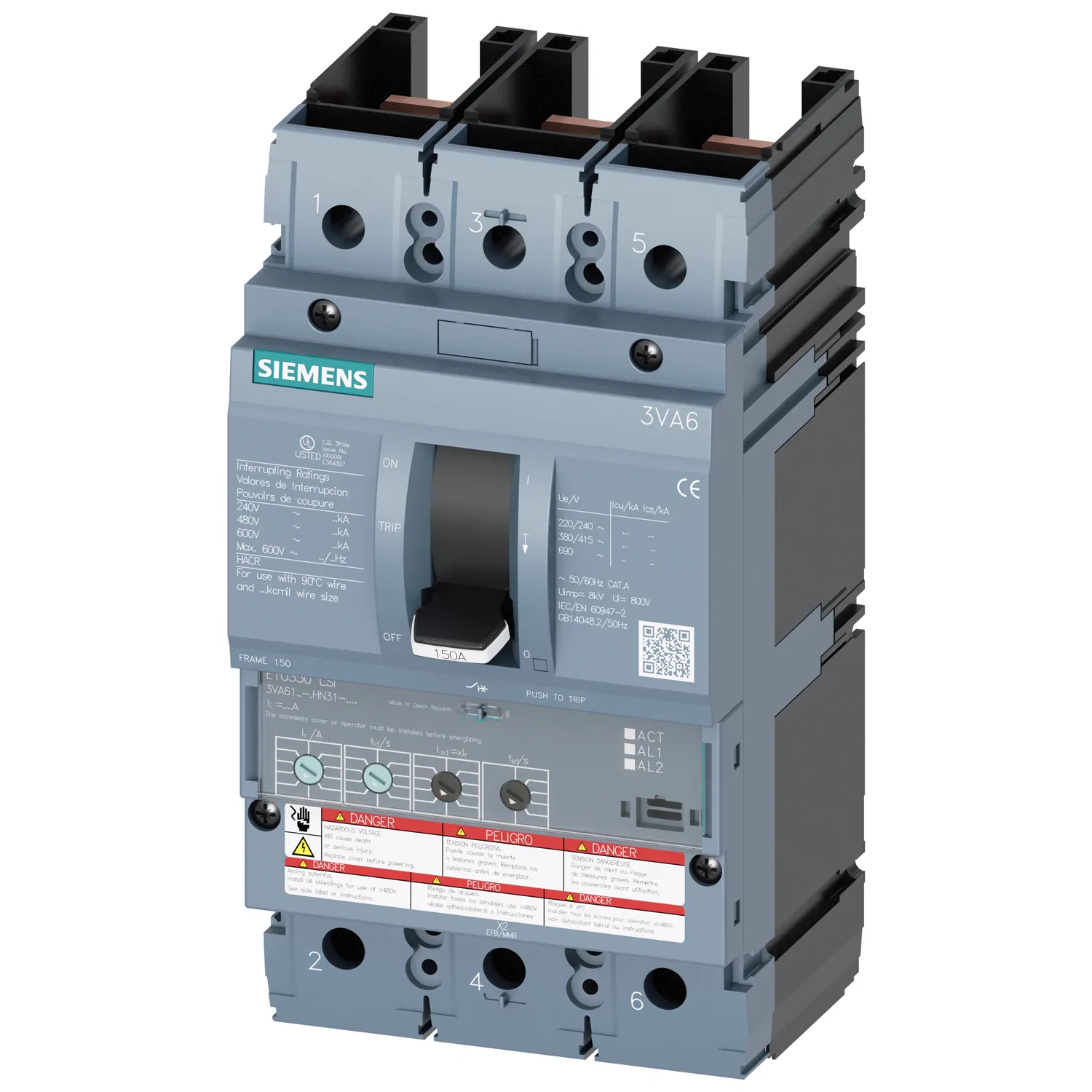

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA61 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 40A 3-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU350 TRIP UNIT LSI. SPECIAL FEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 4.1 x 7.8 x 4.2.
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA61 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 40A 3-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU350 TRIP UNIT LSI. SPECIAL FEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 4.1 x 7.8 x 4.2.
150
- UPC
- 804766303104
- UNSPSC
- 39121601
- Country of Origin
- CZ
- Number Of Poles:
- 3
- Type:
- 3VA6
- Voltage Rating:
- 480 V
- Ambient temperature / during storage / minimum:
- -40
- Connection:
- punched copper bar without any lug
- Current Rating:
- 40A
- Diken-export / tripping characteristics / Upper tolerance band:
- AK_3VA6_1_40A_ETU350_MuHuCuL_oT
- Frame:
- 150A
- Height:
- 7.8 in
- Interrupt Rating:
- WITH 150kA INTERRUPTION RATING
- Length:
- 4.13
- Maximum short-circuit current breaking capacity (Icu) / at 690 V / rated value:
- 2.5
- N-Leiter Schutz / einstellbar:
- Yes
- N-Leiterschutz N / Einstellparameter Strom InN / Einheit der Werteliste:
- Unit
- N-Leiterschutz N / Einstellparameter Strom InN / Format der Werteliste:
- xIn
- N-leiter-schutz / Ein-/Ausschaltbar:
- No
- Number Of Poles:
- 3
- Operating current / at 55 °C / rated value:
- 40
- Product function / Ground fault protection:
- No
- Setting range / Overload function L / Delay time tR / I**2t characteristic curve / max:
- 17
- Setting range / Overload function L / Setting current IR / max:
- 1
- Setting range / Short-circuit function, instantaneous I / Setting current Ii / max:
- 12
- Setting range / Short-circuit function, short-time delay / Setting current IS / I**2t (on) / max:
- 10
- Setting range / Short-circuit function, short-time delay / can be switched on/off:
- No
- Setting range / ground fault function G / lg function selectable:
- No
- Standard:
- UL
- Sub Brand:
- 3VA
- Trip Type:
- ETU350 LSI ADJUSTMENT KNOB
- Tripping characteristics / Lower tolerance band:
- AK_3VA6_1_40A_ETU350_MuHuCuL_uT
- Type:
- 3VA6
- Voltage Rating:
- 480 V
- Width:
- 4.21
- i-trip unit / can be switched ON/OFF:
- No
