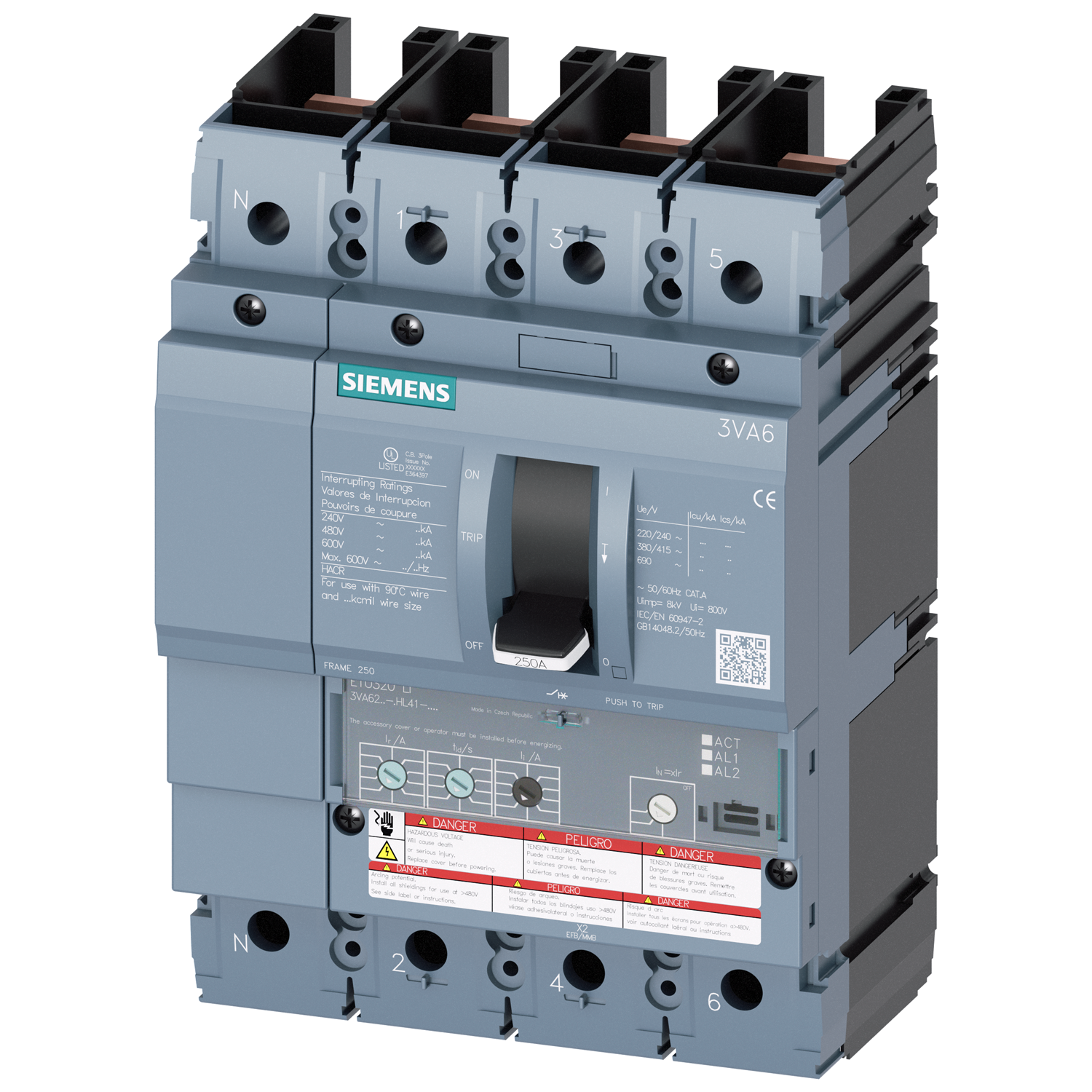

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA62 FRAME WITH MEDIUM LOW (CLASS M) BREAKING CAPACITY. 100A 4-POLE (18KAIC AT 600V) (35KAIC AT 480V). ETU320 TRIP UNIT LI. SPECIAL FEATURES WITHOUT LUGS. 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 5.5 x 7.8 x 4.2.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

3VA6210-5HL41-2AA0

$3,407.09 / EA

manufacturer discounts
learn about discounts

  • $3,054.64 for $1,500.00+
  • $2,937.15 for $2,500.00+
  • $2,819.66 for $3,500.00+

In stock (0)
Lead time: over 7 days
may be longer on small orders

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA62 FRAME WITH MEDIUM LOW (CLASS M) BREAKING CAPACITY. 100A 4-POLE (18KAIC AT 600V) (35KAIC AT 480V). ETU320 TRIP UNIT LI. SPECIAL FEATURES WITHOUT LUGS. 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 5.5 x 7.8 x 4.2.

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA62 FRAME WITH MEDIUM LOW (CLASS M) BREAKING CAPACITY. 100A 4-POLE (18KAIC AT 600V) (35KAIC AT 480V). ETU320 TRIP UNIT LI. SPECIAL FEATURES WITHOUT LUGS. 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 5.5 x 7.8 x 4.2.

150

UPC
804766311635
UNSPSC
39121601
Country of Origin
CZ
Number Of Poles:
4
Type:
3VA6
Voltage Rating:
480 V
Ambient temperature / during operation / maximum:
70
Ambient temperature / during operation / minimum:
-25
Ambient temperature / during storage / maximum:
80
Arrangement of electrical connectors / for main current circuit:
Withoutconnection
Connection:
punched copper bar without any lug
Current Rating:
100 A
Electrical endurance (switching cycles) / at AC-1 / at 380/415 V / at 50/60 Hz:
6000
Electrical endurance (switching cycles) / at AC-1 / at 690 V / at 50/60 Hz:
3000
Frame:
250A
Height:
198
Interrupt Rating:
WITH 35kA INTERRUPTION RATING
Length:
5.51
Mechanical service life (switching cycles) / typical:
20000
Number Of Poles:
4
Protection class IP:
IP40
Protection class IP / on the front:
IP40
Reference code / acc. to DIN EN 81346-2:
Q
Setting range / Overload function L / Delay time tR / I**2t characteristic curve / Grading:
0.5;0.75;1;2;3;5;8;10;14;17
Setting range / Overload function L / I**4tI**2t can be changed over:
No
Setting range / Overload function L / Setting current IR / Factor:
xIn
Setting range / Overload function L / Setting current IR / Factor of grading:
Unit
Setting range / Overload function L / Setting current IR / Grading:
0.4;0.5;0.6;0.7;0.75;0.8;0.85;0.9;0.95;1
Short-circuit current making capacity (Icm) / at 240 V / rated value:
187kA
Short-circuit current making capacity (Icm) / at 415 V / rated value:
121kA
Simaris relevant:
-
Standard:
UL
Sub Brand:
3VA
Trip Type:
ETU320 LI ADJUSTMENT KNOB
Type:
3VA6
Type of electrical connection / for main current circuit:
Without
Voltage Rating:
480 V
Width:
140
version / Overcurrent release / Adjustability / Overload function L:
Yes
