Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$3,265.11 / EA
manufacturer discounts
learn about discounts
- $2,927.34 for $1,500.00+
- $2,814.75 for $2,500.00+
- $2,702.16 for $3,500.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

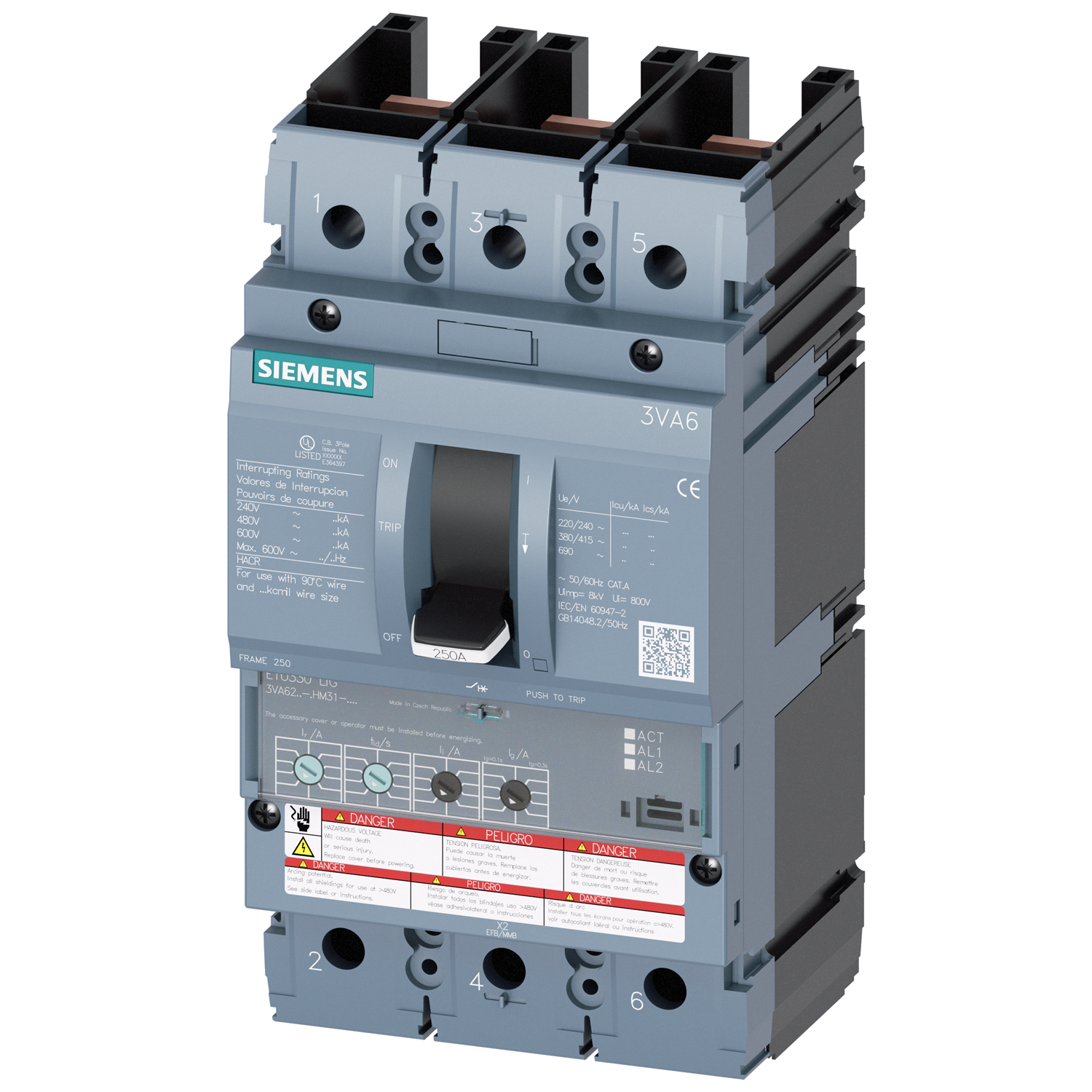

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA62 FRAME WITH MEDIUM LOW (CLASS M) BREAKING CAPACITY. 250A 3-POLE (18KAIC AT 600V) (35KAIC AT 480V). ETU330 TRIP UNIT LIG. SPECIAL FEATURES WITHOUT LUGS. 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 4.1 x 7.8 x 4.2.
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA62 FRAME WITH MEDIUM LOW (CLASS M) BREAKING CAPACITY. 250A 3-POLE (18KAIC AT 600V) (35KAIC AT 480V). ETU330 TRIP UNIT LIG. SPECIAL FEATURES WITHOUT LUGS. 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 4.1 x 7.8 x 4.2.
150
- UPC
- 804766310171
- UNSPSC
- 39121601
- Country of Origin
- CZ
- Number Of Poles:
- 3
- Type:
- 3VA6
- Voltage Rating:
- 480 V
- Certificate of suitability / as approval for NAVAL (no combat vessels) / Supplement SB:
- Yes
- Connection:
- punched copper bar without any lug
- Current Rating:
- 250 A
- Depth:
- 86
- Design of the product:
- Systemprotection
- Frame:
- 250A
- Height:
- 7.8 in
- Interrupt Rating:
- WITH 35kA INTERRUPTION RATING
- Length:
- 4.13
- Marking / of circuit breaker / acc. to UL 489 / 100%-rated breaker:
- Yes
- Number Of Poles:
- 3
- Power loss [W] / maximum:
- 42
- Product component / adjusting knob:
- Yes
- Product designation:
- Molded-casecircuitbreaker
- Product designation / according to UL file:
- MFAE-Y
- Product function / communication function:
- No
- Product function / other measurement function:
- No
- Setting range / Earth fault function G / Delay time tG, tripped / I**2t (off) / max:
- 0.3
- Setting range / Earth fault function G / Delay time tG, tripped / I**2t (off) / minimum:
- 0.1
- Setting range / Earth fault function G / Setting current IG, tripped / I**2t (off) / minimum:
- 0.2
- Setting range / Overload function L / Delay time tR / I**2t characteristic curve / min:
- 0.5
- Setting range / Overload function L / Setting current IR / min:
- 0.4
- Setting range / Short-circuit function, instantaneous I / Setting current Ii / minimum:
- 1.5
- Short-circuit current making capacity (Icm) / at 690 V / rated value:
- 4.50kA
- Simaris relevant:
- -
- Standard:
- UL
- Sub Brand:
- 3VA
- Suitability for use:
- systemprotection
- Trip Type:
- ETU330 LIG ADJUSTMENT KNOB
- Type:
- 3VA6
- Voltage Rating:
- 480 V
- Width:
- 4.21
- product brand name:
- SENTRON
