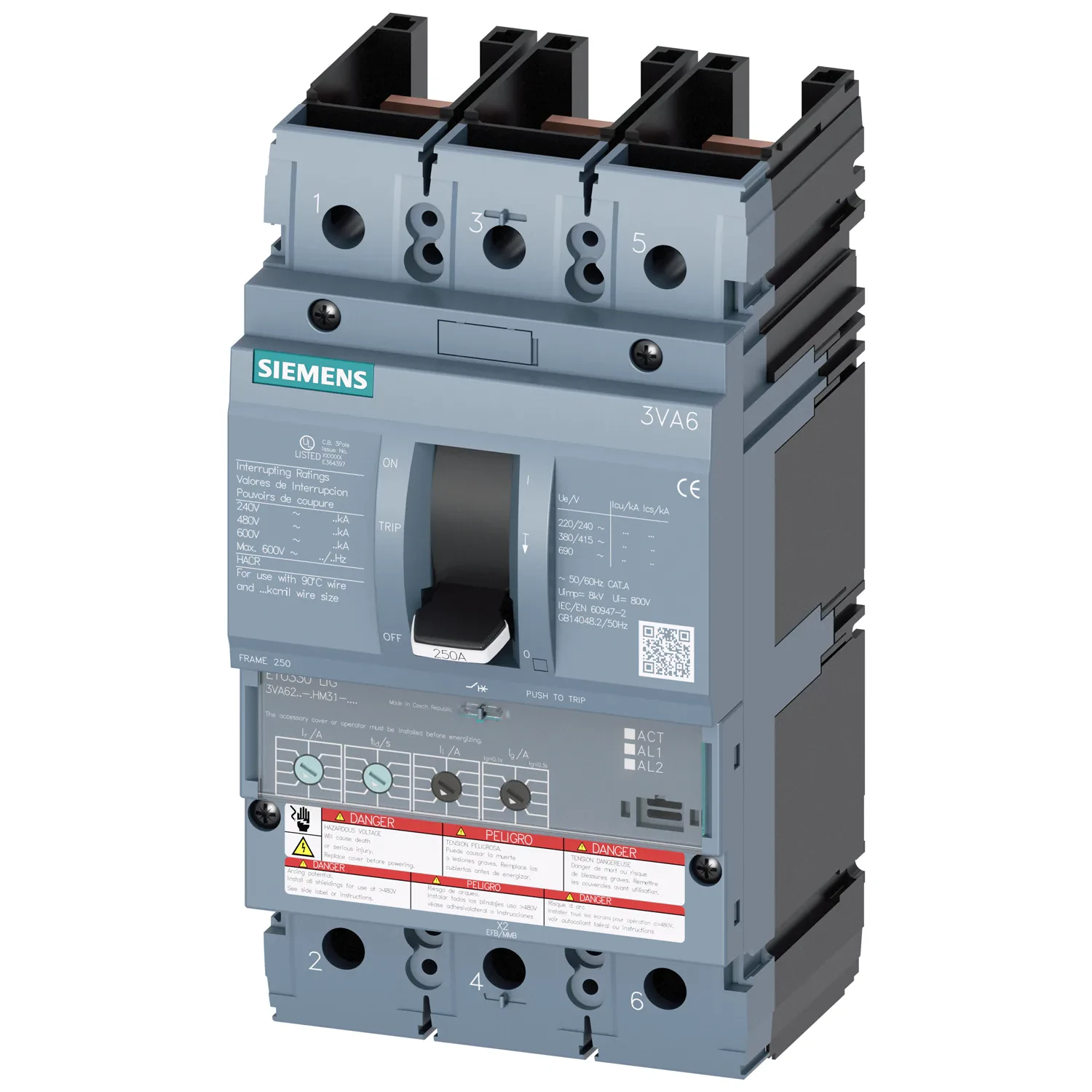

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA62 FRAME WITH MEDIUM HIGH (CLASS C) BREAKING CAPACITY. 250A 3-POLE (35KAICAT 600V) (100KAIC AT 480V). ETU330 TRIP UNIT LIG. SPECIAL FEATURES WITHOUT LUGS. 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 4.1 x 7.8 x 4.2.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

3VA6225-7HM31-2AA0

$5,750.87 / EA

manufacturer discounts
learn about discounts

  • $5,155.96 for $1,500.00+
  • $4,957.65 for $2,500.00+
  • $4,759.34 for $3,500.00+

In stock (0)
Lead time: over 7 days
may be longer on small orders

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA62 FRAME WITH MEDIUM HIGH (CLASS C) BREAKING CAPACITY. 250A 3-POLE (35KAICAT 600V) (100KAIC AT 480V). ETU330 TRIP UNIT LIG. SPECIAL FEATURES WITHOUT LUGS. 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 4.1 x 7.8 x 4.2.

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA62 FRAME WITH MEDIUM HIGH (CLASS C) BREAKING CAPACITY. 250A 3-POLE (35KAICAT 600V) (100KAIC AT 480V). ETU330 TRIP UNIT LIG. SPECIAL FEATURES WITHOUT LUGS. 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 4.1 x 7.8 x 4.2.

150

UPC
804766309458
UNSPSC
39121601
Country of Origin
CZ
Number Of Poles:
3
Type:
3VA6
Voltage Rating:
480 V
Connection:
punched copper bar without any lug
Current Rating:
250 A
Diken-export / tripping characteristics / Upper tolerance band:
AK_3VA6_2_250A_ETU320u330_MuHuCuL_oT
Frame:
250A
Height:
7.8 in
Interrupt Rating:
WITH 100kA INTERRUPTION RATING
Length:
4.13
N-Leiter Schutz / einstellbar:
Yes
N-Leiterschutz N / Einstellparameter Strom InN / Einheit der Werteliste:
Unit
N-Leiterschutz N / Einstellparameter Strom InN / Format der Werteliste:
xIn
N-leiter-schutz / Ein-/Ausschaltbar:
No
Number Of Poles:
3
Setting range / Earth fault function G / Delay time tG, tripped / I**2t (off) / Factor:
s
Setting range / Earth fault function G / Delay time tG, tripped / I**2t (off) / Factor of grading:
Unit
Setting range / Earth fault function G / Delay time tG, tripped / I**2t (off) / Grading:
0.1;0.3
Setting range / Earth fault function G / Ig-function can be switched on/off:
No
Setting range / Earth fault function G / Setting current IG, tripped / I**2t (off) / Factor:
xIn
Setting range / Earth fault function G / Setting current IG, tripped / I**2t (off) / Factor of grading:
Unit
Setting range / Earth fault function G / Setting current IG, tripped / I**2t (off) / Grading:
0.2;0.4;0.6;0.8;1
Setting range / Short-circuit function, instantaneous I / Setting current Ii / Factor:
xIn
Setting range / Short-circuit function, instantaneous I / Setting current Ii / Factor of grading:
Unit
Setting range / Short-circuit function, instantaneous I / Setting current Ii / Grading:
1.5;2;2.5;3;4;5;6;8;9;10
Setting range / ground fault function G / lg function selectable:
No
Standard:
UL
Sub Brand:
3VA
Trip Type:
ETU330 LIG ADJUSTMENT KNOB
Tripping characteristics / Lower tolerance band:
AK_3VA6_2_250A_ETU320u330_MuHuCuL_uT
Type:
3VA6
Voltage Rating:
480 V
Width:
4.21
i-trip unit / can be switched ON/OFF:
No
version / Overcurrent release / Adjustability / Short-circuit function, instantaneous I:
Yes
