Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$10,474.45 / EA
manufacturer discounts
learn about discounts
- $9,390.89 for $1,500.00+
- $9,029.70 for $2,500.00+
- $8,668.51 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

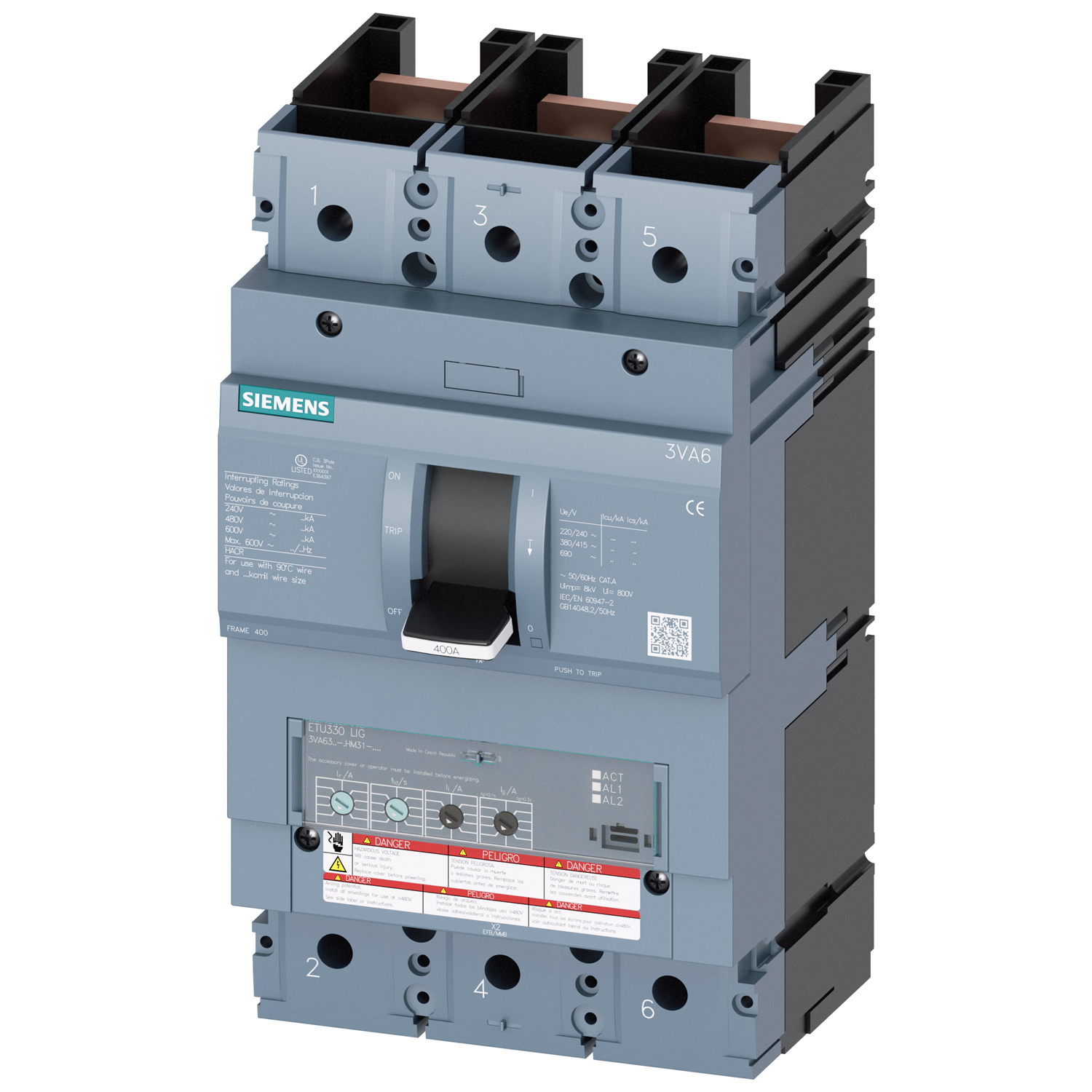

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA63 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 250A 3-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU330 TRIP UNIT LIG. SPECIAL FEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 5.4 x 9.8 x 5.4.
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA63 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 250A 3-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU330 TRIP UNIT LIG. SPECIAL FEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 5.4 x 9.8 x 5.4.
150
- UPC
- 804766313691
- UNSPSC
- 39121601
- Country of Origin
- CZ
- Number Of Poles:
- 3
- Type:
- 3VA6
- Voltage Rating:
- 480 V
- Adjustable pick-up value current / of the current-dependent overload release / initial value:
- 100
- Connection:
- punched copper bar without any lug
- Continuous current / rated value:
- 250
- Continuous current / rated value / maximum:
- 400.0A
- Current Rating:
- 250 A
- Design of the operating mechanism:
- togglehandle
- Design of the overcurrent release:
- ETU330
- Frame:
- 400A
- Ground fault monitoring version:
- SummationcurrentformationL-conductor
- Height:
- 248
- Insulation voltage / rated value:
- 600
- Interrupt Rating:
- WITH 150kA INTERRUPTION RATING
- Length:
- 5.43
- Number Of Poles:
- 3
- Operating current / at 40 °C / rated value:
- 250
- Operating current / at 45 °C / rated value:
- 250
- Operating current / at 50 °C / rated value:
- 250
- Operating current / at 65 °C / rated value:
- 250
- Operating current / at 70 °C / rated value:
- 250
- Operating voltage / at AC / at 50/60 Hz / rated value:
- 600
- Operational short-circuit current breaking capacity (Ics) / at 415 V / rated value:
- 150kA
- Overcurrent release / Protective functions:
- LIG
- Power loss [W] / for rated value of the current / at AC / in hot operating state / per pole:
- 9.1
- Product component / display:
- No
- Product extension / optional / motor drive:
- Yes
- Product feature / for neutral conductors / upgradeable/retrofittable / Short-circuit and overload proof:
- No
- Product function / Intrinsic device protection:
- Yes
- Protective function of the overcurrent release:
- LIG
- Standard:
- UL
- Sub Brand:
- 3VA
- Switching capacity class of the circuit breaker:
- L
- Trip Type:
- ETU330 LIG ADJUSTMENT KNOB
- Type:
- 3VA6
- Type of the driving mechanism / motor drive:
- No
- Voltage Rating:
- 480 V
- Width:
- 138
