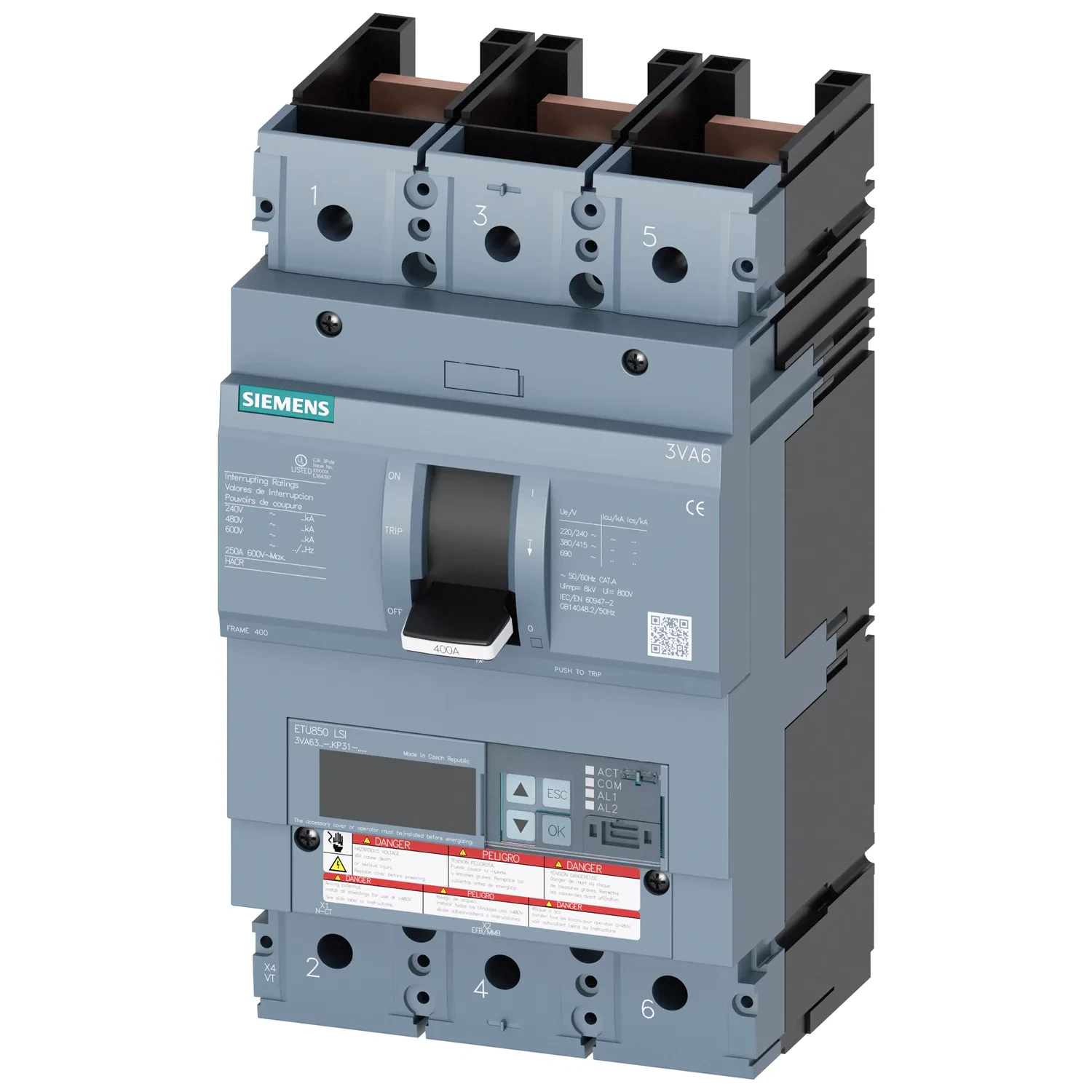

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA63 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 250A 3-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU850 TRIP UNIT LCD LSI WITH METERING. SPECIAL FEATURES WITHOUT LUGS. DIMENSIONS (W x H x D) IN 5.4 x 9.8 x 5.4.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

3VA6325-8KP31-0AA0

$10,879.00 / EA

manufacturer discounts
learn about discounts

  • $9,753.59 for $1,500.00+
  • $9,378.45 for $2,500.00+
  • $9,003.31 for $3,500.00+

In stock (0)
Lead time: over 7 days
may be longer on small orders

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA63 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 250A 3-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU850 TRIP UNIT LCD LSI WITH METERING. SPECIAL FEATURES WITHOUT LUGS. DIMENSIONS (W x H x D) IN 5.4 x 9.8 x 5.4.

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA63 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 250A 3-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU850 TRIP UNIT LCD LSI WITH METERING. SPECIAL FEATURES WITHOUT LUGS. DIMENSIONS (W x H x D) IN 5.4 x 9.8 x 5.4.

150

UPC
804766313462
UNSPSC
39121601
Country of Origin
CZ
Number Of Poles:
3
Type:
3VA6
Voltage Rating:
480 V
Adjustable delay time / of S-trip / with I2t characteristic / Full-scale value:
0.50s
Adjustable delay time / of S-trip / with I2t characteristic / initial value:
0.05s
Adjustable delay time / of S-trip / with standard characteristic / Full-scale value:
0.50s
Adjustable delay time / of S-trip / with standard characteristic / initial value:
0.05s
Adjustable pick-up value current / of instantaneous short-circuit trip unit / Full-scale value:
3000
Adjustable pick-up value current / of instantaneous short-circuit trip unit / initial value:
375
Adjustable pick-up value current / of the current-dependent overload release / Full-scale value:
250
Adjustable pick-up value current / of the current-dependent overload release / initial value:
100
Adjustable pick-up value current / of the short-time delayed short-circuit release / Full-scale value:
2500.00A
Adjustable pick-up value current / of the short-time delayed short-circuit release / initial value:
150.00A
Connection:
punched copper bar without any lug
Continuous current / rated value / maximum:
400.0A
Current Rating:
250 A
Frame:
400A
Ground fault monitoring version:
Without
Height:
248
Insulation voltage / rated value:
600
Interrupt Rating:
WITH 150kA INTERRUPTION RATING
Length:
5.43
Maximum short-circuit current breaking capacity (Icu) / at 240 V / rated value:
200
Maximum short-circuit current breaking capacity (Icu) / at 415 V / rated value:
150
Number Of Poles:
3
Operating current / at 65 °C / rated value:
250
Operating voltage / at AC / at 50/60 Hz / rated value:
600
Operational short-circuit current breaking capacity (Ics) / at 240 V / rated value:
200kA
Operational short-circuit current breaking capacity (Ics) / at 415 V / rated value:
150kA
Operational short-circuit current breaking capacity (Ics) / at 690 V / rated value:
5
Power loss [W] / for rated value of the current / at AC / in hot operating state / per pole:
9.1
Product feature / for neutral conductors / upgradeable/retrofittable / Short-circuit and overload proof:
Yes
Standard:
UL
Sub Brand:
3VA
Switching capacity class of the circuit breaker:
L
Trip Type:
ETU850 LSI LCD
Type:
3VA6
Voltage Rating:
480 V
Width:
138
