Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$12,395.93 / EA
manufacturer discounts
learn about discounts
- $11,113.60 for $1,500.00+
- $10,686.15 for $2,500.00+
- $10,258.70 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

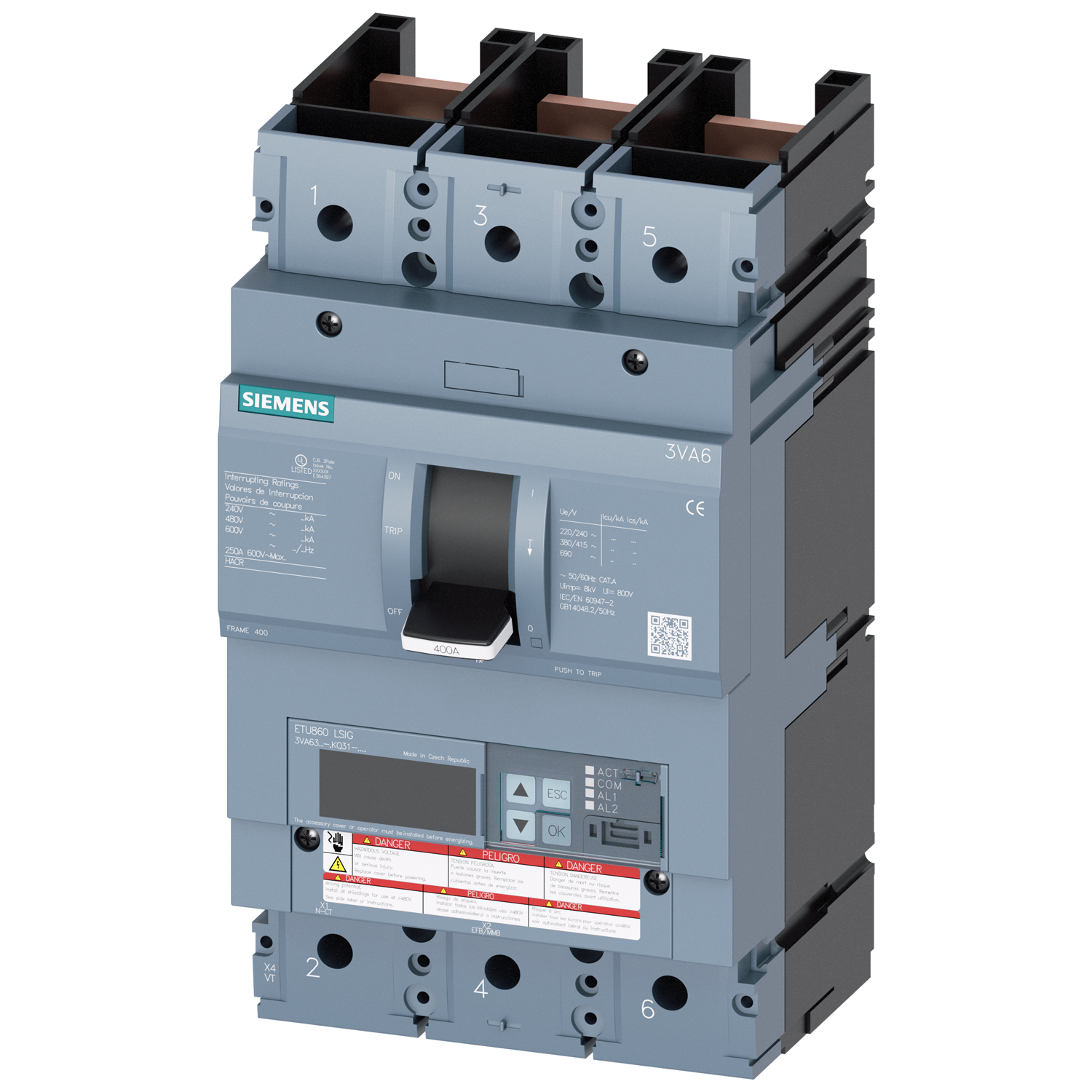

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA63 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 400A 3-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU860 TRIP UNIT LCD LSIG WITH METERING. SPECIALFEATURES WITHOUT LUGS. DIMENSIONS (W x H x D) IN 5.4 x 9.8 x 5.4.
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA63 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 400A 3-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU860 TRIP UNIT LCD LSIG WITH METERING. SPECIALFEATURES WITHOUT LUGS. DIMENSIONS (W x H x D) IN 5.4 x 9.8 x 5.4.
150
- UPC
- 804766312687
- UNSPSC
- 39121601
- Country of Origin
- CZ
- Number Of Poles:
- 3
- Type:
- 3VA6
- Voltage Rating:
- 480 V
- Certificate of suitability / as approval for NAVAL (no combat vessels) / Supplement SB:
- Yes
- Connection:
- punched copper bar without any lug
- Current Rating:
- 400A
- Design of the load switch / acc. to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type):
- Yes
- Design of the operating mechanism:
- togglehandle
- Design of the product:
- Systemprotection
- Electrical endurance (switching cycles) / at 600 V / at 50/60 Hz:
- 6000
- Frame:
- 400A
- Height:
- 248
- Interrupt Rating:
- WITH 150kA INTERRUPTION RATING
- Length:
- 5.43
- Marking / of circuit breaker / acc. to UL 489 / 100%-rated breaker:
- No
- Number Of Poles:
- 3
- Product designation:
- Molded-casecircuitbreaker
- Product designation / according to UL file:
- LJAE
- Product function / communication function:
- Yes
- Product function / other measurement function:
- Yes
- Protective function of the overcurrent release:
- LSIG
- Setting range / Overload function L / Delay time tR / I**2t characteristic curve / min:
- 0.5
- Setting range / Overload function L / Setting current IR / min:
- 0.4
- Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (off) / max:
- 0.5
- Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (off) / min:
- 0.05
- Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (on) / max:
- 0.5
- Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (on) / min:
- 0.05
- Setting range / Short-circuit function, short-time delay / Setting current IS / I**2t (on) / min:
- 0.6
- Setting range / Short-circuit function, short-time delay / Setting current IS / StandardI**2t / min:
- 0.6
- Simaris relevant:
- -
- Standard:
- UL
- Sub Brand:
- 3VA
- Suitability for use:
- systemprotection
- Trip Type:
- ETU860 LSIG LCD
- Type:
- 3VA6
- Voltage Rating:
- 480 V
- Width:
- 138
- circuit-breaker / Design:
- 3VA6
- product brand name:
- SENTRON
