SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH MEDIUM (CLASS M) BREAKING CAPACITY. 400A 3-POLE (18KAIC AT 600V) (35KAIC AT 480V). ETU330 TRIP UNIT LIG. SPECIAL FEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 5.4 x 9.8 x 5.4.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

3VA6440-5HM31-2AA0

$5,667.35 / EA

manufacturer discounts
learn about discounts

  • $5,081.08 for $1,500.00+
  • $4,885.65 for $2,500.00+
  • $4,690.22 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH MEDIUM (CLASS M) BREAKING CAPACITY. 400A 3-POLE (18KAIC AT 600V) (35KAIC AT 480V). ETU330 TRIP UNIT LIG. SPECIAL FEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 5.4 x 9.8 x 5.4.

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH MEDIUM (CLASS M) BREAKING CAPACITY. 400A 3-POLE (18KAIC AT 600V) (35KAIC AT 480V). ETU330 TRIP UNIT LIG. SPECIAL FEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 5.4 x 9.8 x 5.4.

150

UPC
804766317422
UNSPSC
39121601
Country of Origin
CZ
Number Of Poles:
3
Type:
3VA6
Voltage Rating:
480 V
Connection:
punched copper bar without any lug
Continuous current / rated value:
400
Continuous current / rated value / maximum:
600.0A
Current Rating:
400A
Design of the operating mechanism:
togglehandle
Design of the overcurrent release:
ETU330
Design of the product:
Systemprotection
Frame:
600A
Height:
248
Interrupt Rating:
WITH 35kA INTERRUPTION RATING
Length:
5.43
Number Of Poles:
3
Operating current / at 40 °C / rated value:
400
Operating current / at 45 °C / rated value:
400
Operating current / at 50 °C / rated value:
400
Operating current / at 70 °C / rated value:
400
Overcurrent release / Protective functions:
LIG
Product component / display:
No
Product designation:
Molded-casecircuitbreaker
Product designation / according to UL file:
MLAE
Product extension / optional / motor drive:
Yes
Product function / Intrinsic device protection:
Yes
Product function / communication function:
No
Product function / other measurement function:
No
Protective function of the overcurrent release:
LIG
Simaris relevant:
-
Standard:
UL
Sub Brand:
3VA
Suitability for use:
systemprotection
Trip Type:
ETU330 LIG ADJUSTMENT KNOB
Type:
3VA6
Type of the driving mechanism / motor drive:
No
Voltage Rating:
480 V
Width:
138
circuit-breaker / Design:
3VA6
product brand name:
SENTRON

Recently Viewed

  • placeholder image

    3VA6440-5HM31-2AA0

    SIEMENS INDUSTRY, INC.
    SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH MEDIUM (CLASS M) BREAKING CAPACITY. 400A 3-POLE (18...
    See more details
  • placeholder image

    KRBT-380-

    THE LIGHTING DIVISION
    Unfortunately, we do not have a description available for KRBT-380-. Please call (800) 462-7733 See more details
  • placeholder image

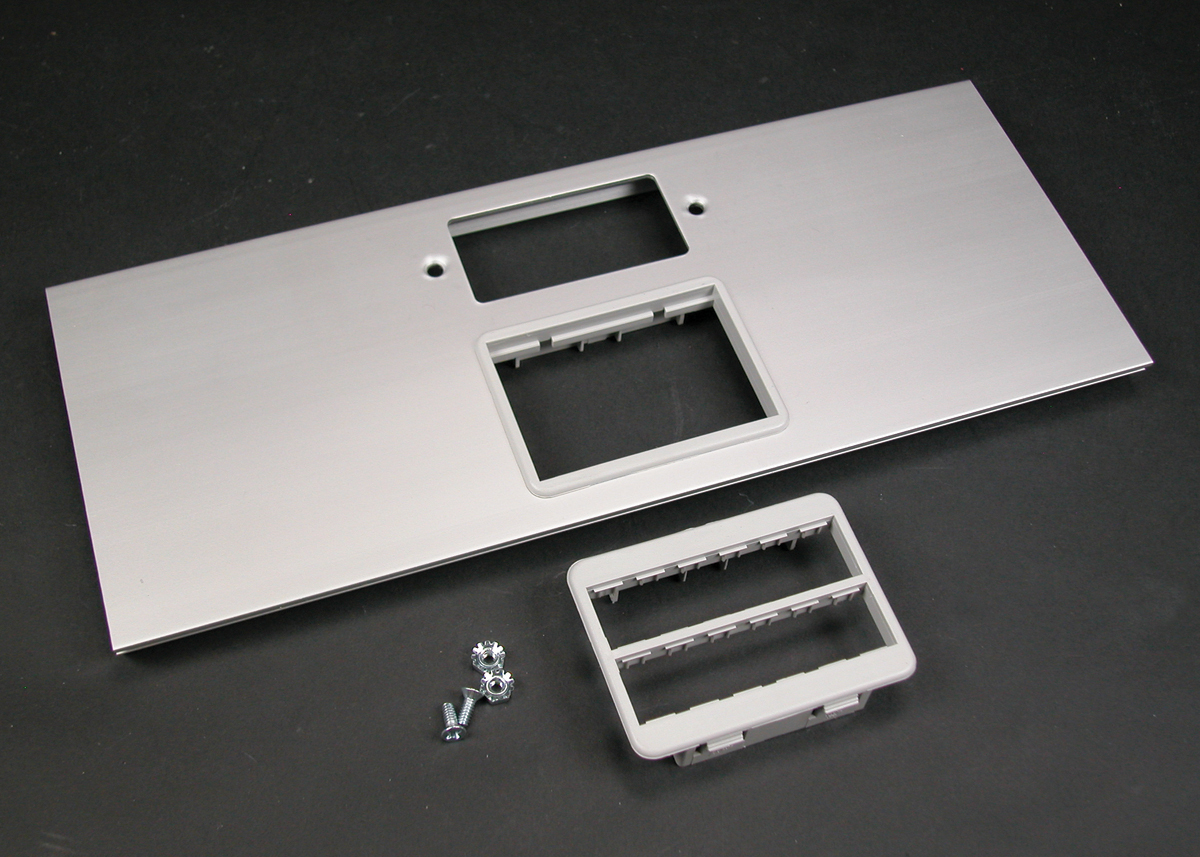

    WM AL5256-GMABRT
