Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$8,318.59 / EA
manufacturer discounts
learn about discounts
- $7,458.05 for $1,500.00+
- $7,171.20 for $2,500.00+
- $6,884.35 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH MEDIUM (CLASS M) BREAKING CAPACITY. 400A 4-POLE (18KAIC AT 600V) (35KAIC AT 480V). ETU820 TRIP UNIT LCD LI WITH METERING. SPECIAL FEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 7.2 x 9.8 x 5.4.
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH MEDIUM (CLASS M) BREAKING CAPACITY. 400A 4-POLE (18KAIC AT 600V) (35KAIC AT 480V). ETU820 TRIP UNIT LCD LI WITH METERING. SPECIAL FEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 7.2 x 9.8 x 5.4.
150
- UPC
- 804766317248
- UNSPSC
- 39121601
- Country of Origin
- CZ
- Number Of Poles:
- 4
- Type:
- 3VA6
- Voltage Rating:
- 480 V
- Adjustable pick-up value current / of instantaneous short-circuit trip unit / Full-scale value:
- 4800
- Adjustable pick-up value current / of instantaneous short-circuit trip unit / initial value:
- 600
- Adjustable pick-up value current / of the current-dependent overload release / Full-scale value:
- 400
- Adjustable pick-up value current / of the current-dependent overload release / initial value:
- 150
- Ambient temperature / during operation / maximum:
- 70
- Ambient temperature / during operation / minimum:
- -25
- Ambient temperature / during storage / maximum:
- 80
- Arrangement of electrical connectors / for main current circuit:
- Withoutconnection
- Connection:
- punched copper bar without any lug
- Current Rating:
- 400A
- Frame:
- 600A
- Height:
- 248
- Interrupt Rating:
- WITH 35kA INTERRUPTION RATING
- Length:
- 7.24
- Maximum short-circuit current breaking capacity (Icu) / at 240 V / rated value:
- 85
- Maximum short-circuit current breaking capacity (Icu) / at 415 V / rated value:
- 55
- Mounting type:
- fixedmounting
- Number Of Poles:
- 4
- Operational short-circuit current breaking capacity (Ics) / at 240 V / rated value:
- 85kA
- Operational short-circuit current breaking capacity (Ics) / at 415 V / rated value:
- 55kA
- Operational short-circuit current breaking capacity (Ics) / at 690 V / rated value:
- 6
- Product variations:
- Advancedapplications
- Protection class IP:
- IP40
- Protection class IP / on the front:
- IP40
- Reference code / acc. to DIN EN 61346-2:
- Q
- Setting range / Overload function L / IR can be switched on:
- No
- Standard:
- UL
- Sub Brand:
- 3VA
- Trip Type:
- ETU820 LI LCD
- Type:
- 3VA6
- Type of electrical connection / for main current circuit:
- Without
- Voltage Rating:
- 480 V
- Width:
- 184
Recently Viewed
-
3VA6440-5KL41-2AA0
SIEMENS INDUSTRY, INC.
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH MEDIUM (CLASS M) BREAKING CAPACITY. 400A 4-POLE (18...
See more details -
3SE51300AA001AG0
SIEMENS INDUSTRY, INC.

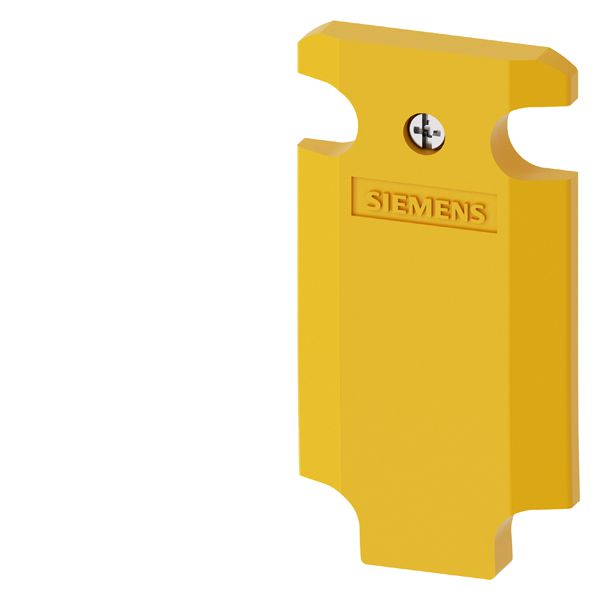

Cover yellow for position switch Plastic 3SE513 Enclosure according to EN N50041
