Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$8,966.39 / EA
manufacturer discounts
learn about discounts
- $8,038.84 for $1,500.00+
- $7,729.65 for $2,500.00+
- $7,420.46 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

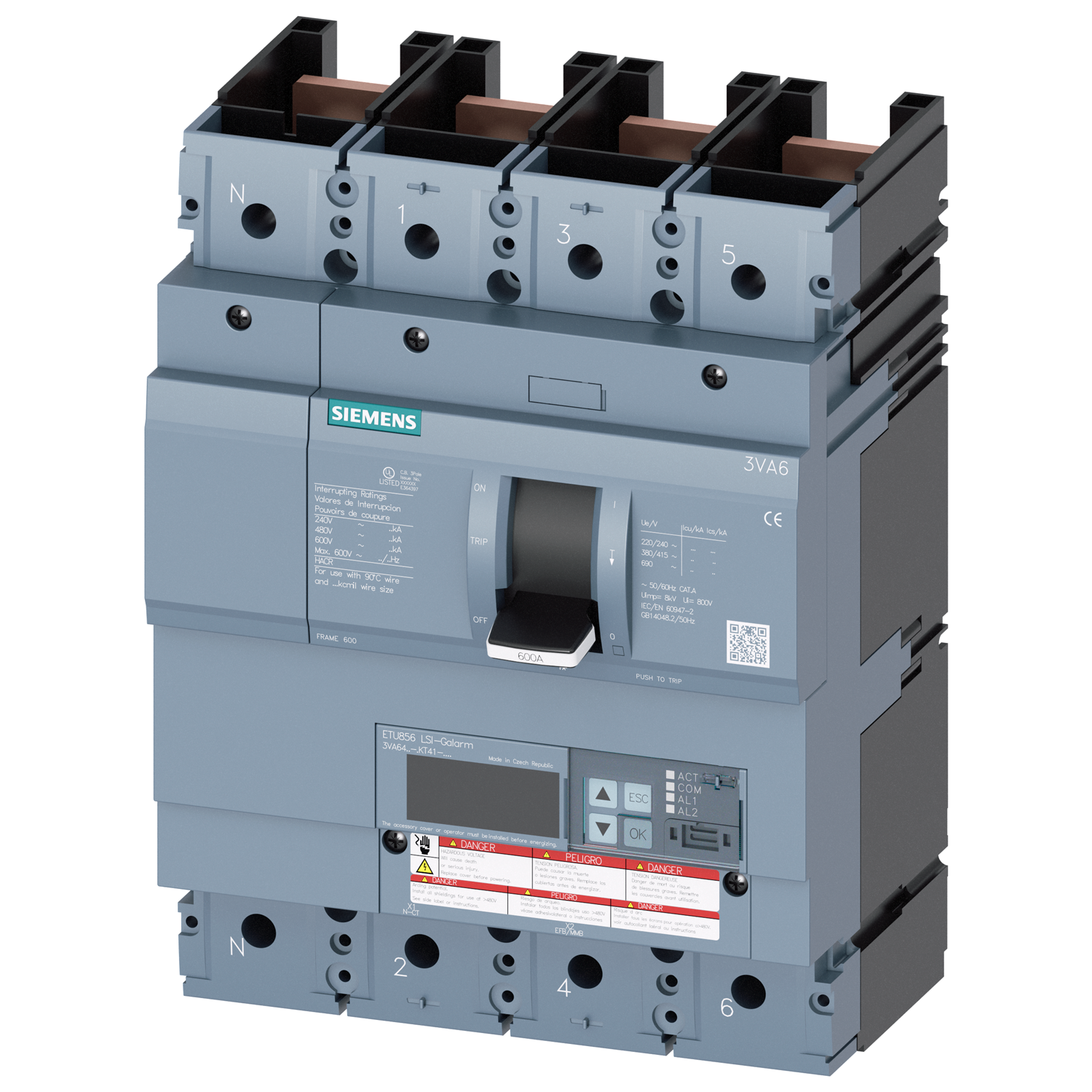

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH MEDIUM (CLASS M) BREAKING CAPACITY. 400A 4-POLE (18KAIC AT 600V) (35KAIC AT 480V). ETU856 TRIP UNIT LCD LSI GROUNG ALARM WITH METERING. SPECIAL FEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 7.2 x 9.8x 5.4.
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH MEDIUM (CLASS M) BREAKING CAPACITY. 400A 4-POLE (18KAIC AT 600V) (35KAIC AT 480V). ETU856 TRIP UNIT LCD LSI GROUNG ALARM WITH METERING. SPECIAL FEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 7.2 x 9.8x 5.4.
150
- UPC
- 804766317927
- UNSPSC
- 39121601
- Country of Origin
- CZ
- Number Of Poles:
- 4
- Type:
- 3VA6
- Voltage Rating:
- 480 V
- Connection:
- punched copper bar without any lug
- Continuous current / rated value:
- 400
- Continuous current / rated value / maximum:
- 600.0A
- Current Rating:
- 400A
- Frame:
- 600A
- Ground fault monitoring version:
- Without
- Height:
- 248
- Insulation voltage / rated value:
- 600
- Interrupt Rating:
- WITH 35kA INTERRUPTION RATING
- Length:
- 7.24
- Number Of Poles:
- 4
- Operating current / at 40 °C / rated value:
- 400
- Operating current / at 45 °C / rated value:
- 400
- Operating current / at 50 °C / rated value:
- 400
- Operating current / at 70 °C / rated value:
- 400
- Operating voltage / at AC / at 50/60 Hz / rated value:
- 600
- Overcurrent release / Protective functions:
- LSIN
- Product extension / optional / motor drive:
- Yes
- Product feature / for neutral conductors / upgradeable/retrofittable / Short-circuit and overload proof:
- No
- Product function / Intrinsic device protection:
- Yes
- Setting range / Overload function L / Delay time tR / I**2t characteristic curve / min:
- 0.5
- Setting range / Overload function L / Setting current IR / min:
- 0.4
- Setting range / Short-circuit function, instantaneous I / Setting current Ii / minimum:
- 1.5
- Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (off) / max:
- 0.5
- Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (off) / min:
- 0.05
- Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (on) / max:
- 0.5
- Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (on) / min:
- 0.05
- Setting range / Short-circuit function, short-time delay / Setting current IS / I**2t (on) / min:
- 0.6
- Setting range / Short-circuit function, short-time delay / Setting current IS / StandardI**2t / min:
- 0.6
- Standard:
- UL
- Sub Brand:
- 3VA
- Trip Type:
- ETU856 LSI(G) LCD
- Type:
- 3VA6
- Type of the driving mechanism / motor drive:
- No
- Voltage Rating:
- 480 V
- Width:
- 184
