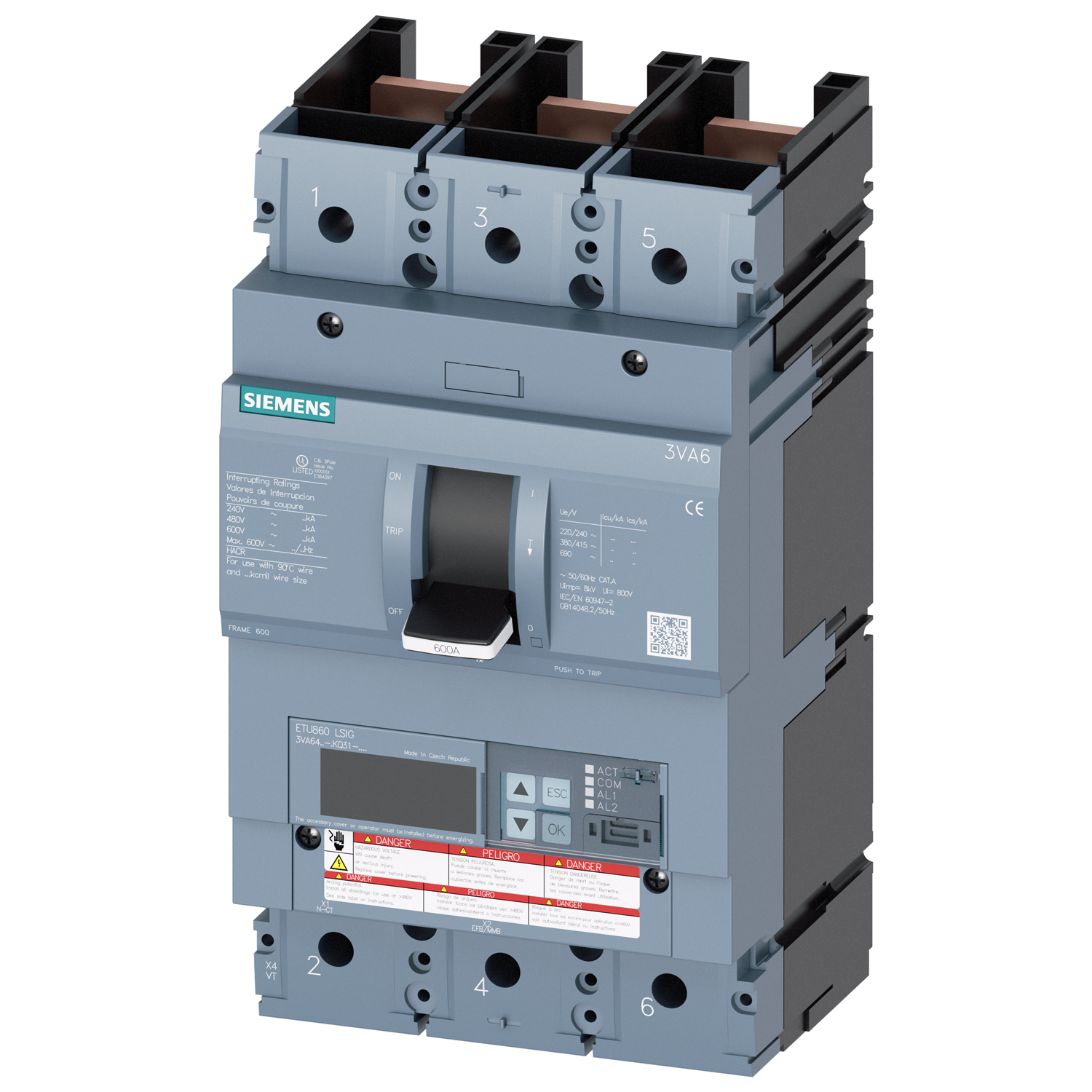

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 400A 3-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU860 TRIP UNIT LCD LSIG WITH METERING. SPECIALFEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 5.4 x 9.8 x 5.4.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

3VA6440-8KQ31-2AA0

$17,097.59 / EA

manufacturer discounts
learn about discounts

  • $15,328.87 for $1,500.00+
  • $14,739.30 for $2,500.00+
  • $14,149.73 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 400A 3-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU860 TRIP UNIT LCD LSIG WITH METERING. SPECIALFEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 5.4 x 9.8 x 5.4.

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 400A 3-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU860 TRIP UNIT LCD LSIG WITH METERING. SPECIALFEATURES WITHOUT LUGS 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 5.4 x 9.8 x 5.4.

150

UPC
804766316067
UNSPSC
39121601
Country of Origin
CZ
Number Of Poles:
3
Type:
3VA6
Voltage Rating:
480 V
Connection:
punched copper bar without any lug
Current Rating:
400A
Frame:
600A
Height:
248
Interrupt Rating:
WITH 150kA INTERRUPTION RATING
Length:
5.43
Number Of Poles:
3
Setting range / Earth fault function G / Delay time tG, tripped / I**2t (off) / Factor:
s
Setting range / Earth fault function G / Delay time tG, tripped / I**2t (off) / Factor of grading:
Settingtable
Setting range / Earth fault function G / Delay time tG, tripped / I**2t (off) / Grading:
0.05-0.8;0.01
Setting range / Earth fault function G / Ig-function can be switched on/off:
Yes
Setting range / Earth fault function G / Setting current IG, tripped / I**2t (off) / Factor:
xIn
Setting range / Earth fault function G / Setting current IG, tripped / I**2t (off) / Factor of grading:
Unit
Setting range / Earth fault function G / Setting current IG, tripped / I**2t (off) / Grading:
0.2-1;0
Setting range / Earth fault function G / Setting current IG, tripped / I**2t (on) / Factor:
xIn
Setting range / Earth fault function G / Setting current IG, tripped / I**2t (on) / Factor of grading:
Unit
Setting range / Short-circuit function, instantaneous I / Setting current Ii / Factor:
xIn
Setting range / Short-circuit function, instantaneous I / Setting current Ii / Factor of grading:
Unit
Setting range / Short-circuit function, instantaneous I / Setting current Ii / Grading:
1.5-12;0
Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (off) / Factor:
s
Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (off) / Factor of grading:
Settingtable
Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (off) / Grading:
0.05-0.5;0.01
Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (on) / Factor:
s
Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (on) / Grading:
0.05-0.5;0.01
Setting range / Short-circuit function, short-time delay / Setting current IS / I**2t (on) / Factor:
xIn
Setting range / Short-circuit function, short-time delay / Setting current IS / I**2t (on) / Factor of grading:
Unit
Setting range / Short-circuit function, short-time delay / Setting current IS / I**2t (on) / Grading:
0.6-10;0
Setting range / ground fault function G / lg function selectable:
Yes
Standard:
UL
Sub Brand:
3VA
Trip Type:
ETU860 LSIG LCD
Type:
3VA6
Voltage Rating:
480 V
Width:
138
i-trip unit / can be switched ON/OFF:
No
version / Overcurrent release / Adjustability / Short-circuit function, instantaneous I:
Yes
