Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$10,759.46 / EA
manufacturer discounts
learn about discounts
- $9,646.42 for $1,500.00+
- $9,275.40 for $2,500.00+
- $8,904.38 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

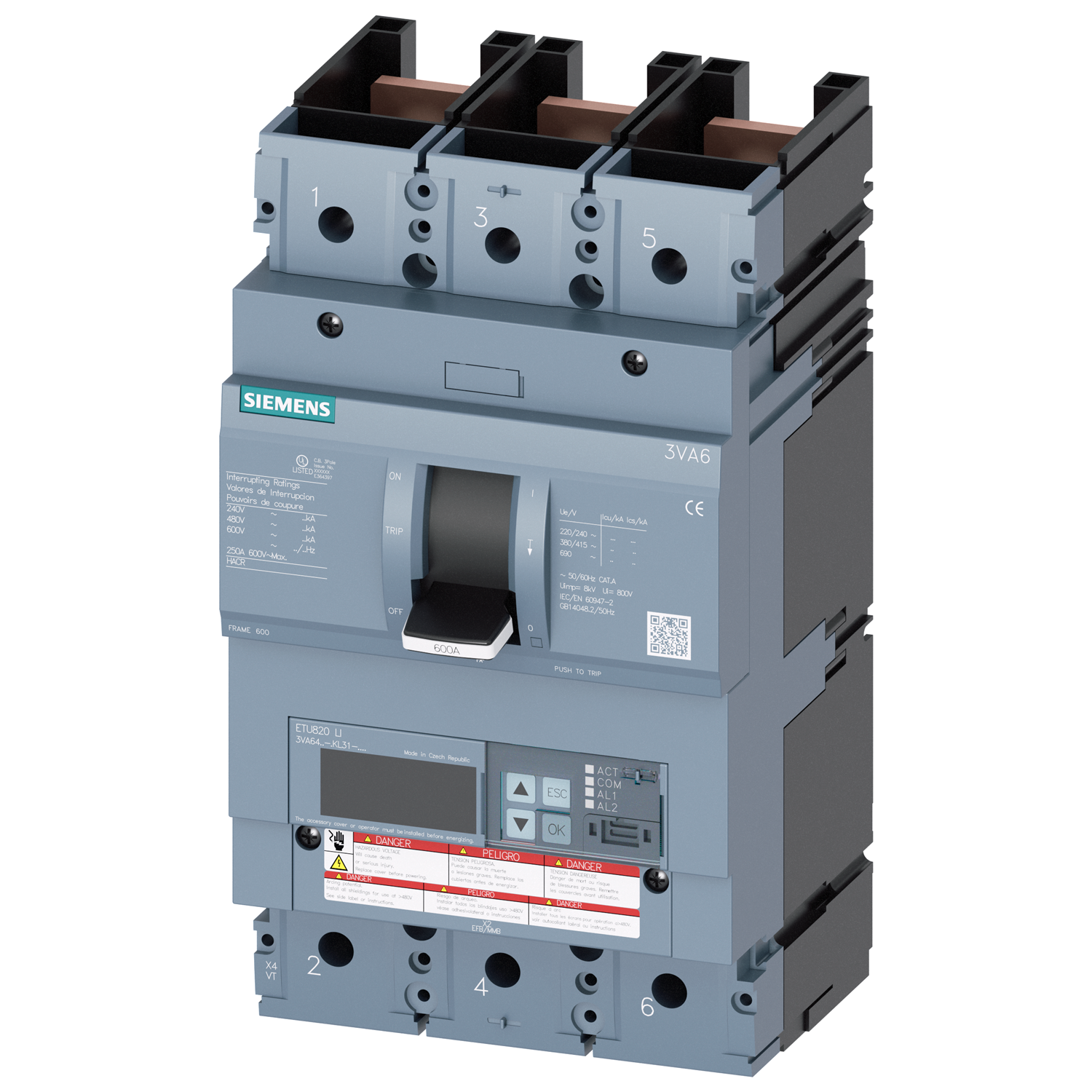

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH VERY HIGH (CLASS C) BREAKING CAPACITY. 600A 3-POLE (35KAIC AT 600V) (100KAIC AT 480V). ETU820 TRIP UNIT LCD LI WITH METERING. SPECIAL FEATURES WITHOUT LUGS. DIMENSIONS (W x H x D) IN 5.4 x 9.8 x 5.4.
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH VERY HIGH (CLASS C) BREAKING CAPACITY. 600A 3-POLE (35KAIC AT 600V) (100KAIC AT 480V). ETU820 TRIP UNIT LCD LI WITH METERING. SPECIAL FEATURES WITHOUT LUGS. DIMENSIONS (W x H x D) IN 5.4 x 9.8 x 5.4.
150
- UPC
- 804766315572
- UNSPSC
- 39121601
- Country of Origin
- CZ
- Number Of Poles:
- 3
- Type:
- 3VA6
- Voltage Rating:
- 480 V
- Connection:
- punched copper bar without any lug
- Continuous current / rated value:
- 600
- Continuous current / rated value / maximum:
- 600.0A
- Current Rating:
- 600A
- Design of the operating mechanism:
- togglehandle
- Design of the overcurrent release:
- ETU820
- Design of the product:
- Systemprotection
- Frame:
- 600A
- Height:
- 248
- Interrupt Rating:
- WITH 100kA INTERRUPTION RATING
- Length:
- 5.43
- Number Of Poles:
- 3
- Operating current / at 40 °C / rated value:
- 600
- Operating current / at 45 °C / rated value:
- 600
- Operating current / at 50 °C / rated value:
- 570
- Operating current / at 70 °C / rated value:
- 450
- Overcurrent release / Protective functions:
- LI
- Product component / display:
- Yes
- Product designation:
- Molded-casecircuitbreaker
- Product designation / according to UL file:
- CLAE
- Product extension / optional / motor drive:
- Yes
- Product function / Intrinsic device protection:
- Yes
- Product function / communication function:
- Yes
- Product function / other measurement function:
- Yes
- Protective function of the overcurrent release:
- LI
- Simaris relevant:
- -
- Standard:
- UL
- Sub Brand:
- 3VA
- Suitability for use:
- systemprotection
- Trip Type:
- ETU820 LI LCD
- Type:
- 3VA6
- Type of the driving mechanism / motor drive:
- No
- Voltage Rating:
- 480 V
- Width:
- 138
- circuit-breaker / Design:
- 3VA6
- product brand name:
- SENTRON
