Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$13,877.37 / EA
manufacturer discounts
learn about discounts
- $12,441.78 for $1,500.00+
- $11,963.25 for $2,500.00+
- $11,484.72 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

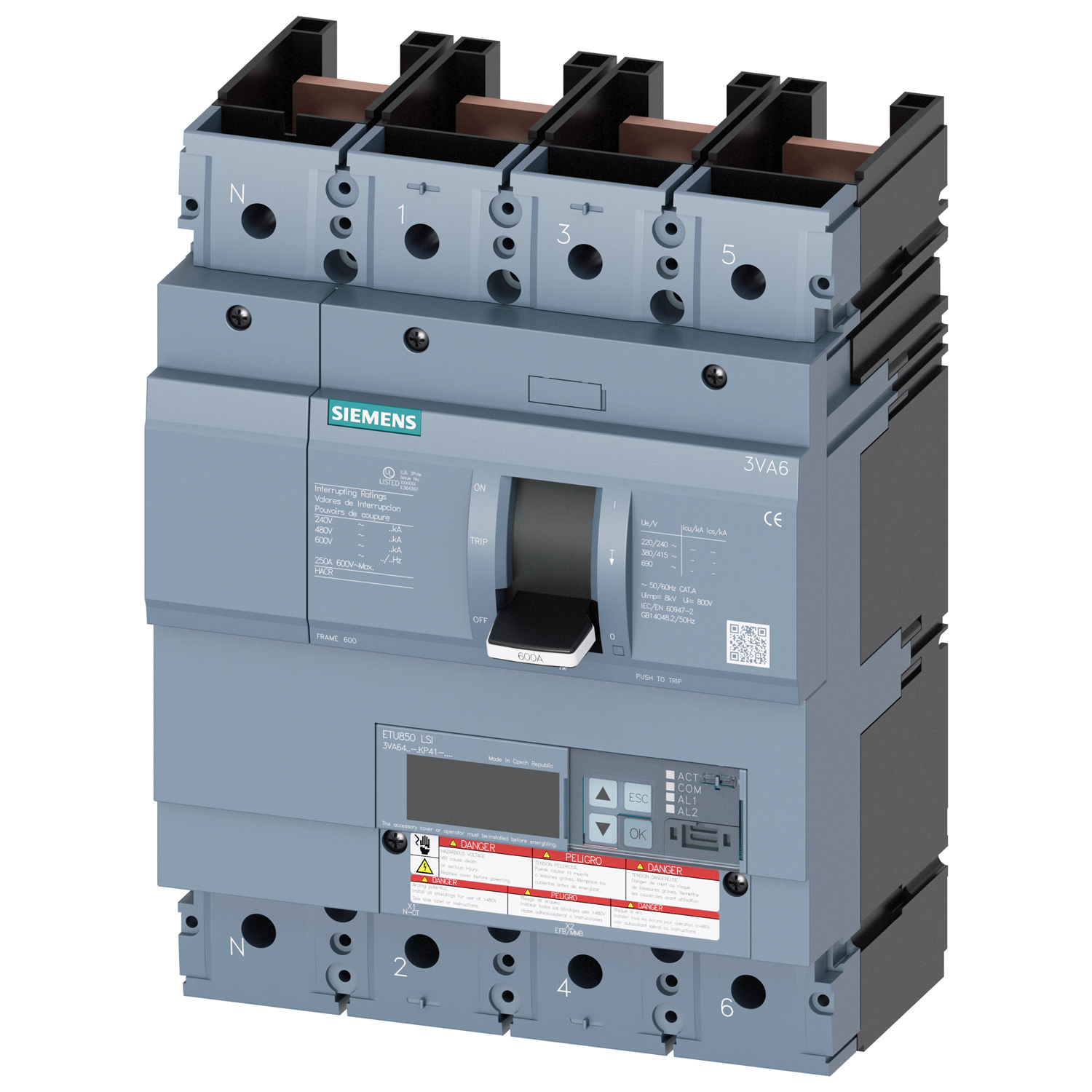

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH VERY HIGH (CLASS C) BREAKING CAPACITY. 600A 4-POLE (35KAIC AT 600V) (100KAIC AT 480V). ETU850 TRIP UNIT LCD LSI WITH METERING. SPECIAL FEATURES WITHOUT LUGS. DIMENSIONS (W x H x D) IN 7.2 x 9.8 x 5.4.
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH VERY HIGH (CLASS C) BREAKING CAPACITY. 600A 4-POLE (35KAIC AT 600V) (100KAIC AT 480V). ETU850 TRIP UNIT LCD LSI WITH METERING. SPECIAL FEATURES WITHOUT LUGS. DIMENSIONS (W x H x D) IN 7.2 x 9.8 x 5.4.
150
- UPC
- 804766315527
- UNSPSC
- 39121601
- Country of Origin
- CZ
- Number Of Poles:
- 4
- Type:
- 3VA6
- Voltage Rating:
- 480 V
- Connection:
- punched copper bar without any lug
- Current Rating:
- 600A
- Frame:
- 600A
- Height:
- 248
- Interrupt Rating:
- WITH 100kA INTERRUPTION RATING
- Length:
- 7.24
- Number Of Poles:
- 4
- Setting range / Overload function L / Delay time tR / I**2t characteristic curve / Factor:
- s
- Setting range / Overload function L / Delay time tR / I**2t characteristic curve / Factor of grading:
- Settingtable
- Setting range / Overload function L / Delay time tR / I**2t characteristic curve / Grading:
- 0.5-15;0.1
- Setting range / Overload function L / I**4tI**2t can be changed over:
- No
- Setting range / Overload function L / Setting current IR / Factor:
- xIn
- Setting range / Overload function L / Setting current IR / Factor of grading:
- Unit
- Setting range / Overload function L / Setting current IR / Grading:
- 0.4-1;0
- Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (off) / Factor:
- s
- Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (off) / Factor of grading:
- Settingtable
- Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (off) / Grading:
- 0.05-0.5;0.01
- Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (on) / Factor:
- s
- Setting range / Short-circuit function, short-time delay / Delay time tsd / I**2t (on) / Factor of grading:
- Settingtable
- Setting range / Short-circuit function, short-time delay / Setting current IS / I**2t (on) / Factor:
- xIn
- Setting range / Short-circuit function, short-time delay / Setting current IS / I**2t (on) / Factor of grading:
- Unit
- Setting range / Short-circuit function, short-time delay / Setting current IS / I**2t (on) / Grading:
- 0.6-9;0
- Setting range / Short-circuit function, short-time delay / Setting current IS / StandardI**2t / Factor:
- xIn
- Setting range / Short-circuit function, short-time delay / Setting current IS / StandardI**2t / Factor of grading:
- Unit
- Setting range / Short-circuit function, short-time delay / Setting current IS / StandardI**2t / Grading:
- 0.6-9;0
- Setting range / Short-circuit function, short-time delay / Setting current IS / StandardI**2t / can be switched on/off:
- Yes
- Short-circuit current making capacity (Icm) / at 240 V / rated value:
- 330kA
- Standard:
- UL
- Sub Brand:
- 3VA
- Trip Type:
- ETU850 LSI LCD
- Trip class / of the L-trip / with I2t characteristic / Full-scale value:
- 15
- Trip class / of the L-trip / with I2t characteristic / initial value:
- 0.5
- Type:
- 3VA6
- Voltage Rating:
- 480 V
- Width:
- 184
- version / Overcurrent release / Adjustability / Overload function L:
- Yes
