$14,900.49 / EA
manufacturer discounts
learn about discounts
- $13,359.06 for $1,500.00+
- $12,845.25 for $2,500.00+
- $12,331.44 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

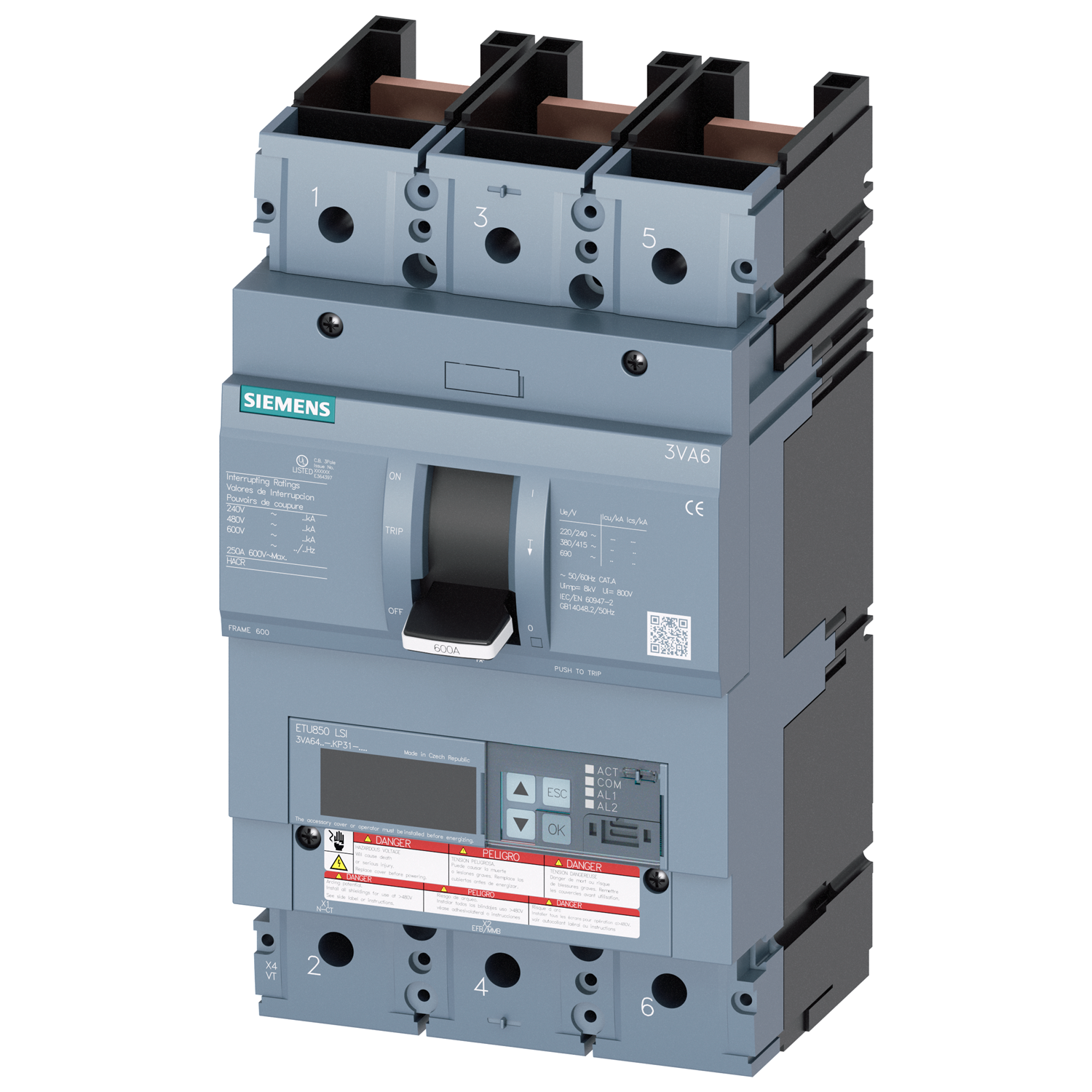

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 600A 3-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU850 TRIP UNIT LCD LSI WITH METERING. SPECIAL FEATURES WITHOUT LUGS. DIMENSIONS (W x H x D) IN 5.4 x 9.8 x 5.4.
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 600A 3-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU850 TRIP UNIT LCD LSI WITH METERING. SPECIAL FEATURES WITHOUT LUGS. DIMENSIONS (W x H x D) IN 5.4 x 9.8 x 5.4.
150
- UPC
- 804766315350
- UNSPSC
- 39121601
- Country of Origin
- CZ
- Number Of Poles:
- 3
- Type:
- 3VA6
- Voltage Rating:
- 480 V
- Ambient temperature / during operation / maximum:
- 70
- Ambient temperature / during operation / minimum:
- -25
- Ambient temperature / during storage / maximum:
- 80
- Arrangement of electrical connectors / for main current circuit:
- Withoutconnection
- Connection:
- punched copper bar without any lug
- Current Rating:
- 600A
- Electrical endurance (switching cycles) / at AC-1 / at 380/415 V / at 50/60 Hz:
- 4000
- Electrical endurance (switching cycles) / at AC-1 / at 690 V / at 50/60 Hz:
- 2500
- Frame:
- 600A
- Height:
- 248
- Interrupt Rating:
- WITH 150kA INTERRUPTION RATING
- Length:
- 5.43
- Mechanical service life (switching cycles) / typical:
- 15000
- Number Of Poles:
- 3
- Product variations:
- Advancedapplications
- Protection class IP:
- IP40
- Protection class IP / on the front:
- IP40
- Reference code / acc. to DIN EN 61346-2:
- Q
- Reference code / acc. to DIN EN 81346-2:
- Q
- Setting range / Overload function L / I**4tI**2t can be changed over:
- No
- Setting range / Overload function L / Setting current IR / Factor:
- xIn
- Setting range / Overload function L / Setting current IR / Factor of grading:
- Unit
- Setting range / Overload function L / Setting current IR / Grading:
- 0.4-1;0
- Short-circuit current making capacity (Icm) / at 240 V / rated value:
- 440kA
- Short-circuit current making capacity (Icm) / at 415 V / rated value:
- 330kA
- Standard:
- UL
- Sub Brand:
- 3VA
- Trip Type:
- ETU850 LSI LCD
- Type:
- 3VA6
- Type of electrical connection / for main current circuit:
- Without
- Voltage Rating:
- 480 V
- Width:
- 138
- version / Overcurrent release / Adjustability / Overload function L:
- Yes
