Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$19,363.07 / EA
manufacturer discounts
learn about discounts
- $17,359.99 for $1,500.00+
- $16,692.30 for $2,500.00+
- $16,024.61 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

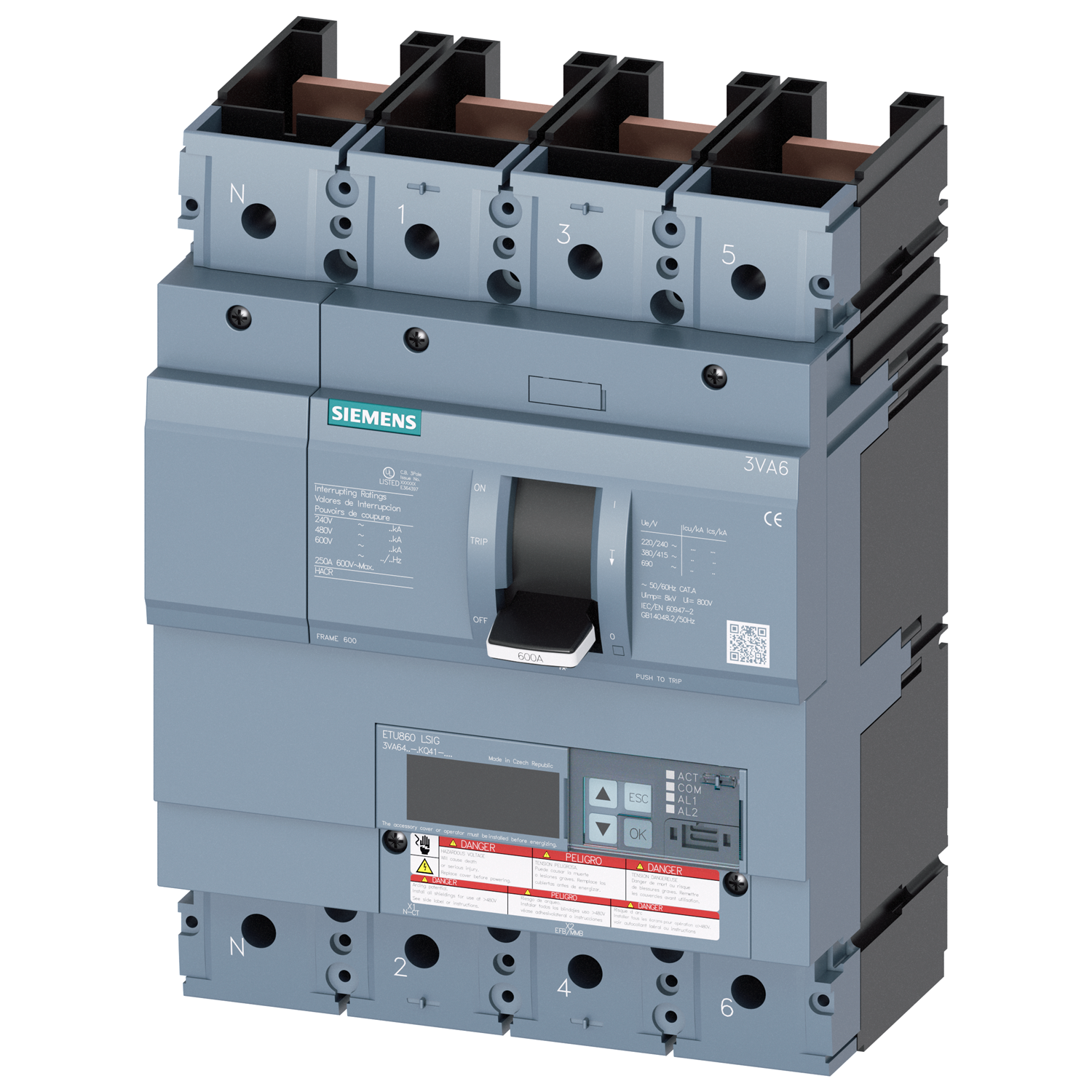

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 600A 4-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU860 TRIP UNIT LCD LSIG WITH METERING. SPECIALFEATURES WITHOUT LUGS. DIMENSIONS (W x H x D) IN 7.2 x 9.8 x 5.4.
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 600A 4-POLE (50KAIC AT 600V) (150KAIC AT 480V). ETU860 TRIP UNIT LCD LSIG WITH METERING. SPECIALFEATURES WITHOUT LUGS. DIMENSIONS (W x H x D) IN 7.2 x 9.8 x 5.4.
150
- UPC
- 804766315329
- UNSPSC
- 39121601
- Country of Origin
- CZ
- Number Of Poles:
- 4
- Type:
- 3VA6
- Voltage Rating:
- 480 V
- Breaking capacity current / at AC / at 240 V / acc. to UL 489 / rated value:
- 200
- Breaking capacity current / at AC / at 480 V / acc. to UL 489 / rated value:
- 150
- Breaking capacity current / at AC / at 600 V / acc. to UL 489 / rated value:
- 50
- Certificate of suitability / as approval for NAVAL (no combat vessels) / Supplement SB:
- Yes
- Connection:
- punched copper bar without any lug
- Current Rating:
- 600A
- Depth [in]:
- 4.3
- Design of the load switch / acc. to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type):
- Yes
- Electrical endurance (switching cycles) / at 480 V / at 50/60 Hz:
- 4000
- Electrical endurance (switching cycles) / at 600 V / at 50/60 Hz:
- 3000
- Frame:
- 600A
- Height:
- 248
- Height [in]:
- 9.8
- Interrupt Rating:
- WITH 150kA INTERRUPTION RATING
- Length:
- 7.24
- Marking / of circuit breaker / acc. to UL 489 / 100%-rated breaker:
- No
- Maximum short-circuit current breaking capacity (Icu) / at 690 V / rated value:
- 6
- Number Of Poles:
- 4
- Operating current / at 55 °C / rated value:
- 540
- Operating current / at 60 °C / rated value:
- 510
- Setting range / Earth fault function G / Setting current IG, tripped / I**2t (off) / max:
- 1
- Setting range / Earth fault function G / Setting current IG, tripped / I**2t (on) / max:
- 1
- Setting range / Overload function L / Delay time tR / I**2t characteristic curve / max:
- 15
- Setting range / Overload function L / Delay time tR / I**2t characteristic curve / min:
- 0.5
- Setting range / Overload function L / Setting current IR / max:
- 1
- Setting range / Overload function L / Setting current IR / min:
- 0.4
- Setting range / Short-circuit function, instantaneous I / Setting current Ii / max:
- 9
- Setting range / Short-circuit function, short-time delay / Setting current IS / StandardI**2t / max:
- 9
- Setting range / Short-circuit function, short-time delay / Setting current IS / StandardI**2t / min:
- 0.6
- Standard:
- UL
- Sub Brand:
- 3VA
- Trip Type:
- ETU860 LSIG LCD
- Type:
- 3VA6
- Voltage Rating:
- 480 V
- Width:
- 184
- Width [in]:
- 7.2
