Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$134.08 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

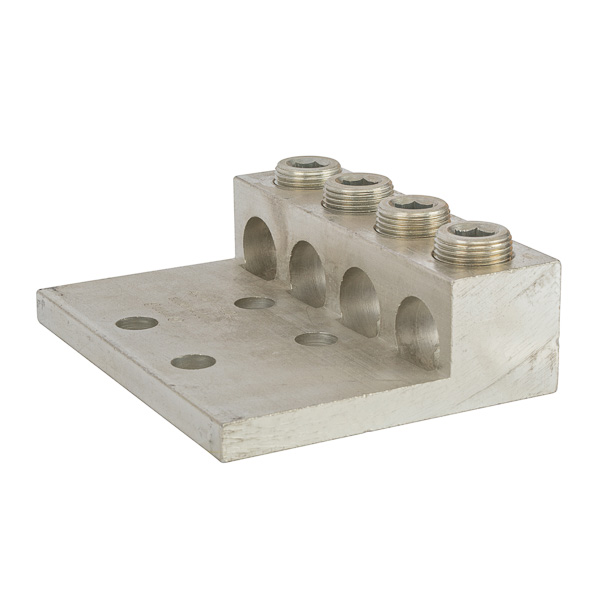

4 Port Panelboard Lug 1000 MCM - 500 MCM Large size set screw connectors with multiple mounting holes for a secure, turn-prevent connection. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. For use with copper or aluminum conductors. 600V (2000V max, per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.75".
4 Port Panelboard Lug 1000 MCM - 500 MCM Large size set screw connectors with multiple mounting holes for a secure, turn-prevent connection. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. For use with copper or aluminum conductors. 600V (2000V max, per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.75".
150
- UPC
- 662381001641
- Color:
- Silver
- Material:
- Aluminum
- Number Of Poles:
- 1
- Voltage Rating:
- 600 V
- Color:
- Silver
- Environmental Conditions:
- 90 C
- Finish:
- Aluminum
- Material:
- Aluminum
- Number Of Poles:
- 1
- Sub Brand:
- Mechanical Connector
- Temperature Rating:
- 90 C
- Voltage Rating:
- 600 V
