4-350T3
SKU: 4-350T3
MPN: 4-350T3
Key specs
View all- Color
- Silver
- Material
- Aluminum
- Number Of Poles
- 1
- Voltage Rating
- 600 V
Description
Product overview

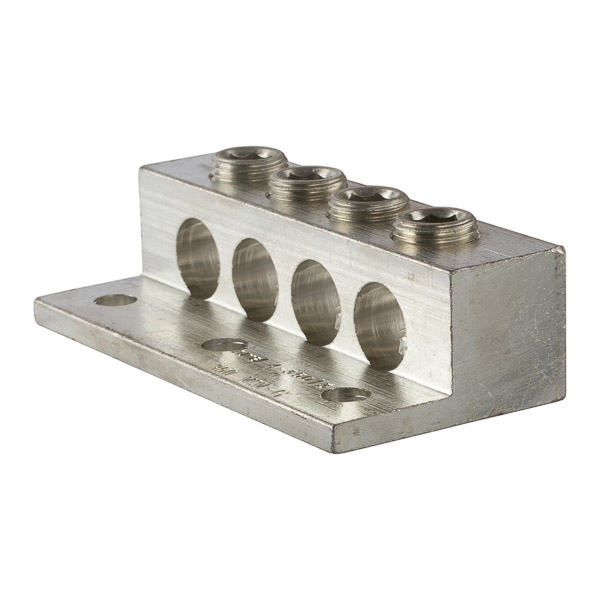

4 Port Dual Rated Transformer Lug 350 MCM - 6 AWG Aluminum Dual Rated Transformer Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600 Volts. Temperature Rating 90 degrees C.
4 Port Dual Rated Transformer Lug 350 MCM - 6 AWG Aluminum Dual Rated Transformer Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600 Volts. Temperature Rating 90 degrees C.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI 4-350T3 Trans Lug (4) 350-6 AWG
- Invoice description
- Trans Lug (4) 350-6 AWG 3 Mtg Holes
Specifications
- UPC
- 662381026927
- Color
- Silver
- Material
- Aluminum
- Number Of Poles
- 1
- Voltage Rating
- 600 V
- Color
- Silver
- Environmental Conditions
- 90 C
- Finish
- Aluminum
- Material
- Aluminum
- Number Of Poles
- 1
- Sub Brand
- Utilities
- Temperature Rating
- 90 C
- Voltage Rating
- 600 V
