Key specs

View all
Type
Conveyor Sheave

Description

Product overview

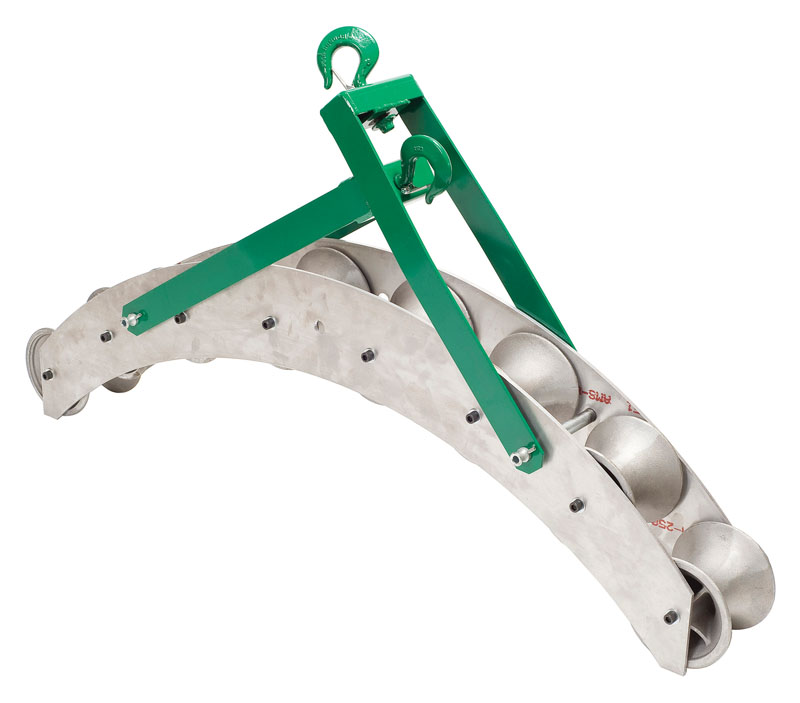

Conveyer Sheave 4,000 Pound Capacity 36" (914.4 mm) with 8 Sheave Wheels. Welded steel frame with a series of sheaves to form a large radius. Yokes with cast steel closure-type hooks with a 1" (25.4 mm) opening. 5" (127 mm) wide aluminum alloy sheaves. Use with any cable puller whose maximum pulling force is 4,000 lbs. (17.8 kN) or less.

Conveyer Sheave 4,000 Pound Capacity 36" (914.4 mm) with 8 Sheave Wheels. Welded steel frame with a series of sheaves to form a large radius. Yokes with cast steel closure-type hooks with a 1" (25.4 mm) opening. 5" (127 mm) wide aluminum alloy sheaves. Use with any cable puller whose maximum pulling force is 4,000 lbs. (17.8 kN) or less.

Manufacturer highlights

Additional manufacturer notes

Feed description
GRN 4036 SHEAVE UNIT -36" (PKGD)
Label description
36 (914.4 mm) Conveyor Sheavewith 8 sheave wheels
Invoice description
SHEAVE UNIT -36" (PKGD)

Specifications

UPC
783310263692
UNSPSC
39121722
Country of Origin
US
Type
Conveyor Sheave
Capacity
Use with any cable puller whose maximum pulling force is 4000 pounds
Type
Conveyor Sheave
Manufacturer keywords
4036,26369

Rate this product

Do you have a question about 4036?

Videos & documents

Documents

4036

$2,313.29 / EA
