4300500EG
SKU: 4300500EG
MPN: 4300500EG
Key specs
View all- Material
- Steel; EPDM-SBR Rubber
- Type
- nVent CADDY Macrofix Plus
Description
Product overview

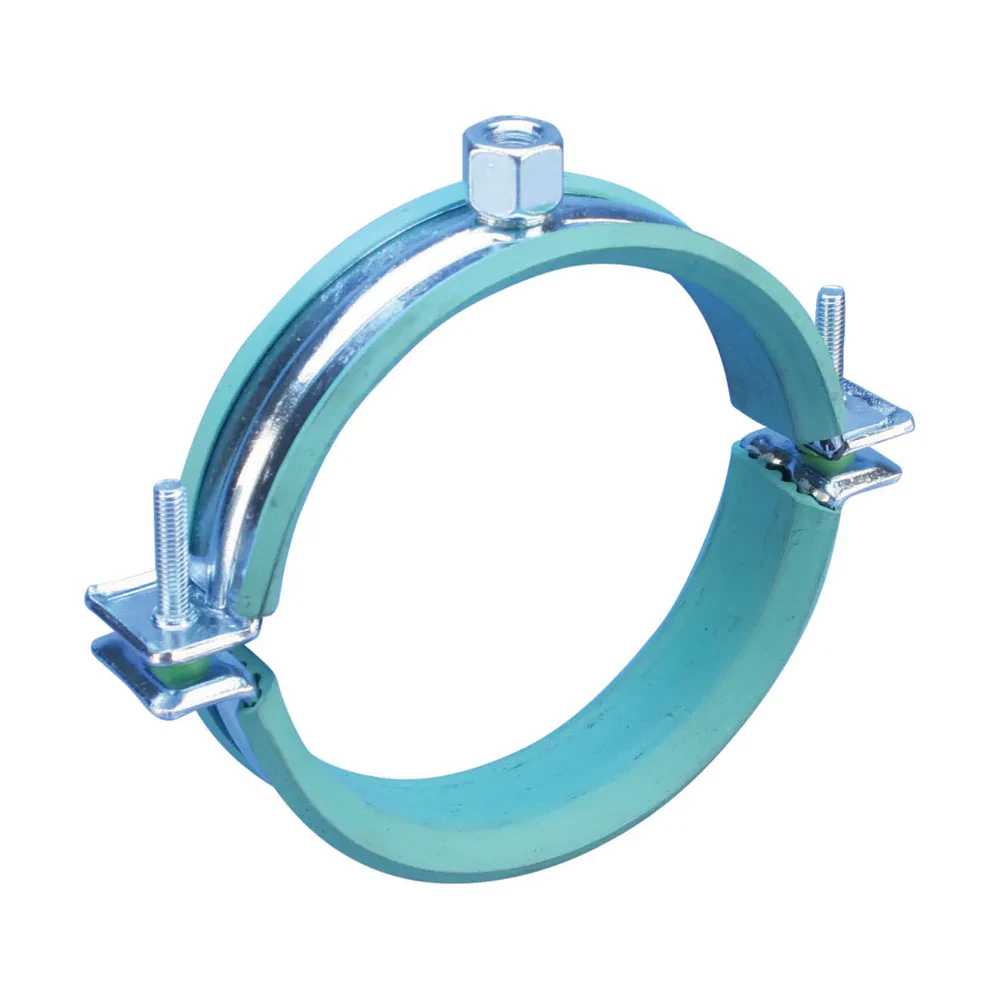

nVent CADDY Macrofix Plus LF Low-Friction, 5.512" OD, 5" Pipe
nVent CADDY Macrofix Plus LF Low-Friction, 5.512" OD, 5" Pipe
Manufacturer highlights
- Includes easy closing mechanism
- Age resistant lining designed specifically for plastic pipe applications
- Low-friction properties allow for expansion, contraction and easy sliding of pipe
- Conforms with Manufacturers Standardization Society (MSS) SP-58 (Type 12)
- Category II noise reduction according to DIN EN ISO 3822-1
- Compliant for sound insulation design according to DIN 4109
Additional manufacturer notes
- Short description
- CADDY 430 5 CPVC 140MM
- Short name
- EFS
- Feed description
- NVENT EFS 4300500EG CADDY 430 5 CPV
Specifications
- UPC
- 782856657835
- UNSPSC
- 40141725
- Country of Origin
- CN
- Material
- Steel; EPDM-SBR Rubber
- Type
- nVent CADDY Macrofix Plus
- Finish
- Electrogalvanized
- Material
- Steel; EPDM-SBR Rubber
- Outer Diameter (Imperial) <Nom>
- 5.512 in
- Pipe Size <Nom>
- 5 in
- Rod Size (Imperial)
- 3/8 in
- Static Load (lb)
- 440 lb
- Sub Brand
- CADDY
- Type
- nVent CADDY Macrofix Plus
- Width (Imperial) <Nom>
- 1 3/16 in
- Manufacturer keywords
- 2-screw Clamp, Insulated, Pipe Clamp, Pipe Hanger, Quick Close
