$109.49 / EA
Local stock: 0
Lead time:
over 7 working days
3-1/2" Straight Liquidtight Connector
3-1/2" Straight Liquidtight Connector
Topaz carries an extensive inventory of compact, straight liquidtight connectors for use with metall...150
Topaz carries an extensive inventory of compact, straight liquidtight connectors for use with metallic and nonmetallic type B liquidtight conduit to suit multiple applications, always in stock and ready for fast delivery. Liquidtight connectors seal out water, oil & dust and other damaging particles to ensure continued product integrity and performance. Straight, component type models available for 3/8� � 4�. Fabricated in corrosion resistant die cast zinc and assembled with a die cast locknut; UL listed.
- Liquidtight, raintight, oiltight
- Straight connectors
- Assembled with a die cast locknut
- Liquidtight, raintight, oiltight
- Straight connectors
- Assembled with a die cast locknut
- UPC
- 751338143401
- UNSPSC
- 39121420
- Country of Origin
- MUL
- Material:
- Die Cast Zinc
- Size:
- 3-1/2 IN
- Type:
- Straight Liquidtight Connector
- Connection:
- Threaded
- Connectors (IN):
- Threaded IN
- For Use With:
- Metallic and Non-Metallic "Type B" Liquidtight Conduit
- Height:
- 5.470 IN
- Insulation:
- Insulated Throat
- Label Description:
- STRAIGHT LIQUIDTIGHT CONNECTORS
- Length:
- 3.660 IN
- Material:
- Die Cast Zinc
- Size:
- 3-1/2 IN
- Size (IN):
- 3-1/2" IN
- Standard:
- UL 514B, UL File Number E170258, E148716, US Federal Specification Number A-A-50552, CSA Certified, NEMA/ANSI FB-1, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D
- Thread Length:
- 0.920 IN
- Type:
- Straight Liquidtight Connector
Recently Viewed
-
-
LPJ-2SP
BUSSMAN FUSE
Eaton Bussmann series LPJ fuse, Low-peak fuse, 2 A, Dual, Class J, Non-indicating, Ferrule end x ferrule end, Time delay,Current-limiting, 10 sec at 5...
See more details -
-
UT32D
L.H. DOTTIE CO.

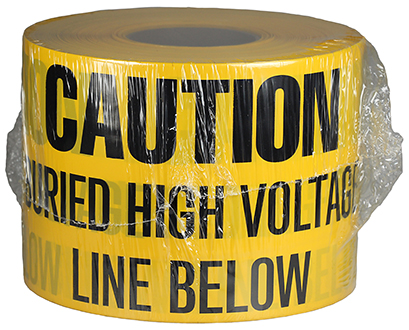

Underground Tape, Non-Adhesive, Yellow, 1000 ft. length, Non-Adhesive Polyethylene material, "Caution Buried High Voltage Line Below" legend, 4 mil. t...
