$5.31 / EA
Local stock: 0
Lead time:
over 7 working days

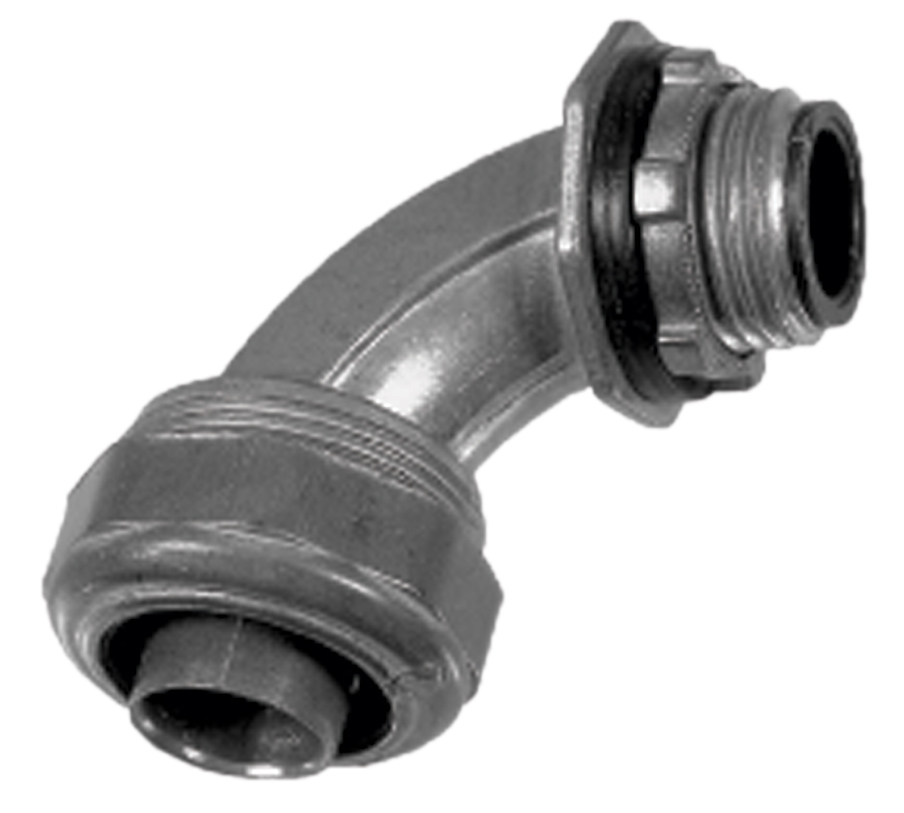

1/2" 90� Liquidtight Connector with Insulated Throat
1/2" 90� Liquidtight Connector with Insulated Throat
Need fast delivery? Topaz carries an extensive, always in stock inventory of 90� angle, metallic liq...150
Need fast delivery? Topaz carries an extensive, always in stock inventory of 90� angle, metallic liquidtight connectors for use with metallic and nonmetallic type B liquidtight conduit to suit multiple applications. 90� angle models are available with a protective insulated throat for conduit sizes from 3/8� to 2�. Liquidtight connectors seal out water, oil & dust and other damaging particles. Fabricated from naturally corrosion resistant zinc die cast and assembled with a die cast locknut to optimize performance and ensure longevity; UL listed and confidently backed by the Topaz lifetime guarantee.
- Liquidtight, raintight, oiltight
- 90� connectors
- Assembled with a die cast locknut
- Insulated throat protects against abrasion damage
- Liquidtight, raintight, oiltight
- 90� connectors
- Assembled with a die cast locknut
- Insulated throat protects against abrasion damage
- UPC
- 751338147300
- UNSPSC
- 39121420
- Country of Origin
- MUL
- Material:
- Die Cast Zinc
- Size:
- 1/2 IN
- Type:
- 90 DEG Angle Liquidtight Connector
- Connection:
- Threaded
- Connectors (IN):
- Threaded IN
- For Use With:
- Metallic and Non-Metallic "Type B" Liquidtight Conduit
- Height:
- 2.340 IN
- Insulation:
- Insulated Throat
- Label Description:
- 90° LIQUIDTIGHT CONNECTORS
- Length:
- 2.220 IN
- Material:
- Die Cast Zinc
- Size:
- 1/2 IN
- Size (IN):
- 1/2" IN
- Size (trade) (IN):
- 1/2" IN
- Standard:
- UL 514B, UL File Number E170258, E148716, US Federal Specification Number A-A-50552, CSA Certified, NEMA/ANSI FB-1, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D
- Thread Length:
- 0.52 IN
- Type:
- 90 DEG Angle Liquidtight Connector
Recently Viewed
-
-
-

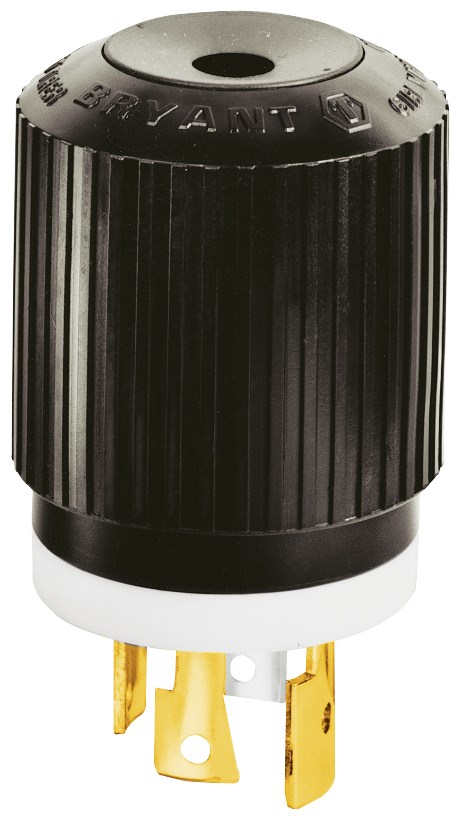

72030NP
