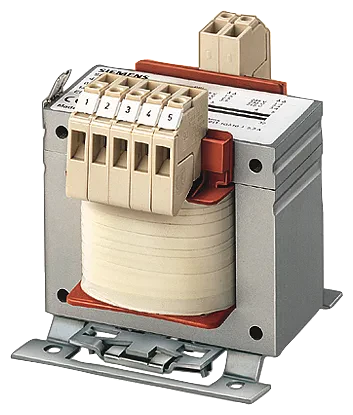

4AM52424TJ100FA0
SKU: 4AM52424TJ100FA0
MPN: 4AM52424TJ100FA0
Key specs
View all- Electrical input frequency / maximum
- 60 Hz
- Electrical input frequency / minimum
- 50 Hz
- Electrical output frequency / maximum
- 60 Hz
- Electrical output frequency / minimum
- 50 Hz
- Height
- 0.144 m
- Mounting type
- screws
Description
Product overview
TRANSFORMER SITAS PHASES 1 PN/PN(S6)(KVA) 0.63 /2.35 UPRI(V) 230+/-5% USEC(V) 110 ISEC(A) 5.73 F(HZ) 50...60 VECTOR GR./SHIELD WNG. II0 /0 TA/ISOKL 40 /B IP00 TYPE OF TERMINALS SCREW/TAB CONNECTION INSTALLATION SCREW EN 61558-2-1. -2-2. -2-4 UL/CSA-RECOGNIZED ( ) >CONTROL CIRCUIT TRANSFORMER ( ) ISOLATION TRANSFORMER ( )>
TRANSFORMER SITAS PHASES 1 PN/PN(S6)(KVA) 0.63 /2.35 UPRI(V) 230+/-5% USEC(V) 110 ISEC(A) 5.73 F(HZ) 50...60 VECTOR GR./SHIELD WNG. II0 /0 TA/ISOKL 40 /B IP00 TYPE OF TERMINALS SCREW/TAB CONNECTION INSTALLATION SCREW EN 61558-2-1. -2-2. -2-4 UL/CSA-RECOGNIZED ( ) >CONTROL CIRCUIT TRANSFORMER ( ) ISOLATION TRANSFORMER ( )>
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A 4AM52424TJ100FA0 TRANSFORMER SI
- Invoice description
- TRANSFORMER SITAS PHASES:1
Specifications
- UPC
- 804766497605
- UNSPSC
- 39121026
- Country of Origin
- CZ
- Electrical input frequency / maximum
- 60 Hz
- Electrical input frequency / minimum
- 50 Hz
- Electrical output frequency / maximum
- 60 Hz
- Electrical output frequency / minimum
- 50 Hz
- Height
- 0.144 m
- Mounting type
- screws
- Product function / Insulation monitoring
- No
- Product function / Short-circuit and overload proof
- No
- Product function / Temperature monitoring
- No
- Type of electrical connection / at input / for main current circuit
- screw-typeterminals/tabterminals
- Type of electrical connection / at output / for main current circuit
- screw-typeterminals/tabterminals
- Width
- 0.152 m
