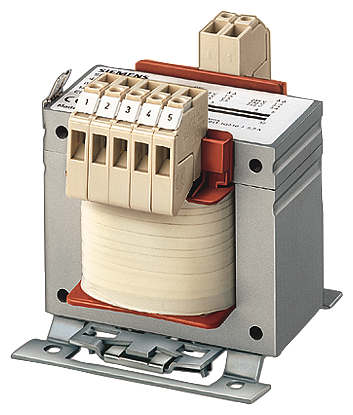

TRANSFORMER SITAS PHASES 1 PN/PN(S6)(KVA) 0.63 /2.35 UPRI(V) 500+/-5% USEC(V) 230 ISEC(A) 2.74 F(HZ) 50...60 VECTOR GR./SHIELD WNG. II0 /0 TA/ISOKL 40 /B IP00 TYPE OF TERMINALS SCREW/TAB CONNECTION INSTALLATION SCREW EN 61558-2-1. -2-2. -2-4 UL/CSA-RECOGNIZED ( ) >CONTROL CIRCUIT TRANSFORMER ( ) ISOLATION TRANSFORMER ( )>
TRANSFORMER SITAS PHASES 1 PN/PN(S6)(KVA) 0.63 /2.35 UPRI(V) 500+/-5% USEC(V) 230 ISEC(A) 2.74 F(HZ) 50...60 VECTOR GR./SHIELD WNG. II0 /0 TA/ISOKL 40 /B IP00 TYPE OF TERMINALS SCREW/TAB CONNECTION INSTALLATION SCREW EN 61558-2-1. -2-2. -2-4 UL/CSA-RECOGNIZED ( ) >CONTROL CIRCUIT TRANSFORMER ( ) ISOLATION TRANSFORMER ( )>

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

4AM52425FT100FA0

$2,013.41 / EA

manufacturer discounts
learn about discounts

  • $1,805.13 for $1,500.00+
  • $1,735.70 for $2,500.00+
  • $1,666.27 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

TRANSFORMER SITAS PHASES 1 PN/PN(S6)(KVA) 0.63 /2.35 UPRI(V) 500+/-5% USEC(V) 230 ISEC(A) 2.74 F(HZ) 50...60 VECTOR GR./SHIELD WNG. II0 /0 TA/ISOKL 40 /B IP00 TYPE OF TERMINALS SCREW/TAB CONNECTION INSTALLATION SCREW EN 61558-2-1. -2-2. -2-4 UL/CSA-RECOGNIZED ( ) >CONTROL CIRCUIT TRANSFORMER ( ) ISOLATION TRANSFORMER ( )>

TRANSFORMER SITAS PHASES 1 PN/PN(S6)(KVA) 0.63 /2.35 UPRI(V) 500+/-5% USEC(V) 230 ISEC(A) 2.74 F(HZ) 50...60 VECTOR GR./SHIELD WNG. II0 /0 TA/ISOKL 40 /B IP00 TYPE OF TERMINALS SCREW/TAB CONNECTION INSTALLATION SCREW EN 61558-2-1. -2-2. -2-4 UL/CSA-RECOGNIZED ( ) >CONTROL CIRCUIT TRANSFORMER ( ) ISOLATION TRANSFORMER ( )>

150

UPC
804766420245
UNSPSC
39121026
Country of Origin
CZ
Electrical input frequency / maximum:
60 Hz
Electrical input frequency / minimum:
50 Hz
Electrical output frequency / maximum:
60 Hz
Electrical output frequency / minimum:
50 Hz
Height:
0.144 m
Mounting type:
screws
Product function / Insulation monitoring:
No
Product function / Short-circuit and overload proof:
No
Product function / Temperature monitoring:
No
Type of electrical connection / at input / for main current circuit:
screw-typeterminals/tabterminals
Type of electrical connection / at output / for main current circuit:
screw-typeterminals/tabterminals
Width:
0.152 m
