$3,894.38 / EA
manufacturer discounts
learn about discounts
- $3,491.51 for $1,500.00+
- $3,357.23 for $2,500.00+
- $3,222.94 for $3,500.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

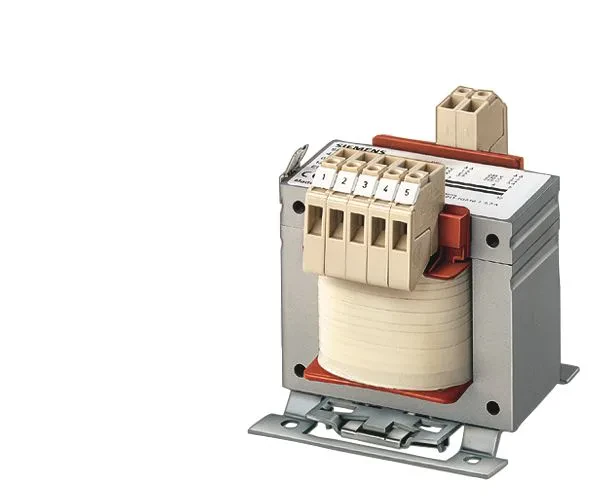

TRANSFORMER SITAS PHASES 1 PN/PN(S6)(KVA) 1,6 /7,3 UPRI(V) 480+/-5% USEC(V) 120ISEC(A) 13,3 F(HZ) 50...60 VECTOR GR./SHIELD WNG. II0 /0 TA/ISOKL 40 /B IP00 TYPE OF TERMINALS SCREW/TAB CONNECTION INSTALLATION SCREW EN 61558-2-1, -2-2, -2-4UL/CSA-RECOGNIZED >CONTROL CIRCUIT TRANSFORMER >ISOLATION TRANSFORMER
TRANSFORMER SITAS PHASES 1 PN/PN(S6)(KVA) 1,6 /7,3 UPRI(V) 480+/-5% USEC(V) 120ISEC(A) 13,3 F(HZ) 50...60 VECTOR GR./SHIELD WNG. II0 /0 TA/ISOKL 40 /B IP00 TYPE OF TERMINALS SCREW/TAB CONNECTION INSTALLATION SCREW EN 61558-2-1, -2-2, -2-4UL/CSA-RECOGNIZED >CONTROL CIRCUIT TRANSFORMER >ISOLATION TRANSFORMER
150
- UPC
- 887621099145
- UNSPSC
- 39121026
- Country of Origin
- CZ
- Electrical input frequency / maximum:
- 60 Hz
- Electrical input frequency / minimum:
- 50 Hz
- Electrical output frequency / maximum:
- 60 Hz
- Electrical output frequency / minimum:
- 50 Hz
- Height:
- 0.164 m
- Mounting type:
- screws
- Product function / Insulation monitoring:
- No
- Product function / Short-circuit and overload proof:
- No
- Product function / Temperature monitoring:
- No
- Type of electrical connection / at input / for main current circuit:
- screw-typeterminals/tabterminals
- Type of electrical connection / at output / for main current circuit:
- screw-typeterminals/tabterminals
- Width:
- 0.176 m
