$3,464.54 / EA
manufacturer discounts
learn about discounts
- $3,106.14 for $1,500.00+
- $2,986.68 for $2,500.00+
- $2,867.21 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

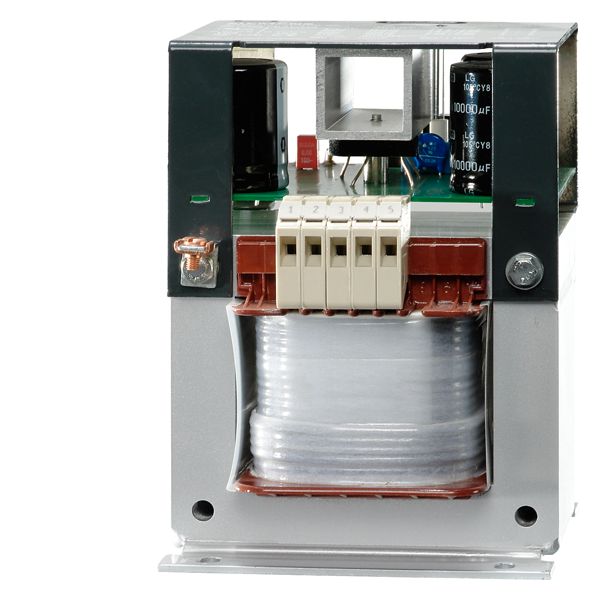

POWER SUPPLY PHASES 1 PN(KW) 0,24 UPRI(V) 400-230(240)-115(120) USEC(V DC) 24 ISEC(A DC) 10/12 (60/40 CEL) F(HZ) 50...60 VECTOR GR./SHIELD WNG. II0 /0 PROTECTION CL. I TA/ISOKL 60 /B W(%) 5 IP00 TYPE OF TERMINALS SCREW/TAB CONNECTION INSTALLATION MOUNTING RAILS EN 61558-2-6, EN61131-2 >SAFETY ISOLATING TRANSFORMER
POWER SUPPLY PHASES 1 PN(KW) 0,24 UPRI(V) 400-230(240)-115(120) USEC(V DC) 24 ISEC(A DC) 10/12 (60/40 CEL) F(HZ) 50...60 VECTOR GR./SHIELD WNG. II0 /0 PROTECTION CL. I TA/ISOKL 60 /B W(%) 5 IP00 TYPE OF TERMINALS SCREW/TAB CONNECTION INSTALLATION MOUNTING RAILS EN 61558-2-6, EN61131-2 >SAFETY ISOLATING TRANSFORMER
150
- UPC
- 040892731774
- UNSPSC
- 39121026
- Country of Origin
- CZ
- Ambient temperature / rated value:
- 60 °C
- Certificate of suitability:
- CE
- Construction form of the iron core:
- EI120/72
- Depth:
- 128 m
- Electrical input frequency / maximum:
- 60 Hz
- Electrical input frequency / minimum:
- 50 Hz
- Height:
- 170 m
- Input current / _1 / rated value:
- 1 A
- Input current / _2 / rated value:
- 1.8 A
- Input current / _3 / rated value:
- 3.6 A
- Input voltage / _1 / rated value:
- 400 V
- Input voltage / _2 / rated value:
- 230 V
- Input voltage / _3 / rated value:
- 115 V
- Input voltage / maximum:
- 424.00 V
- Input voltage / minimum:
- 103.5 V
- Operating resource protection class:
- I
- Output current / _1 / rated value:
- 10 A
- Output current / at DC / at 40 °C / rated value / maximum:
- 12 A
- Output current / at DC / at 60 °C / rated value / maximum:
- 10 A
- Output voltage / _1 / rated value:
- 24 V
- Output voltage / of the measurement signal / at analog output / at DC / maximum:
- 28.8 V
- Output voltage / of the measurement signal / at analog output / at DC / minimum:
- 20.4 V
- Phase number / of the inputs:
- 1
- Product designation:
- 4AV2401-2EB00-0B
- Product function / Insulation monitoring:
- No
- Product function / Short-circuit and overload proof:
- No
- Product function / Temperature monitoring:
- No
- Product function / varistor protective wiring:
- Yes
- Protection class IP:
- IP00
- Relative residual ripple / of the output voltage 1 / for main current circuit / maximum:
- 5 %
- Thermal class / acc. to IEC 60085:
- B
- Type of current / _1 / at output:
- DC
- Type of current / of the inputs:
- AC
- Vector group:
- Ii0
- Width:
- 120 m
- product brand name:
- SIDAC
