5026M
SKU: 5026M
MPN: 5026M
Key specs
View all- Size
- H=2.187 - W=3.187 IN
- Supply Voltage
- 347 VAC
- Type
- Delayed Response Utility Grade
Description
Product overview

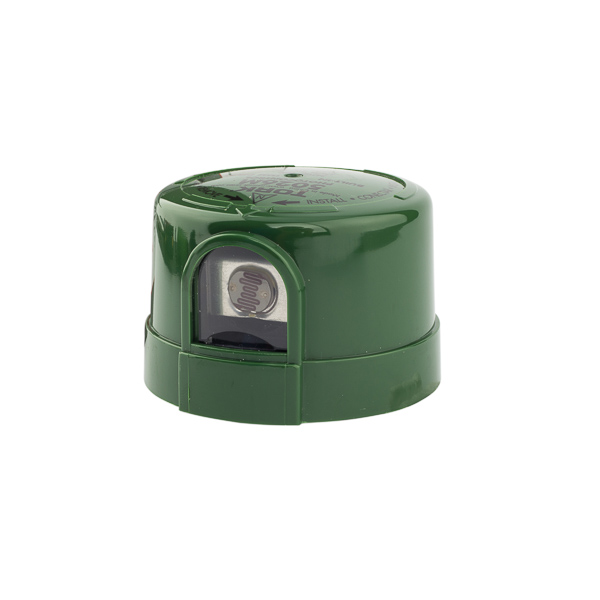

UtilityGrade TurnLock, On 1-3fc, Off/On Ratio 5Max, Delay Resp, .5" Sensor, 347V, 5760W Tungsten, 3470VA Ballast
UtilityGrade TurnLock, On 1-3fc, Off/On Ratio 5Max, Delay Resp, .5" Sensor, 347V, 5760W Tungsten, 3470VA Ballast
Manufacturer highlights
Additional manufacturer notes
- Short name
- TORK
- Feed description
- NSI 5026M TurnLock Utility 347V .5"
- Invoice description
- TurnLock Utility 347V .5" Sensor
Specifications
- UPC
- 786261610454
- Size
- H=2.187 - W=3.187 IN
- Supply Voltage
- 347 VAC
- Type
- Delayed Response Utility Grade
- Enclosure
- Lexan Housing
- Environmental Conditions
- -40 to + 140 F
- Frequency Rating
- 50-60 Hz
- Mounting
- Twist Lock
- Operating Temperature
- -40 to + 140 F
- Sensitivity
- Turn On Is 1 to 3fc - Turn Off to Turn On Ratio is 5 Max
- Sensor
- Cadmium Sulphide Cell
- Size
- H=2.187 - W=3.187 IN
- Standard
- cULus
- Sub Brand
- Photocontrols
- Supply Voltage
- 347 VAC
- Timing Range
- 0-2 min
- Type
- Delayed Response Utility Grade
