Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$281.52 / EA
manufacturer discounts
learn about discounts
- $244.63 for $500.00+
- $232.98 for $1,000.00+
- $225.21 for $2,000.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders
HOSE,HYD 1/4X10' 1/4-M NPTF (90525159)
HOSE,HYD 1/4X10' 1/4-M NPTF (90525159)
150
- UPC
- 783310525158
- UNSPSC
- 40142020
- Country of Origin
- US
NC-6-38MF
$565.82 /ea

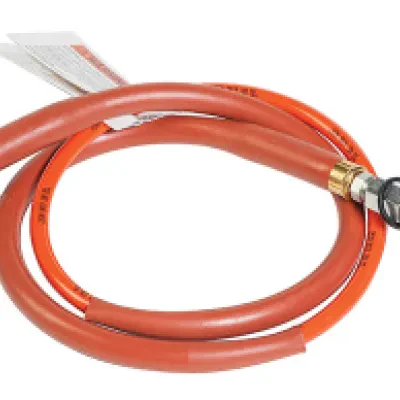

Hydraulic Hose 6' x 3/8" NPT Screw-Type Male and Female End. SAE J517 non-conductive hose construction. Less than 50 micro-amperes leakage when subjected to 100,000 volts/ft for 5 minutes. UV resistant cover. Spiraled high tensile aramid fiber reinforcement.
| Attributed Data | Included |
|---|---|
| Color | Orange polyurethane non-perforated cover, Non-conductive marking and color code Yes |
| Connection | 3/8" NPT screw-type male and female Yes |
| Diameter | 3/16" (4.8mm) Yes |
| Includes | Double rubber cap to protect fittings while not in use Yes |
| Length | 6 foot Yes |
| Material | Spiraled high tensile aramid fiber reinforcement, Nylon-lined core tube Yes |
| Pressure Rating | 40,000 PSI pressure burst rating Yes |
| Type | Non-Conductive Yes |
| Working Pressure | 10,000 PSI max working pressure Yes |
NC-10-38MF
$684.66 /ea
Hydraulic Hose 10' x 3/8" NPT Screw-Type Male and Female End. SAE J517 non-conductive hose construction. Less than 50 micro-amperes leakage when subjected to 100,000 volts/ft for 5 minutes. UV resistant cover. Spiraled high tensile aramid fiber reinforcement.
| Attributed Data | Included |
|---|---|
| Color | Orange polyurethane non-perforated cover, Non-conductive marking and color code Yes |
| Connection | 3/8" NPT screw-type male and female Yes |
| Diameter | 3/16" (4.8mm) Yes |
| Includes | Double rubber cap to protect fittings while not in use Yes |
| Length | 10 foot Yes |
| Material | Spiraled high tensile aramid fiber reinforcement, Nylon-lined core tube Yes |
| Pressure Rating | 40K PSI pressure burst rating Yes |
| Type | Non-Conductive Yes |
| Working Pressure | 10K PSI max working pressure Yes |
NC-30-38MF
$1,154.30 /ea
SAE J517 non-conductive hose construction. Less than 50 micro-amperes leakage when subjected to 100,000 volts/ft for 5 minutes. UV resistant cover. Spiraled high tensile aramid fiber reinforcement.
| Attributed Data | Included |
|---|---|
| Color | Orange polyurethane non-perforated cover, Non-conductive marking and color code Yes |
| Connection | 3/8" NPT screw-type male and female Yes |
| Diameter | 3/16" (4.8mm) Yes |
| Includes | Double rubber cap to protect fittings while not in use Yes |
| Length | 10 Meter - 32.8ft Yes |
| Material | Spiraled high tensile aramid fiber reinforcement, Nylon-lined core tube Yes |
| Pressure Rating | 40K PSI pressure burst rating Yes |
| Type | Non-Conductive Yes |
| Working Pressure | 10K PSI max working pressure Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
NC-6-38MF
Hydraulic Hose 6' x 3/8" NPT Screw-Type Male and Female End. SAE J517 non-conductive hose construction. Less than 50 micro-amperes leakage when subjected to 100,000 volts/ft for 5 minutes. UV resistant cover. Spiraled high tensile aramid fiber re...
$565.82 / EA
|
NC-10-38MF
Hydraulic Hose 10' x 3/8" NPT Screw-Type Male and Female End. SAE J517 non-conductive hose construction. Less than 50 micro-amperes leakage when subjected to 100,000 volts/ft for 5 minutes. UV resistant cover. Spiraled high tensile aramid fiber r...
$684.66 / EA
|
NC-30-38MF
SAE J517 non-conductive hose construction. Less than 50 micro-amperes leakage when subjected to 100,000 volts/ft for 5 minutes. UV resistant cover. Spiraled high tensile aramid fiber reinforcement.
$1,154.30 / EA
|
|
| Attributed Data | |||
| Color | Orange polyurethane non-perforated cover, Non-conductive marking and color code Orange polyurethane non-perforated cover, Non-conductive marking and color code | ||
| Connection | 3/8" NPT screw-type male and female 3/8" NPT screw-type male and female | ||
| Diameter | 3/16" (4.8mm) 3/16" (4.8mm) | ||
| Includes | Double rubber cap to protect fittings while not in use Double rubber cap to protect fittings while not in use | ||
| Length | 6 foot 6 foot | 10 Meter - 32.8ft 10 Meter - 32.8ft | 10 foot 10 foot |
| Material | Spiraled high tensile aramid fiber reinforcement, Nylon-lined core tube Spiraled high tensile aramid fiber reinforcement, Nylon-lined core tube | ||
| Pressure Rating | 40,000 PSI pressure burst rating 40,000 PSI pressure burst rating | 40K PSI pressure burst rating 40K PSI pressure burst rating | |
| Type | Non-Conductive Non-Conductive | ||
| Working Pressure | 10,000 PSI max working pressure 10,000 PSI max working pressure | 10K PSI max working pressure 10K PSI max working pressure | |
| Add a product to the cart | Show more details | Show more details | Show more details |
