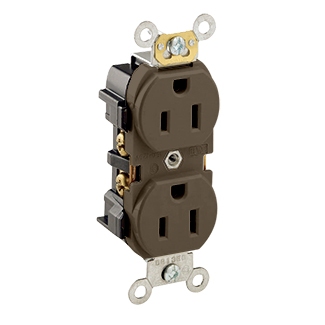

15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Industrial Series Heavy Duty Specification Grade, Duplex Receptacle, Straight Blade, Self Grounding, Back & Side 8 Hole Feed-Thru Wired, Steel Strap, - BROWN
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Industrial Series Heavy Duty Specification Grade, Duplex Receptacle, Straight Blade, Self Grounding, Back & Side 8 Hole Feed-Thru Wired, Steel Strap, - BROWN
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Industrial Series Heavy Duty Specification Grade, Duplex Receptacle, Straight Blade, Self Grounding, Back & Side 8 Hole Feed-Thru Wired, Steel Strap, - BROWN

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

5252

$6.21 / EA

manufacturer discounts
learn about discounts

  • $5.35 for $1,300.00+
  • $5.05 for $2,000.00+
  • $4.79 for $3,000.00+
Available to order

Local stock: 0
Lead time: 1 - 2 working days

15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Industrial Series Heavy Duty Specification Grade, Duplex Receptacle, Straight Blade, Self Grounding, Back & Side 8 Hole Feed-Thru Wired, Steel Strap, - BROWN

15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Industrial Series Heavy Duty Specification Grade, Duplex Receptacle, Straight Blade, Self Grounding, Back & Side 8 Hole Feed-Thru Wired, Steel Strap, - BROWN

150

UPC
078477819548
UNSPSC
39121406
Country of Origin
MX
Amperage Rating:
15 A
Color:
Brown
Material:
Nylon
Number Of Poles:
2
Size:
46 H x 1.55 W x 1.12 D IN
Type:
Straight Blade;Duplex Outlet
Voltage Rating:
125 V
Amperage Rating:
15 A
Color:
Brown
Connection:
Back and Side Wired
Dielectric Strength:
2000 (Min.) V
Environmental Conditions:
Flammability (Rated V-2 per UL94)
Material:
Nylon
Mounting:
Wall Box
NEMA Rating:
5-15R
Number Of Poles:
2
Number Of Wires:
3
Phase:
1
Size:
46 H x 1.55 W x 1.12 D IN
Standard:
NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)
Temperature Rating:
-40 to +60 DEG C
Type:
Straight Blade;Duplex Outlet
Voltage Rating:
125 V
Wire Size:
14-10 AWG
