$6.21 / EA
manufacturer discounts
learn about discounts
- $5.35 for $1,300.00+
- $5.05 for $2,000.00+
- $4.79 for $3,000.00+
Local stock: 0
Lead time:
1
-
2
working days

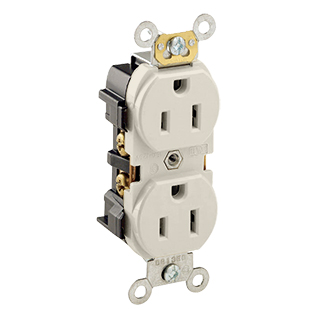

15 Amp, 125 Volt, Industrial Series Heavy Duty Specification Grade, Duplex Receptacle, Straight Blade, Self Grounding, Light Almond
15 Amp, 125 Volt, Industrial Series Heavy Duty Specification Grade, Duplex Receptacle, Straight Blade, Self Grounding, Light Almond
150
- UPC
- 078477270981
- UNSPSC
- 39121406
- Country of Origin
- MX
- Amperage Rating:
- 15 A
- Color:
- Light Almond
- Material:
- Thermoplastic
- Number Of Poles:
- 2
- Size:
- 46 H x 1.55 W x 1.12 D IN
- Type:
- Straight Blade;Duplex Outlet
- Voltage Rating:
- 125 V
- Amperage Rating:
- 15 A
- Color:
- Light Almond
- Connection:
- Back and Side Wired
- Dielectric Strength:
- 2000 (Min.) V
- Environmental Conditions:
- Flammability (Rated V-2 per UL94)
- Material:
- Thermoplastic
- Mounting:
- Wall Box
- NEMA Rating:
- 5-15R
- Number Of Poles:
- 2
- Number Of Wires:
- 3
- Phase:
- 1
- Size:
- 46 H x 1.55 W x 1.12 D IN
- Standard:
- NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)
- Temperature Rating:
- -40 to +60 DEG C
- Type:
- Straight Blade;Duplex Outlet
- Voltage Rating:
- 125 V
- Wire Size:
- 14-10 AWG
