$11.72 / EA
manufacturer discounts
learn about discounts
- $10.10 for $1,300.00+
- $9.53 for $2,000.00+
- $9.05 for $3,000.00+
Local stock: 0
Lead time:
1
-
2
working days
15-Amp, 125 Volt, Industrial Series Heavy Duty Specification Grade, Duplex Receptacle, Industrial Grade, Isolated Ground, Red
15-Amp, 125 Volt, Industrial Series Heavy Duty Specification Grade, Duplex Receptacle, Industrial Grade, Isolated Ground, Red
150
- UPC
- 078477053089
- UNSPSC
- 39121406
- Country of Origin
- MX
- Amperage Rating:
- 15 A
- Color:
- Red
- Material:
- Thermoplastic
- Number Of Poles:
- 2
- Size:
- 46 H x 1.33 W x 1.12 D IN
- Type:
- Straight Blade;Duplex Outlet
- Voltage Rating:
- 125 V
- Amperage Rating:
- 15 A
- Color:
- Red
- Connection:
- Back and Side Wired
- Dielectric Strength:
- 2000 (Min.) V
- Environmental Conditions:
- Flammability (Rated V-2 per UL94)
- Material:
- Thermoplastic
- Mounting:
- Wall Box
- NEMA Rating:
- 5-15R
- Number Of Poles:
- 2
- Number Of Wires:
- 3
- Phase:
- 1
- Size:
- 46 H x 1.33 W x 1.12 D IN
- Standard:
- NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)
- Temperature Rating:
- -40 to +60 DEG C
- Type:
- Straight Blade;Duplex Outlet
- Voltage Rating:
- 125 V
- Wire Size:
- 14-10 AWG
Recently Viewed
-
5262-IGR
LEVITON MANUFACTURING
15-Amp, 125 Volt, Industrial Series Heavy Duty Specification Grade, Duplex Receptacle, Industrial Grade, Isolated Ground, Red
See more details -
2200D36BK
ELEGANT LIGHTING
Unfortunately, we do not have a description available for 2200D36BK. Please call (800) 462-7733 See more details
-
HT-999-BS
CAL LIGHTING
Unfortunately, we do not have a description available for HT-999-BS. Please call (800) 462-7733 See more details
-
3RT20282AK643MA0
SIEMENS INDUSTRY, INC.
CONTACTOR, AC-3, 18.5KW/400V, 2NO+2NC AC110V 50HZ/120V 60HZ 3-POLE, SZ S0 SPRING-LOADED TERMINAL PERMANENT AUX. SWITCH FOR SUVA APPLICATIONS
See more details -

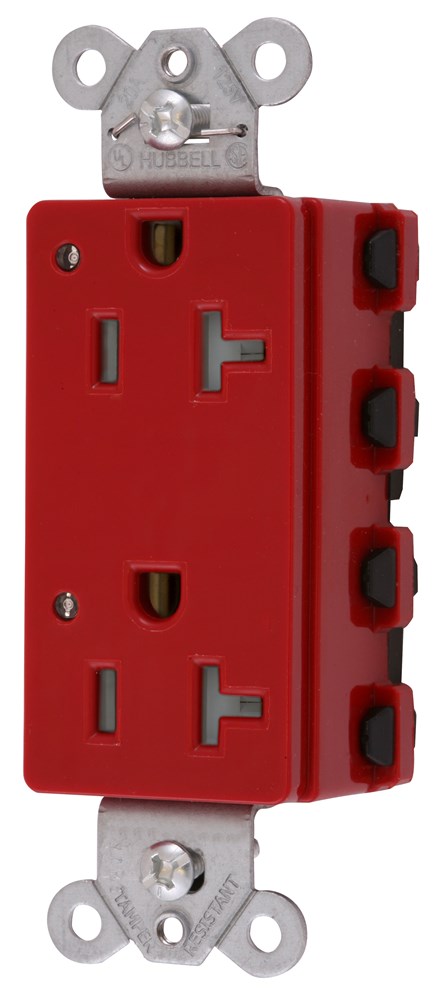

SNAP2162RLTRA
