52BP2W2A
SKU: 52BP2W2A
MPN: 52BP2W2A
Key specs
View all- Action
- DP
- Amperage Rating
- 10 A
- Number Of Poles
- 2
- Size
- 30 mm Pilot Device
- Type
- Non-Illuminated
- Voltage Rating
- 600 VAC//VDC
Description
Product overview

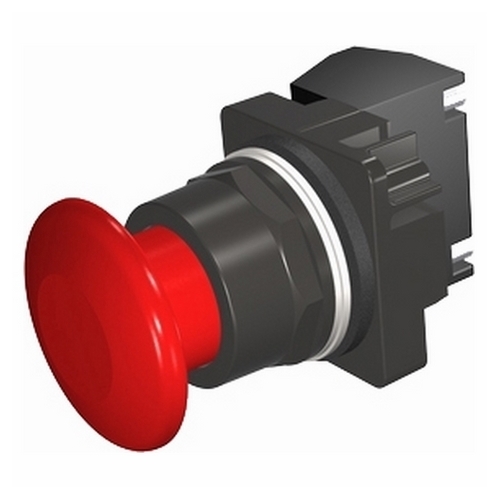

30mm BlackMax, Epoxy Coated Corrosion Resistant Complete Metal Unit Push-Pull Operator Non-Illuminated Mushroom Head Cap Small 1 3/4 (44.5 mm) Plastic, Red 2 Position Maintained, Pull-to-Release with 1 N.O. - 1 N.C. Heavy Duty Contacts, A600/P600 UL Listed, CSA Certified NEMA 1,3,3R,4,4X,12,13 ( & ) Automotive Standards
30mm BlackMax, Epoxy Coated Corrosion Resistant Complete Metal Unit Push-Pull Operator Non-Illuminated Mushroom Head Cap Small 1 3/4 (44.5 mm) Plastic, Red 2 Position Maintained, Pull-to-Release with 1 N.O. - 1 N.C. Heavy Duty Contacts, A600/P600 UL Listed, CSA Certified NEMA 1,3,3R,4,4X,12,13 ( & ) Automotive Standards
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A 52BP2W2A PUSHBUTTON,MTD,RED,1 3
- Invoice description
- PUSHBUTTON,MTD,RED,1 3/4 PLASTIC,2POS
Specifications
- UPC
- 662643314168
- UNSPSC
- 39122216
- Country of Origin
- MX
- Action
- DP
- Amperage Rating
- 10 A
- Number Of Poles
- 2
- Size
- 30 mm Pilot Device
- Type
- Non-Illuminated
- Voltage Rating
- 600 VAC//VDC
- Action
- DP
- Actuator
- Pushbutton
- Amperage Rating
- 10 A
- Contact Configuration
- 1NO-1NC
- Contact Rating
- A600 / P600
- Environmental Conditions
- NEMA 1, 3, 3R, 4, 4X, 12, 13 and Automotive Standards
- Insulation
- Glass-Filled Nylon
- Mounting
- Locknut
- Number Of Poles
- 2
- Operating Cycles
- 300k
- Operating Temperature
- -35 to +70?C (-31 to +158?F)
- Size
- 30 mm Pilot Device
- Standard
- UL Listed File # E22655 & CSA Certified File # LR6535
- Sub Brand
- BlackMax
- Type
- Non-Illuminated
- Voltage Rating
- 600 VAC//VDC
