$7.29 / EA
manufacturer discounts
learn about discounts
- $6.29 for $1,300.00+
- $5.94 for $2,000.00+
- $5.63 for $3,000.00+
Local stock: 0
Lead time:
1
-
2
working days

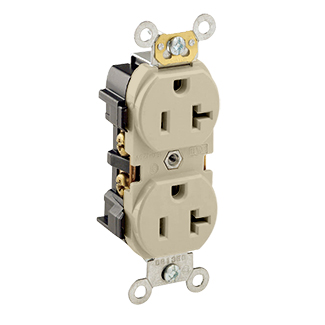

20-Amp, 125 Volt, Industrial Heavy Duty Grade, Duplex Receptacle, Straight Blade, Self Grounding, Ivory
20-Amp, 125 Volt, Industrial Heavy Duty Grade, Duplex Receptacle, Straight Blade, Self Grounding, Ivory
150
- UPC
- 078477819616
- UNSPSC
- 39121406
- Country of Origin
- MX
- Amperage Rating:
- 20 A
- Color:
- Ivory
- Material:
- Nylon
- Number Of Poles:
- 2
- Size:
- 46 H x 1.55 W x 1.12 D IN
- Type:
- Straight Blade;Duplex Outlet
- Voltage Rating:
- 125 V
- Amperage Rating:
- 20 A
- Color:
- Ivory
- Connection:
- Back and Side Wired
- Dielectric Strength:
- 2000 (Min.) V
- Environmental Conditions:
- Flammability (Rated V-2 per UL94)
- Material:
- Nylon
- Mounting:
- Wall Box
- NEMA Rating:
- 5-20R
- Number Of Poles:
- 2
- Number Of Wires:
- 3
- Phase:
- 1
- Size:
- 46 H x 1.55 W x 1.12 D IN
- Standard:
- NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)
- Temperature Rating:
- -40 to +60 DEG C
- Type:
- Straight Blade;Duplex Outlet
- Voltage Rating:
- 125 V
- Wire Size:
- 14-10 AWG
