5411A-CI-1/0
SKU: 5411A-CI-1/0
MPN: 5411A-CI-1/0
Key specs
View all- Type
- Inline
- Voltage Rating
- 15,000 V
Description
Product overview

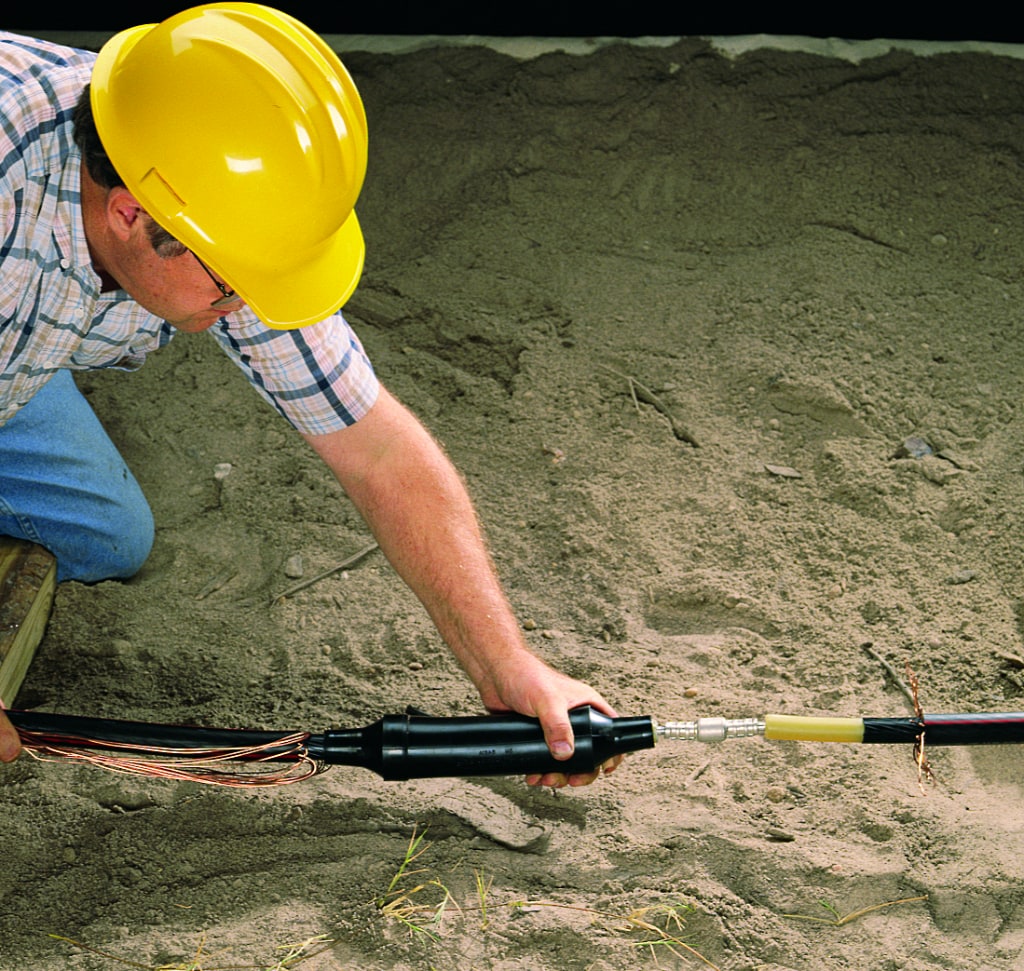

3M™ 5411/5412 Series Molded Rubber QS II Splice Kit is a 1 piece inline splice designed to use on 15kV jacketed concentric neutral (JCN) or concentric neutral (CN) cables. The cold shrink jacket has peroxide cured EPDM rubber construction to ensure moisture resistance and durability.
3M™ 5411/5412 Series Molded Rubber QS II Splice Kit is a 1 piece inline splice designed to use on 15kV jacketed concentric neutral (JCN) or concentric neutral (CN) cables. The cold shrink jacket has peroxide cured EPDM rubber construction to ensure moisture resistance and durability.
Manufacturer highlights
3M™ 5411/5412 Series Molded Rubber QS II Splice Kit is suitable to use on cables that can withstand a maximum temperature of 90 °C. It provides an ele...
3M™ 5411/5412 Series Molded Rubber QS II Splice Kit is suitable to use on cables that can withstand a maximum temperature of 90 °C. It provides an electric connection of outer conducting jacket to a cable semi conductive jacket. The kit meets the requirements of IEEE 404 standards.
- 1-piece inline splice to use on jacketed concentric neutral (JCN) or concentric neutral (CN) cables
- Provides an electrical connection for the outer conducting jacket to the cable semi-conductive jacket
- Designed to use on cables that can withstand a maximum temperature of 194 °F (90 °C)
- The cold shrink jacket is made of peroxide-cured EPDM rubber which provides moisture resistance and durability
Additional manufacturer notes
- Feed description
- 3M 5411A-CI-1/0 5411A CI-1/0 QSII S
- Label description
- 3M(TM) Molded Rubber Splice QS II 5411A-CI-1/0, 1 AWG, Cable Insulation O.D. 0.775-0.90 in, 1 per case
- Invoice description
- 5411A CI-1/0 QSII SPLICE KIT
Specifications
- UPC
- 054007099390
- UNSPSC
- 26121649
- Country of Origin
- USA
- Type
- Inline
- Voltage Rating
- 15,000 V
- Cable Type
- Concentric Neutral (CN); Jacketed Concentric Neutral (JCN)
- Connector
- CI-1/0
- Insulation OD Range
- 0.775 - 0.90 Inch
- Number of Conductors
- 1
- Product Technology
- Molded Rubber
- Stranded Conductor Sizes
- 1/0 AWG (220 mil)
- Type
- Inline
- Voltage Rating
- 15,000 V
