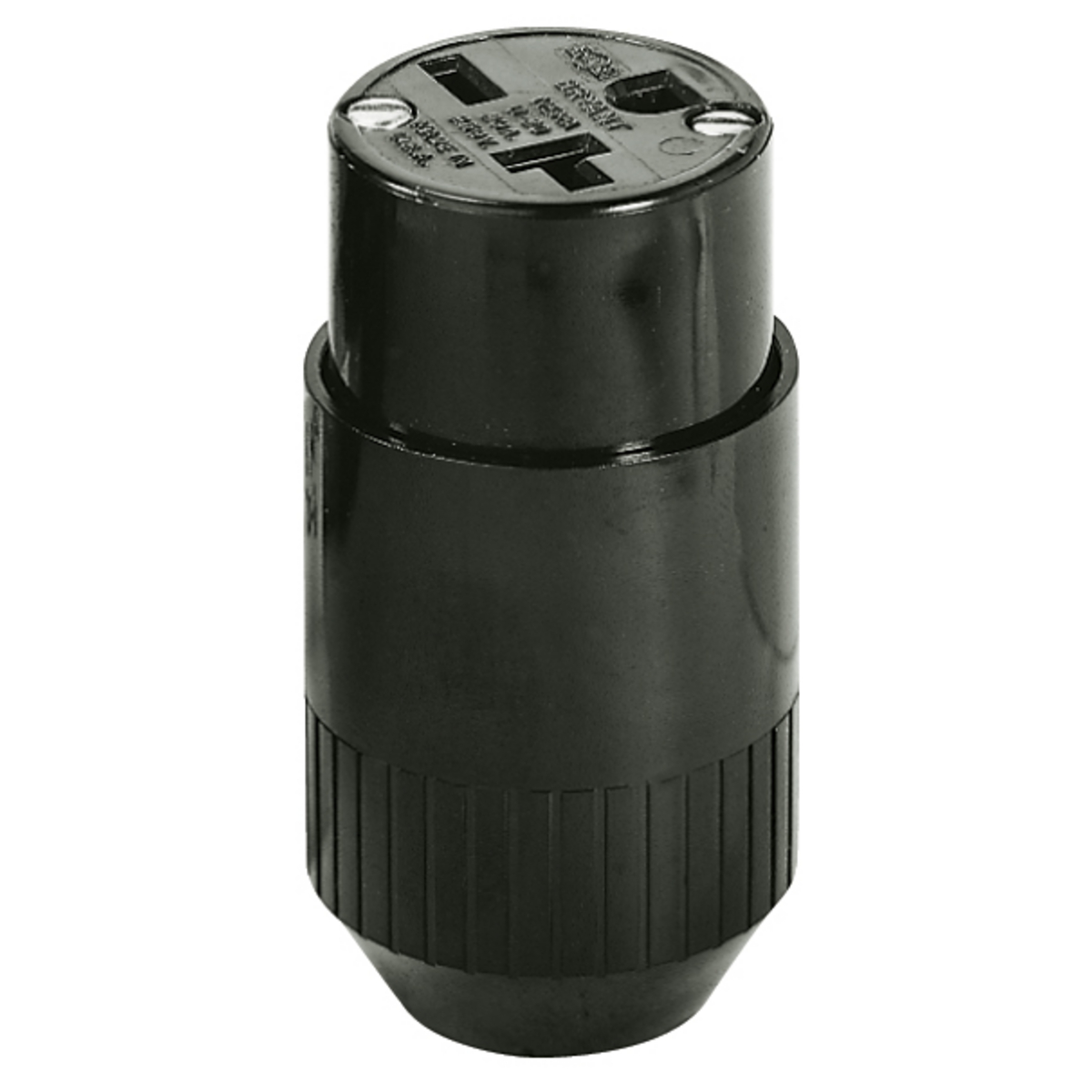

Bryant Electric 5469B Electrical Connector Assembly product image

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

Videos & documents

Documents

Spec Sheet

5469B

SKU: 5469B

MPN: 5469B

Purchase options

$26.75 / EA

manufacturer discounts
learn about discounts

$24.08 for $300.00+
$22.93 for $500.00+
$21.98 for $1,000.00+

Available to order

Lead time: over 7 working days

Lead time: over 7 working days
Secure checkout with protected order handling.
Single-unit ordering available.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Buying confidence

Established 1948
Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Key specs

View all

Amperage Rating: 20 A
Color: Black
Material: Composite
Number Of Poles: 2
Size: 2.68 in x 1.53 in x 1.38 in
Type: Connector Body

Description

Product overview

Straight Blade Devices, Female Connector Body, Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R, Black, Single Pack

Manufacturer highlights

Additional manufacturer notes

Short name: BRYANT
Feed description: BRYANT 5469B CONN, 20A 250V, 6-20R,
Invoice description: CONN, 20A 250V, 6-20R, BK

Specifications

UPC: 781786174221

UNSPSC: 39121421

Country of Origin: CN

Amperage Rating: 20 A

Color: Black

Material: Composite

Number Of Poles: 2

Size: 2.68 in x 1.53 in x 1.38 in

Type: Connector Body

Voltage Rating: 250 V

Amperage Rating: 20 A

Brand ID: BRYANT

Carton Quantity: 10

Catalog Number: 5469B

Color: Black

Conductor Range: #14 AWG to #10 AWG

Current / Amperage Rating: 20 A

Current Rating: 20 A

Description - Long: Straight Blade Devices, Female Connector Body, Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R, Black, Single Pack

Description - Short: Straight Blade Devices, Female Connector Body, Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R, Black, Single Pack

EU RoHS Indicator: Yes

Environmental Conditions: Indoor Dry Unless Protected By Additional Means

FV_Current / Amperage Rating: 20 A

FV_Voltage Rating Description: 250 V

Insulation: Insulated Body

Item Type: Standard

Material: Composite

Material - Mounting Hardware: Cord Mounted

NEMA Rating: 6-20R

Number Of Conductors: 3-Wire Grounding

Number Of Poles: 2

OEM Brand Name: Hubbell Bryant

Size: 2.68 in x 1.53 in x 1.38 in

Temperature Rating: Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact, -25В° with impact.

Type: Connector Body

UPC: 781786174221

Voltage Rating: 250 V

Voltage Rating Description: 250 V
