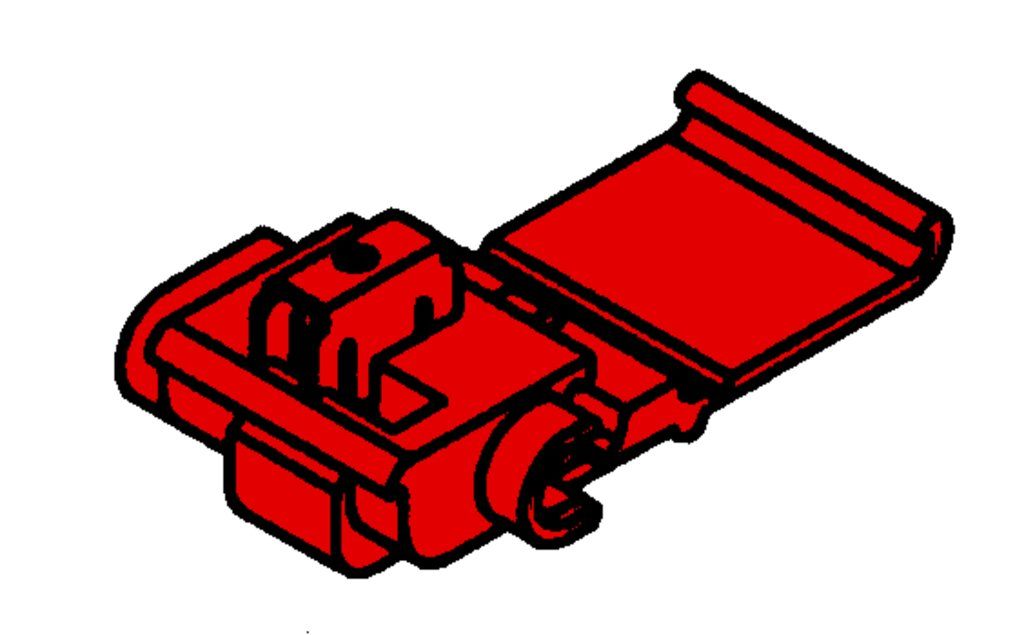

3M™ Scotchlok™ Insulation Displacement Connector 558 electrically connects a tap wire to a run (through) wire while insulating the connection. The connector is polypropylene insulated and self stripping.
3M™ Scotchlok™ Insulation Displacement Connector 558 electrically connects a tap wire to a run (through) wire while insulating the connection. The connector is polypropylene insulated and self stripping.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

558-POUCH

sku: 558-BOX

Manufacturer
3M

$406.56 / EA

In stock (0)
Lead time: over 7 days
may be longer on small orders

Must be purchased in multiples of 10

3M™ Scotchlok™ Insulation Displacement Connector 558 electrically connects a tap wire to a run (through) wire while insulating the connection. The connector is polypropylene insulated and self stripping.

3M™ Scotchlok™ Insulation Displacement Connector 558 electrically connects a tap wire to a run (through) wire while insulating the connection. The connector is polypropylene insulated and self stripping.

3M™ Scotchlok™ Insulation Displacement Connector 558 is suitable for control circuit wiring, fixture...150

3M™ Scotchlok™ Insulation Displacement Connector 558 is suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring. It is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. The connector withstands temperatures of 221 degrees F (105 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

  • Red, polypropylene-insulated connector
  • Suitable for general purpose electrical connections on an auto, boat, van or trailer
  • Accommodates 18 to 16 AWG solid/stranded or 14 AWG stranded
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Red, polypropylene-insulated connector
  • Suitable for general purpose electrical connections on an auto, boat, van or trailer
  • Accommodates 18 to 16 AWG solid/stranded or 14 AWG stranded
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
UPC
054007148616
UNSPSC
39121409
Country of Origin
USA
Color:
Red
Type:
Insulation Displacement
Voltage Rating:
600 V
Color:
Red
Standard:
UL and CSA
Sub Brand:
Scotchlok
Temperature Rating:
221 F
Type:
Insulation Displacement
Voltage Rating:
600 V
Wire Size:
22 - 16 AWG (Tap)
