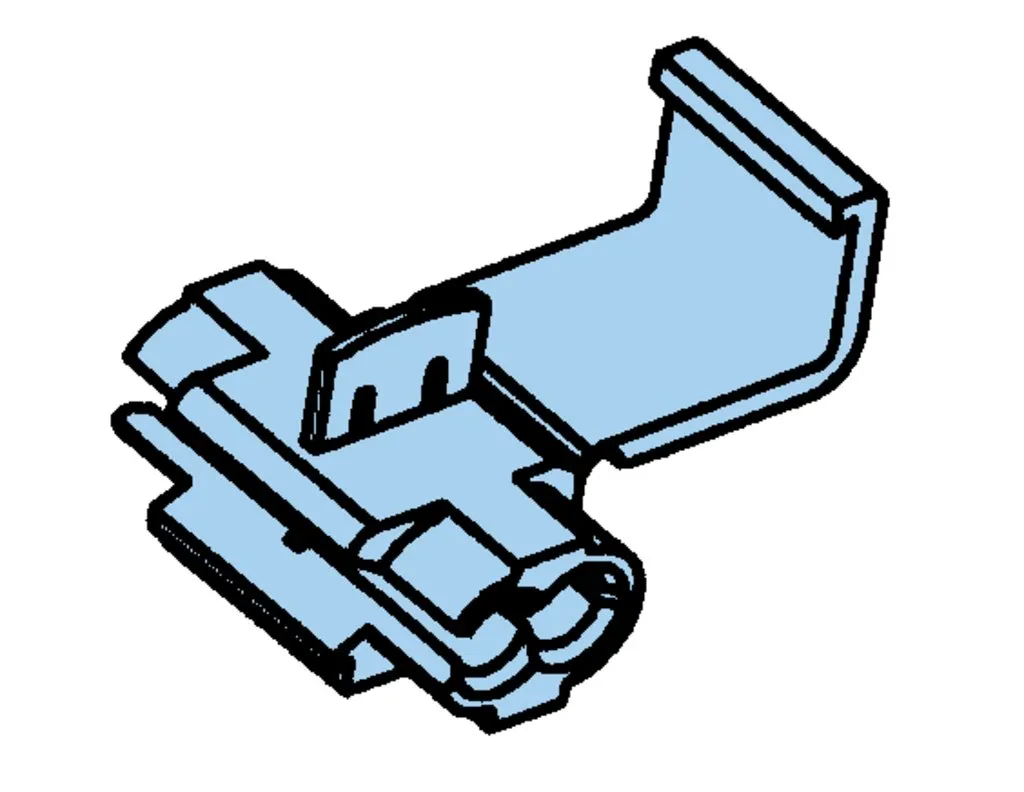

3M 560-BULK Wire Connectors product image

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

Videos & documents

Documents

Brochure Url Brochure Spec Sheet Tech Drawing

560-BULK

SKU: 560-BULK-3M

MPN: 560-BULK

Purchase options

$618.80 / EA

Available to order

Lead time: over 7 working days

Must be purchased in multiples of 5000

Lead time: over 7 working days
Secure checkout with protected order handling.
Minimum order multiple: 5000 units.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Hill Electric Supply

Established 1948

Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Key specs

View all

Color: Light Blue
Type: Insulation Displacement
Voltage Rating: 600 V

Description

Product overview

3M™ Scotchlok™ Insulation Displacement Connector 560/560B is a double run or tap connector for tap or parallel splicing. It is suitable for general purpose electrical connections on an auto, boat, van or trailer. Polypropylene insulated, self stripping and flame retardant.

Manufacturer highlights

3M™ Scotchlok™ Insulation Displacement Connector 560/560B is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. It withs...

3M™ Scotchlok™ Insulation Displacement Connector 560/560B is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. It withstands temperatures of 221 degrees F (105 degrees C). UL Listed and RoHS 2011/65/EU Compliant.

Blue, polypropylene-insulated connector is suitable for tap or parallel splicing
Helps provide a moisture-resistant seal
Accommodates 22 to 14 AWG solid/stranded
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Additional manufacturer notes

Feed description: 3M 560-BULK 560 S/LOK BULK 500/BAG
Label description: 3M(TM) Scotchlok(TM) Electrical IDC 560-BULK, Double Run or Tap, Flame Retardant
Invoice description: 560 S/LOK BULK 500/BAG 5000/CAR

Specifications

UPC: 054007008408

UNSPSC: 39121409

Country of Origin: USA

Color: Light Blue

Type: Insulation Displacement

Voltage Rating: 600 V

Color: Light Blue

Insulation Outer Diameter: 0.145 Inch

Standard: UL and CSA

Sub Brand: Scotchlok

Temperature Rating: 221 F

Type: Insulation Displacement

Voltage Rating: 600 V

Wire Size: 18 - 16 AWG / 14 AWG Stranded
