$2.49 / EA
volume discounts
- $2.34 for 10+
manufacturer discounts
learn about discounts
- $1.59 for $1,300.00+
- $1.50 for $2,000.00+
- $1.42 for $3,000.00+
15 Amp, 120/277 Volt, Decora Rocker Single-Pole AC Quiet Switch, Residential Grade, Grounding, Light Almond
15 Amp, 120/277 Volt, Decora Rocker Single-Pole AC Quiet Switch, Residential Grade, Grounding, Light Almond
150
- UPC
- 078477274972
- UNSPSC
- 39122226
- Country of Origin
- US
- Amperage Rating:
- 15 A
- Color:
- Light Almond
- Material:
- Thermoplastic
- Number Of Poles:
- 1
- Size:
- 4.200 H x 1.399 W x 1.453 D IN
- Type:
- Rocker Switch;Quiet
- Voltage Rating:
- 120/277 VAC
- Actuator:
- Rocker
- Amperage Rating:
- 15 A
- Color:
- Light Almond
- Connection:
- Quickwired Push-In;Side Wired
- Contact Rating:
- 120/277 VAC;15 AMP
- Environmental Conditions:
- Flammability (Rated UL 94 V-2)
- Material:
- Thermoplastic
- Mounting:
- Wallplate
- Number Of Poles:
- 1
- Operating Temperature:
- -40 to +120 DEG C
- Size:
- 4.200 H x 1.399 W x 1.453 D IN
- Standard:
- UL Listed (E-7458);CSA Certified (LR-3413);NOM Certified (057)
- Sub Brand:
- Decora
- Type:
- Rocker Switch;Quiet
- Voltage Rating:
- 120/277 VAC
08211316N
$18.47 /ea
Suitable for 20 Amp, 12 Vdc applications. Recognized for reliable, long service life by appliance manufactuers of industrial and commercial equipment.
| Attributed Data | Included |
|---|---|
| Action | SPDT Yes |
| Material | Contacts: silver plate, Terminals: brass or copper, Base: phenolic, Rocker and nylon bracket: nylon, Spring steel snap-in nickel plated bezel, Black gloss nylon snap-in bezel. Yes |
| Mounting | Snap-in Bezel (Metal) Yes |
| Number Of Poles | 1 Yes |
| Standard | UL Recognized component; UL Standard 1054; CSA Standard C22.2 No. 55; RoHS Compliant Yes |
| Type | 0811/0831 Series Rocker Switches Yes |
08011310AN
$11.69 /ea
Rocker Switches, 1/4 IN Quick connect terminals, 20 Amp, 120-277 Vac, SPST Poles.
| Attributed Data | Included |
|---|---|
| Action | Maintained Yes |
| Actuator | Rocker Yes |
| Connection | 1/4" Quick Connect Terminal Yes |
| Contact Configuration | ON -- OFF Yes |
| Contact Rating | Silver Plated Contacts Yes |
| Indicator | Non-Lighted Yes |
| Material | Nylon 66 221 Yes |
| Mounting | Snap-In Bezel (Nylon) Yes |
| Number Of Poles | 1 Yes |
| Standard | UL Recognized Component. UL File Number E335442, UL Standard: 1054, Guide WORY2, CSA File Number: 249055, CSA Standard: C22.2 No.55, RoHS Compliant Yes |
| Type | 0801/0821 Series Rocker Switches Yes |
08620013N
$18.66 /ea
Rocker Switches, 1/4" Quick connect terminals, 15 Amp, 125 Vac, 10 Amp, 250 Vac, 3/4 HP, 250 Vac, DPST Poles, Circuitry ON -- ON
| Attributed Data | Included |
|---|---|
| Action | Maintained Yes |
| Actuator | Rocker Yes |
| Connection | 1/4" Quick Connect Terminal Yes |
| Contact Configuration | ON -- ON Yes |
| Contact Rating | Silver Plated Contacts Yes |
| Indicator | Non-Lighted Yes |
| Material | Nylon 66 221 Yes |
| Mounting | Nylon Snap-In Yes |
| Number Of Poles | 2 Yes |
| Standard | UL Recognized Component. UL File Number E335442, UL Standard: 1054, Guide WORY2, CSA File Number: 249055, CSA Standard: C22.2 No.55, RoHS Compliant Yes |
| Type | 0852/0862 Series Rocker Switches Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
08211316N
Suitable for 20 Amp, 12 Vdc applications. Recognized for reliable, long service life by appliance manufactuers of industrial and commercial equipment.
$18.47 / EA
|
08011310AN
Rocker Switches, 1/4 IN Quick connect terminals, 20 Amp, 120-277 Vac, SPST Poles.
$11.69 / EA
|
08620013N
Rocker Switches, 1/4" Quick connect terminals, 15 Amp, 125 Vac, 10 Amp, 250 Vac, 3/4 HP, 250 Vac, DPST Poles, Circuitry ON -- ON
$18.66 / EA
|
|
| Attributed Data | |||
| Action | Maintained Maintained | SPDT SPDT | |
| Actuator | Rocker Rocker | ||
| Amperage Rating | 15 A 15 A | 15 Amp/10 Amp AMP 15 Amp/10 Amp AMP | 20 A 20 A |
| Connection | 1/4" Quick Connect Terminal 1/4" Quick Connect Terminal | ||
| Contact Configuration | ON -- OFF ON -- OFF | ON -- ON ON -- ON | |
| Contact Rating | Silver Plated Contacts Silver Plated Contacts | ||
| Indicator | Non-Lighted Non-Lighted | ||
| Material | Contacts: silver plate, Terminals: brass or copper, Base: phenolic, Rocker and nylon bracket: nylon, Spring steel snap-in nickel plated bezel, Black gloss nylon snap-in bezel. Contacts: silver plate, Terminals: brass or copper, Base: phenolic, Rocker and nylon bracket: nylon, Spring steel snap-in nickel plated bezel, Black gloss nylon snap-in bezel. | Nylon 66 221 Nylon 66 221 | |
| Mounting | Nylon Snap-In Nylon Snap-In | Snap-In Bezel (Nylon) Snap-In Bezel (Nylon) | Snap-in Bezel (Metal) Snap-in Bezel (Metal) |
| Number Of Poles | 1 1 | 2 2 | |
| Standard | UL Recognized Component. UL File Number E335442, UL Standard: 1054, Guide WORY2, CSA File Number: 249055, CSA Standard: C22.2 No.55, RoHS Compliant UL Recognized Component. UL File Number E335442, UL Standard: 1054, Guide WORY2, CSA File Number: 249055, CSA Standard: C22.2 No.55, RoHS Compliant | UL Recognized component; UL Standard 1054; CSA Standard C22.2 No. 55; RoHS Compliant UL Recognized component; UL Standard 1054; CSA Standard C22.2 No. 55; RoHS Compliant | |
| Type | 0801/0821 Series Rocker Switches 0801/0821 Series Rocker Switches | 0811/0831 Series Rocker Switches 0811/0831 Series Rocker Switches | 0852/0862 Series Rocker Switches 0852/0862 Series Rocker Switches |
| Voltage Rating | 120 to 277 VAC 120 to 277 VAC | 125 VAC 125 VAC | 125/250 Vac/125-250 Vac VAC 125/250 Vac/125-250 Vac VAC |
| Add a product to the cart | Show more details | Show more details | Show more details |
Customers Also Bought
-
5603-2T
LEVITON MANUFACTURING
15 Amp, 120/277 Volt, Decora Rocker 3-Way AC Quiet Switch, Residential Grade, Grounding, Light Almond
See more details -
80401-T
LEVITON MANUFACTURING
1-Gang, Decora/GFCI Device Decora Wallplate, Standard Size, Thermoset, Device Mount, Light Almond
See more details -
80409-T
LEVITON MANUFACTURING
2-Gang, Decora/GFCI Device Decora Wallplate, Standard Size, Thermoset, Device Mount, Light Almond
See more details -
T5325-T
LEVITON MANUFACTURING

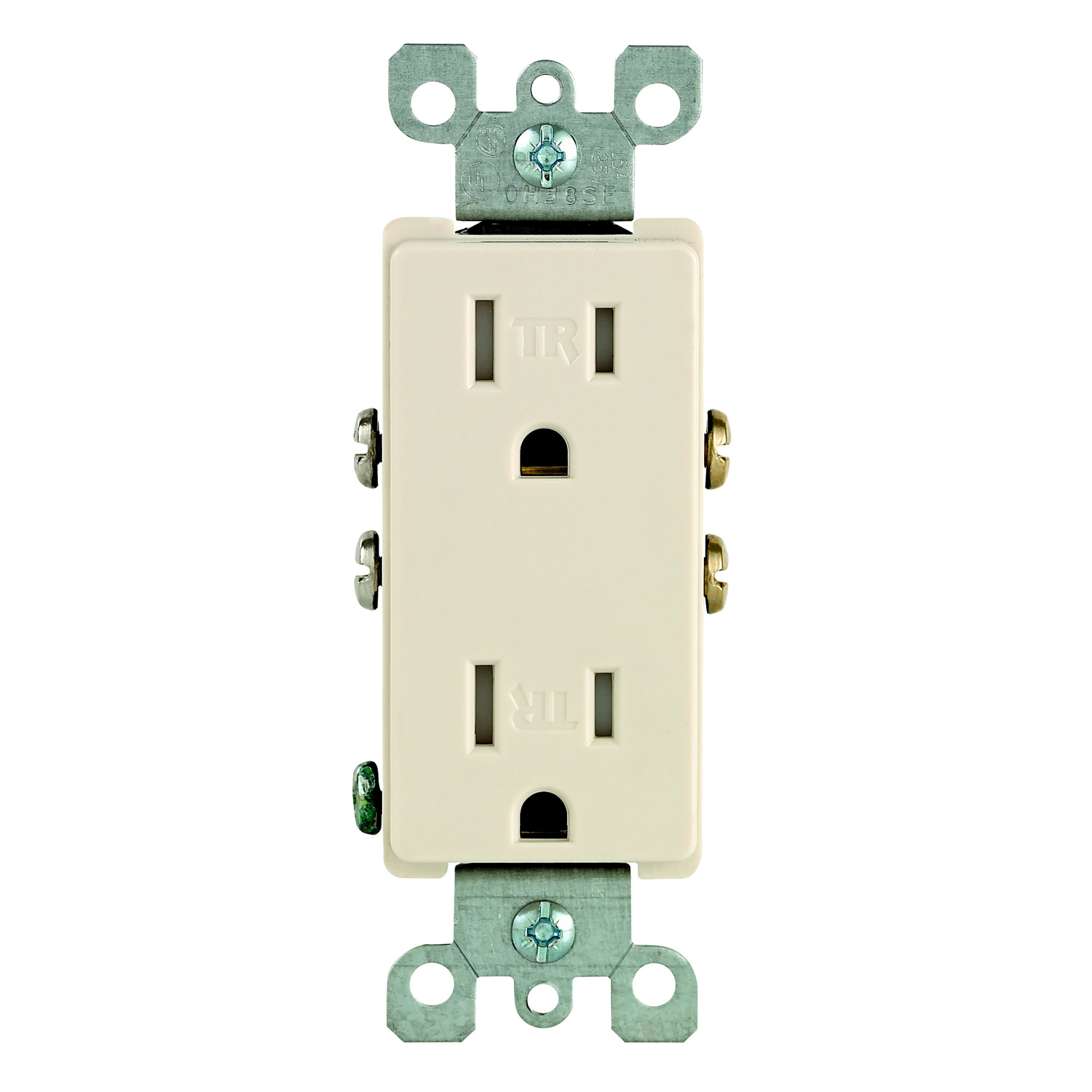

15 Amp 125 Volt, Tamper Resistant, Decora Duplex Receptacle, Straight Blade, Grounding, Light Almond
