$280.47 / EA
Local stock: 0
Lead time:
over 7 working days
3M™ 5810 Series Industrial Loadbreak Elbow Kit is a fully shielded and insulated dead front termination. This kit is for connecting underground cable to transformers, switchgear and junctions that come with loadbreak bushings. It is designed for use on tape shield, wire shield, UniShield® and JCN types of cables. The elbow is peroxide cured EPDM.
3M™ 5810 Series Industrial Loadbreak Elbow Kit is a fully shielded and insulated dead front termination. This kit is for connecting underground cable to transformers, switchgear and junctions that come with loadbreak bushings. It is designed for use on tape shield, wire shield, UniShield® and JCN types of cables. The elbow is peroxide cured EPDM.
3M™ 5810 Series Industrial Loadbreak Elbow Kit includes an elbow body, loadbreak probe, probe instal...150
3M™ 5810 Series Industrial Loadbreak Elbow Kit includes an elbow body, loadbreak probe, probe installation tool, silicone lubricant, cold shrink jacketing tube, mastic strips, ground braid assembly, constant force spring and CC 3 cable cleaning pads. This kit is rated for 5 to 15 kV, 200 amp applications. Meets ANSI/IEEE Standard 386.
- Ideal for connecting underground cable to transformers, switchgear and junctions that come with loadbreak bushings
- Cold shrink tube seals from the bottom of the elbow to the cable jacket
- Specially designed for use on tape shield, wire shield, UniShield® and jacketed concentric neutral types of cables
- High-quality, peroxide-cured EPDM provides better insulation
- Ideal for connecting underground cable to transformers, switchgear and junctions that come with loadbreak bushings
- Cold shrink tube seals from the bottom of the elbow to the cable jacket
- Specially designed for use on tape shield, wire shield, UniShield® and jacketed concentric neutral types of cables
- High-quality, peroxide-cured EPDM provides better insulation
- UPC
- 054007047759
- UNSPSC
- 39121450
- Country of Origin
- USA
- Amperage Rating:
- 200 A
- Size:
- 2/0 AWG; 3/0 AWG
- Type:
- Elbow
- Voltage Rating:
- 5,000/8,000 V
- Amperage Rating:
- 200 A
- Insulation:
- 1
- Insulation Diameter Range:
- 0.700-0.910 in
- Size:
- 2/0 AWG; 3/0 AWG
- Type:
- Elbow
- Voltage Rating:
- 5,000/8,000 V
Recently Viewed
-
5810-B-2/0
3M
3M™ 5810 Series Industrial Loadbreak Elbow Kit is a fully shielded and insulated dead front termination. This kit is for connecting underground cable...
See more details -

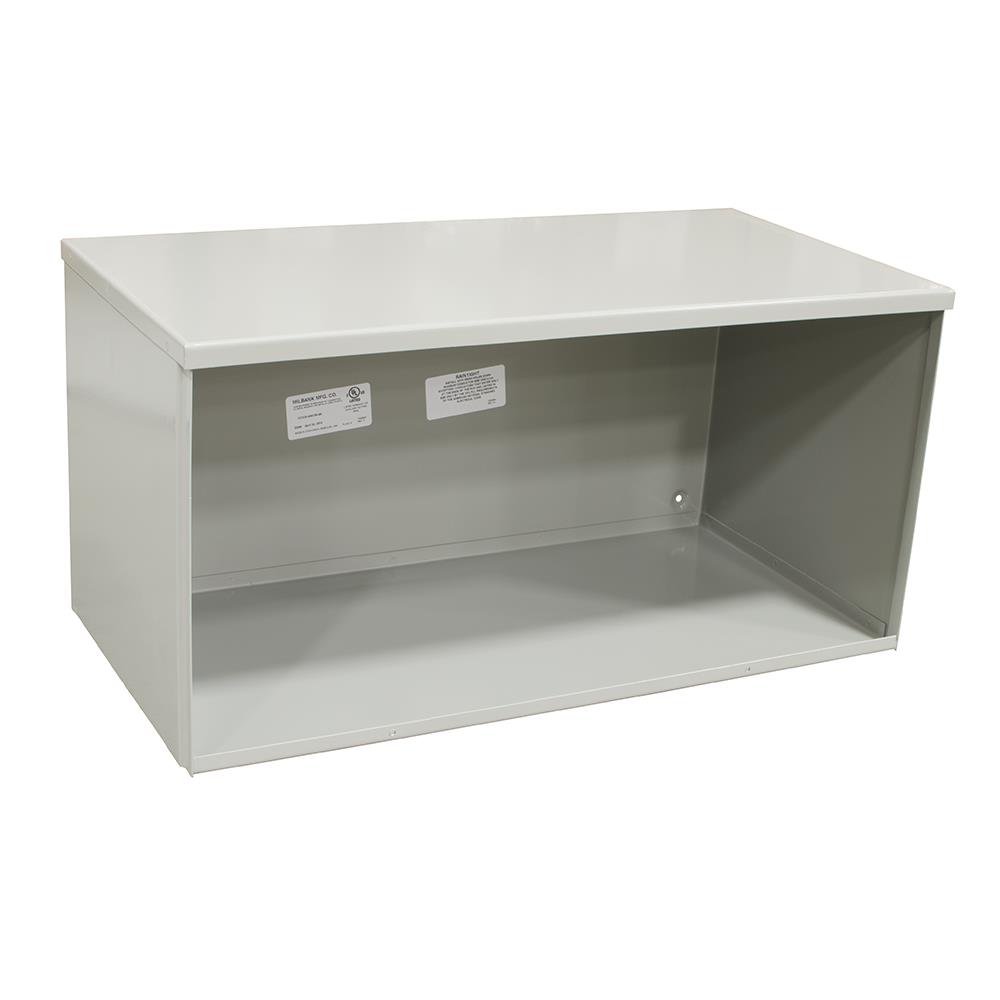

4412-GSC3R-NK
