5815-D
SKU: 5815-D
MPN: 5815-D
Key specs
View all- Amperage Rating
- 600 Ampere
- Type
- Modular Splice
Description
Product overview
3M™ Dead-End Modular Kit contains all the accessories required for cable splicing. This kit contains 1 tee module, 2 dead-end plugs, 1 connecting stud and 1 silicone lubricant. The kit is rated for 5 to 25 kV and 600 amps industrial shielded power cables. The modular kit is suitable for operation in submerged locations.
3M™ Dead-End Modular Kit contains all the accessories required for cable splicing. This kit contains 1 tee module, 2 dead-end plugs, 1 connecting stud and 1 silicone lubricant. The kit is rated for 5 to 25 kV and 600 amps industrial shielded power cables. The modular kit is suitable for operation in submerged locations.
Manufacturer highlights
3M™ Dead-End Modular Kit includes 1 tee module, 2 dead-end plugs, 1 connecting stud, 1 instruction booklet and 1 silicone lubricant. This kit is for d...
3M™ Dead-End Modular Kit includes 1 tee module, 2 dead-end plugs, 1 connecting stud, 1 instruction booklet and 1 silicone lubricant. This kit is for dead-end splicing with future add-on capability in a modular design that allows for splicing configurations. The dead-end plug provides a high impedance test point for safely checking the de-energized status of the circuit.
- Dead-ends tape shield, wire shield, UniShield® and JCN cables
- Modular design for future splice applications.
- Accommodates wire size of 2 AWG to 750 kcmil (stranded) (Cu) and 2 AWG to 1000 kcmil (stranded) (Al)
- Rated for 5 to 25 kV, 600 amp
Additional manufacturer notes
- Short name
- 3M
- Feed description
- 3M 5815-D 5815-D DEAD END
- Label description
- 3M(TM) Dead-End Modular Kit 5815-D
- Invoice description
- 5815-D DEAD END
Specifications
- UPC
- 054007042334
- UNSPSC
- 31162810
- Country of Origin
- USA
- Amperage Rating
- 600 Ampere
- Type
- Modular Splice
Do you have a question about 5815-D?
Videos & documents
Documents
Similar items
Compare alternates in this category before ordering.
Similar item
5815-TW

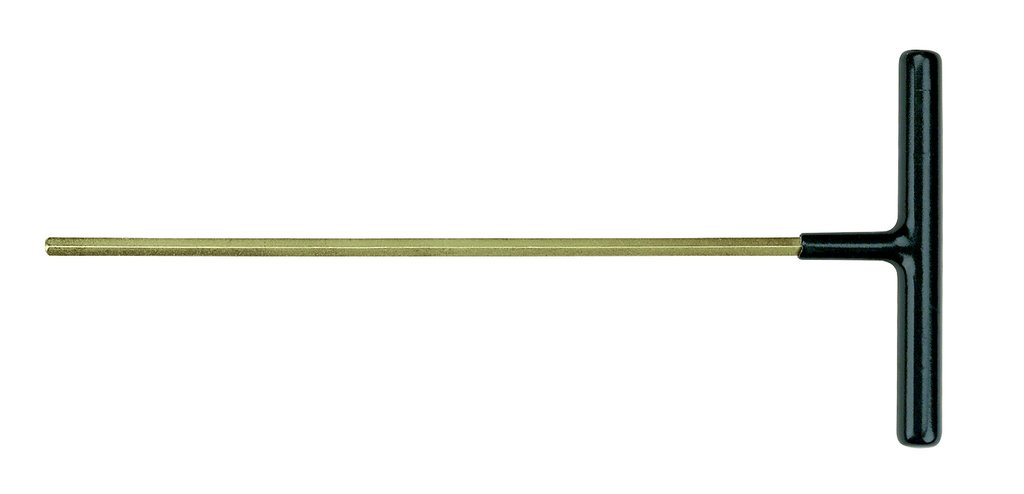

3M™ T-Wrench is ideal for installing connecting plugs on the 5815-S and 5815-T kits. The wrench is rated for 600-amp applications.
