Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

5SV3314-6

SKU: 5SV3314-6

MPN: 5SV3314-6

Purchase options

$173.84 / EA

manufacturer discounts
learn about discounts

$155.86 for $1,500.00+
$149.86 for $2,500.00+
$143.87 for $3,500.00+

Available to order

Local stock: 0
Lead time: over 7 working days

Lead time: over 7 working days
Secure checkout with protected order handling.
Single-unit ordering available.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Buying confidence

Established 1948
Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Request a quote

Key specs

View all

Amperage Rating: 40 A
Number Of Poles: 2
Type: TYPE A
Voltage Rating: 230 V

Description

Product overview

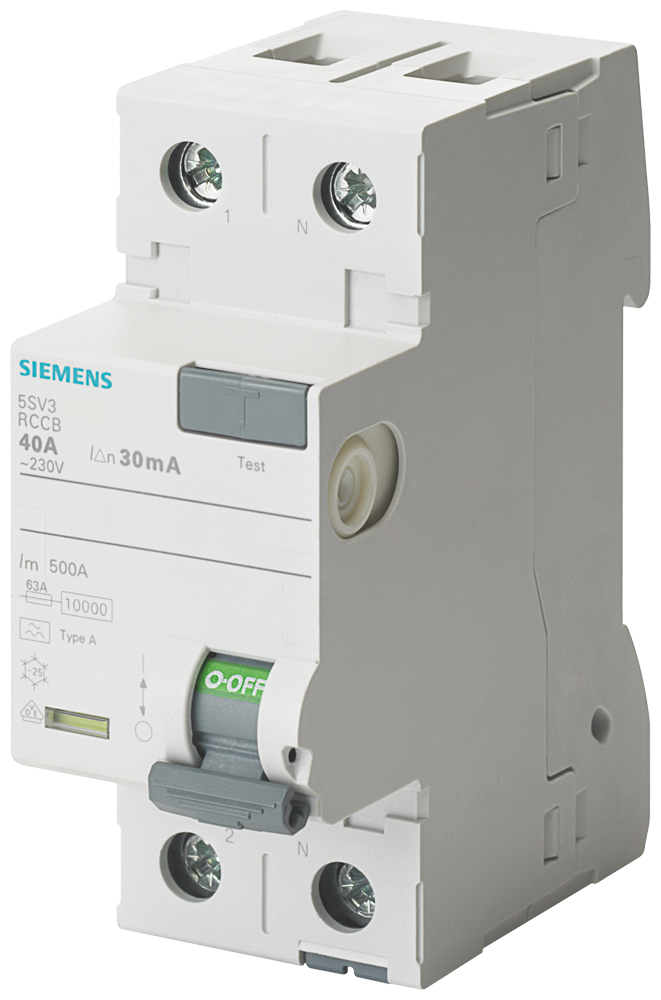

RCCB TYPE A,1+N POLE,40A, 30MA, 230V 2MW

Manufacturer highlights

Additional manufacturer notes

Short name: S-A
Feed description: S-A 5SV3314-6 RCCB TYPE A,1+N POLE,

Specifications

UPC: 804766000584

UNSPSC: 39122233

Country of Origin: DE

Amperage Rating: 40 A

Number Of Poles: 2

Type: TYPE A

Voltage Rating: 230 V

Amperage Rating: 40 A

Current / at AC / rated value: 40

Design of the product: Instantaneous

Interrupt Rating: 10kA

Mounting: On standard mounting rail (DIN 35mm)

Mounting Type: DINrail(REG)

Number Of Poles: 2

Operating frequency / Note: 50 Hz

Product designation: RCCB

Product feature / selective type: No

Short Circuit Rating: 10kA

Short-circuit current / of series fuse / maximum permissible: 63A

Short-circuit current rating: 10k

Simaris relevant: X

Standard: CEBEC

Sub Brand: SENTRON

Supply voltage / at AC / rated value: 230

Supply voltage / at AC / rated value / Note: 230V

Supply voltage frequency / rated value / Note: 50Hz

Surge current resistance / rated value: 1k

Switching function / short-term delayed: No

Tripping residual / rated value / derated current / at 40 Cel: 40

Tripping residual / rated value / derated current / at 45 Cel: 38.1000A

Tripping residual / rated value / derated current / at 50 Cel: 35.59

Tripping residual / rated value / derated current / at 55 Cel: 32.2900A

Tripping residual / rated value / derated current / at 60 Cel: 28.19

Tripping residual / rated value / derated current / at 65 Cel: 23.3000A

Tripping residual / rated value / derated current / at 70 Cel: 17.62

Tripping residual current / rated value: 30.00mA

Type: TYPE A

Type of fault current: A

Voltage Rating: 230 V

circuit-breaker / Design: 5SV3

product brand name: SENTRON
