6001-22
SKU: 6001-22
MPN: 6001-22
Key specs
View all- Amperage Rating
- 10 A
- Type
- Puller Assembly
- Voltage Rating
- 250 V
Description
Product overview

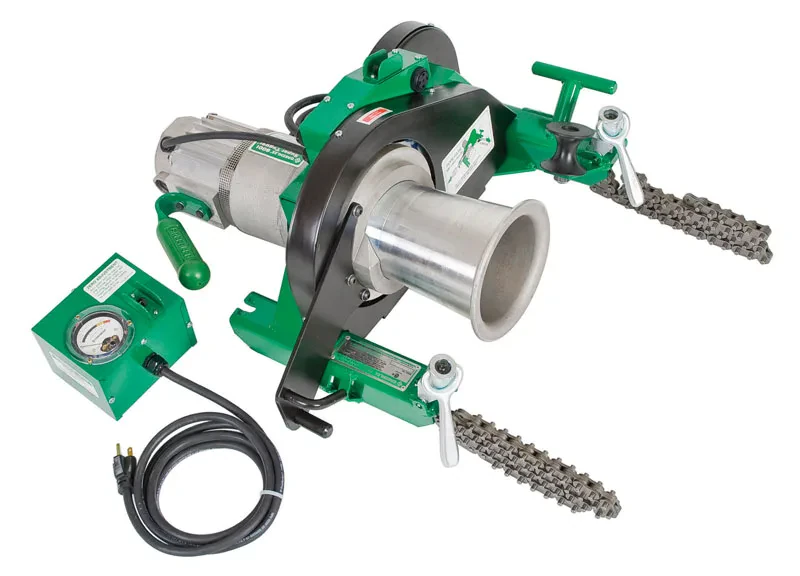

Super Tugger® 6500 Pound Cable Puller with Force Gauge and Vise Chains. 220 VAC 50 HZ. Pull up to 6,500 lbs. (28.9 kN) with less than 27 lbs. (120 N) of operator effort. Unique floor mounting attachment for quick, reliable setup Leaf-type mounting chains won't twist when tightening. Heat-treated steel serrated gripper feet for secure mounting to conduit. Force Gauge included to constantly monitor the pull. Right-angle sheave allows the operator to stand out of the direct line of force....
Super Tugger® 6500 Pound Cable Puller with Force Gauge and Vise Chains. 220 VAC 50 HZ. Pull up to 6,500 lbs. (28.9 kN) with less than 27 lbs. (120 N) of operator effort. Unique floor mounting attachment for quick, reliable setup Leaf-type mounting chains won't twist when tightening. Heat-treated steel serrated gripper feet for secure mounting to conduit. Force Gauge included to constantly monitor the pull. Right-angle sheave allows the operator to stand out of the direct line of force. Audio alarm high force warning and circuit breaker shut off at maximum force for added safety. Tapered capstan and patented rope guidance system for better control of the rope when feeding onto the capstan. Patented.
Manufacturer highlights
Additional manufacturer notes
- Short name
- GRN
- Feed description
- GRN 6001-22 PULLER ASSEMBLY,CABLE-2
- Label description
- Super Tugger Cable Puller Power Unit, Includes force gauge except 220 VAC 50 HZ and vise chains
- Invoice description
- PULLER ASSEMBLY,CABLE-220V
Specifications
- UPC
- 783310314660
- UNSPSC
- 39121722
- Country of Origin
- US
- Amperage Rating
- 10 A
- Type
- Puller Assembly
- Voltage Rating
- 250 V
- Accessory
- 35098 UPC 35098 Double-Braided Composite Rope 3/4 IN x 300 FT (19.100 MM x 91.000 M), 35100 UPC 35100 Double-Braided Composite Rope 3/4 IN x 600 FT (19.100 MM x 182.000 M), 35101 UPC 35101 Double-Braided Composite Rope 3/4 IN x 1,200 FT (19.100 MM x 365.0 M)
- Amperage Rating
- 10 A
- Cable Type
- Electrical Cable
- Capacity
- 16.5 FTPM At No Load, (8.800 KN) - 11 (3.4) At 2000 LB, (17.900 KN) - 7.5 (2.3) At 4000 LB, (26.700 KN) - 6 (1.8) At 6000 LB
- Drive Motor
- 1-1/2 hp, 220 VAC, 50 Hz
- Includes
- Force Gauge And Vise Chains
- Load
- 6500.000 LB (28.900 KN) Maximum, 4500.000 LB (20.000 KN) Continuous
- Mounting
- Chain Mount
- Prime Mover Specification
- 3/4 IN (19.100 MM) Double-Braided Composite, Rated At 26000LB (115.600 KN)
- Pulling Force
- 6500.000 LB (28.900 KN) Maximum, 4500.000 LB (20.000 KN) Continuous
- Pulling Rope
- 3/4 IN (19.100 MM) Double-Braided Composite, Rated At 26000LB (115.600 KN)
- Pulling Speeds
- 16.5 FTPM At No Load, (8.800 KN) - 11 (3.4) At 2000 LB, (17.900 KN) - 7.5 (2.3) At 4000 LB, (26.700 KN) - 6 (1.8) At 6000 LB
- Sub Brand
- Super Tugger
- Type
- Puller Assembly
- Voltage Rating
- 250 V
- Manufacturer keywords
- 6001-22,31466
