625
SKU: 625TZ
MPN: 625
Key specs
View all- Material
- Bronze
- Size
- 1/2 to 1 IN
- Type
- Ground Clamp
Description
Product overview

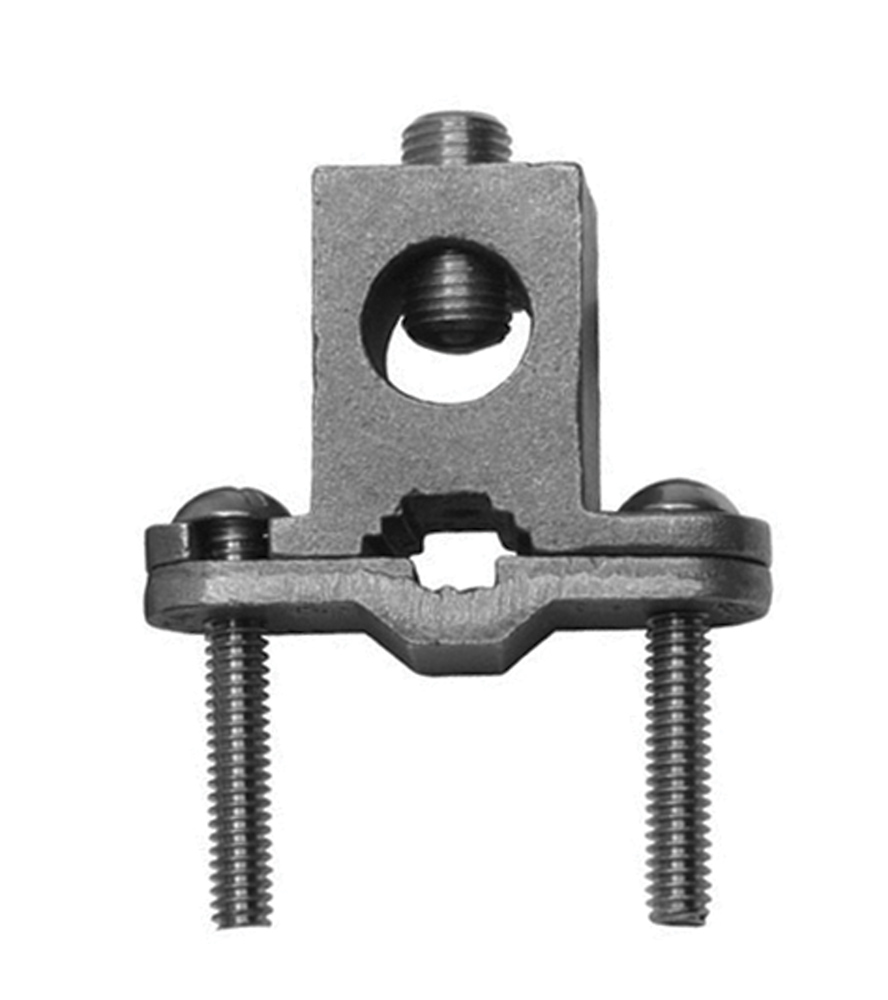

1/2" - 1" Bronze - Lay-In Lug Style Combination Ground Clamps for Bare Wire
1/2" - 1" Bronze - Lay-In Lug Style Combination Ground Clamps for Bare Wire
Manufacturer highlights
Topaz's lay in style Combination Ground Clamps for bare wire afford easy installations and the most secure grounding of bare wire to water pipes or re...
Topaz's lay in style Combination Ground Clamps for bare wire afford easy installations and the most secure grounding of bare wire to water pipes or rebar. Approved for use in direct burial applications, our versatilely designed Combination Ground Clamp is available with stainless steel or brass screws in multiple assemblies to accommodate varying wire ranges and applications. Bronze construction ensures ground path continuity and provides excellent corrosion protection in damp locations.
- 625, 626 and 629 - Fits 8 STR to 4/0 STRAWG copper
- 627 and 628 - Fits 10 SOL to 2 STRAWG copper
- Lay-in style lug for fast and easy installation of ground wires
- Excellent corrosion protection and ground path continuity
Additional manufacturer notes
- Short name
- TPZ
- Feed description
- TPZ 625 3/8"-1" GRD CLAMP DB 8-4/0
- Invoice description
- 3/8"-1" GRD CLAMP DB 8-4/0
Specifications
- UPC
- 751338819689
- UNSPSC
- 39121613
- Country of Origin
- MUL
- Material
- Bronze
- Size
- 1/2 to 1 IN
- Type
- Ground Clamp
- Conductor Material
- Copper
- Conductor Size
- 8 to 4/0 AWG
- Connection
- Screw
- Connectors (IN)
- Screw IN
- Label Description
- COMBO GROUND CLAMPS FOR BARE WIRE
- Length
- 2.36 in
- Material
- Bronze
- Nominal Length Inches
- 7
- Size
- 1/2 to 1 IN
- Size (IN)
- 3/8"-1" IN
- Standard
- UL 467, UL File Number E170258, US FED SPEC Number A-A-50552, NEMA/ANSI FB-1, Military Specification Number:W-F-406D, W-F-406E, W-F-408D, W-S-610D
- Type
- Ground Clamp
- Wire Range (AWG)
- 8 to 4/0 AWG
- Wire Size
- #8-4/0
- Manufacturer keywords
- 3/8"-1" GRD CLAMP DB 8-4/0
