6330500PL
SKU: 6330500PL
MPN: 6330500PL
Key specs
View all- Material
- Steel
- Type
- Pipe Saddles
Description
Product overview

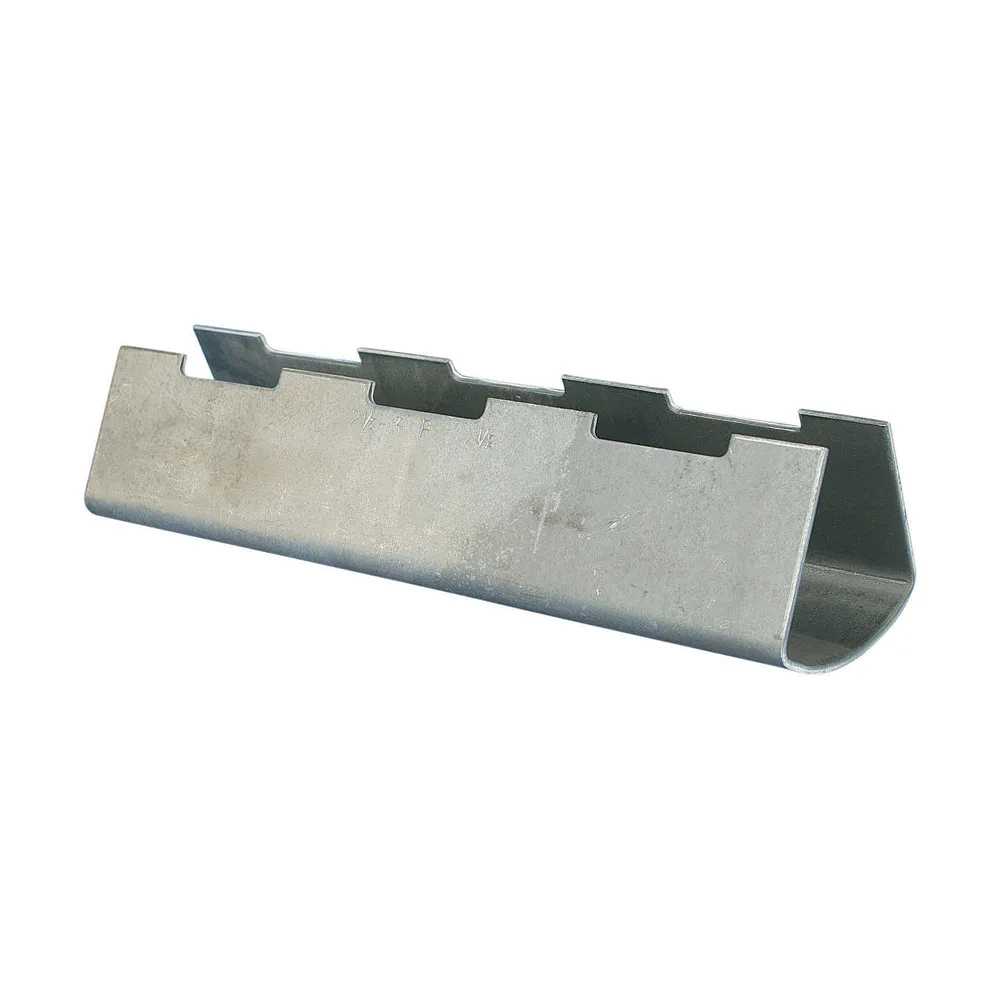

633 Pipe Saddle for 2 1/2" Insulation, 4"�5" Pipe
633 Pipe Saddle for 2 1/2" Insulation, 4"�5" Pipe
Manufacturer highlights
- Designed for high temperature service or where heat losses are to be kept at a minimum and to protect insulation against damage at the point of support
- Conforms with Federal Specification WW-H-171 (Type 40A or 40B), Manufacturers Standardization Society ANSI'/MSS-SP-58 (Type 39)
Additional manufacturer notes
- Short description
- SADDLE,PIPE,3 1/2 TO 5 IN PI
- Short name
- EFS
- Feed description
- NVENT EFS 6330500PL SADDLE,PIPE,3 1
- Label description
- SADDLE,PIPE,3 1/2 TO 5 IN PIPE,2 1/2 INSUL,PLAIN
- Invoice description
- SADDLE,PIPE,3 1/2 TO 5 IN PIPE,2 1/2 I
Specifications
- UPC
- 782856371236
- UNSPSC
- 40141725
- Country of Origin
- US
- Material
- Steel
- Type
- Pipe Saddles
- Finish
- Plain
- Length (imperial) <Nom>
- 12 in
- Material
- Steel
- Sub Brand
- CADDY
- Type
- Pipe Saddles
- Manufacturer keywords
- Pipe Insulation Saddle, Pipe Saddle, Weldable Pipe Saddle
