Videos & documents
Documents
6364CR
SKU: 6364CR-LEV
MPN: 6364CR
Key specs
View all- Amperage Rating
- 50 A
- Color
- White/Yellow
- Material
- Nylon
- Number Of Poles
- 3
- Size
- 2.56 Dia x 7.10 H IN
- Type
- Locking Connector
Description
Product overview
50Amp, 125/250V AC, Non-NEMA, 3P, 4W, Black & White Locking Connector, Industrial Grade, Grounding, Corrosion Resistant(CR) Yellow
50Amp, 125/250V AC, Non-NEMA, 3P, 4W, Black & White Locking Connector, Industrial Grade, Grounding, Corrosion Resistant(CR) Yellow
Manufacturer highlights
Additional manufacturer notes
- Short name
- LEV
- Feed description
- LEV 6364CR 50A CONNECTOR
- Invoice description
- YL CONN CORES NONEMA 3PO4WI50A125/250V
Specifications
- UPC
- 078477804643
- UNSPSC
- 39121413
- Country of Origin
- MX
- Amperage Rating
- 50 A
- Color
- White/Yellow
- Material
- Nylon
- Number Of Poles
- 3
- Size
- 2.56 Dia x 7.10 H IN
- Type
- Locking Connector
- Voltage Rating
- 125/250 V
- Amperage Rating
- 50 A
- Clamp Screw Type
- Phillips Head
- Color
- White/Yellow
- Conductor Range
- 10-4 AWG
- Connection
- Terminal Set Screw;Cable Clamp Screw
- Dielectric Breakdown Voltage
- 2000 V
- Environmental Conditions
- Flammability (Rated V-2)
- Material
- Nylon
- NEMA Rating
- NON-NEMA
- Number Of Poles
- 3
- Number Of Wires
- 4
- Replacement Parts Material
- Nickel Plated Brass (Assembly Screw);Copper (Terminal Block);Nickel Plated Bronze (Ground Shunt);Nickel Plated Brass (Contact);Nylon (Face Module)
- Size
- 2.56 Dia x 7.10 H IN
- Standard
- NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Listed 498 (File E13399);RoHS Compliant
- Terminal Size
- 062 IN
- Type
- Locking Connector
- Voltage Rating
- 125/250 V
Do you have a question about 6364CR-LEV?
Videos & documents
Documents
Similar items
Compare alternates in this category before ordering.
Similar item

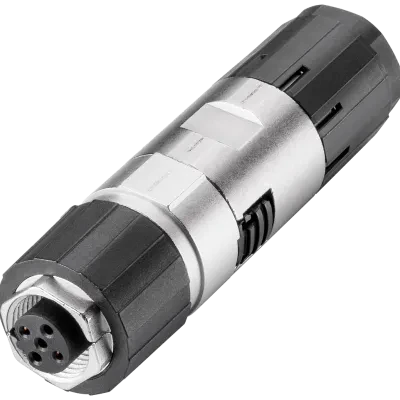

6GK19050EB106AA0
PB FC M12 CABLE CONNECTOR PRO. M12 PLUG-IN CONNECTOR. W. ROBUST METAL HOUSING A. FC CONNECT. SYSTEM. WITH AXIAL CABLE OUTLET. FOR USE WITH E...
$74.82 / EA
Available to order
Similar item
6360CR-LEV
50Amp, 125V AC, Non-NEMA, 2P, 3W, Black & White Locking Connector, Industrial Grade, Grounding, Corrosion Resistant(CR) Yellow
$116.52 / EA
Available to order
Similar item

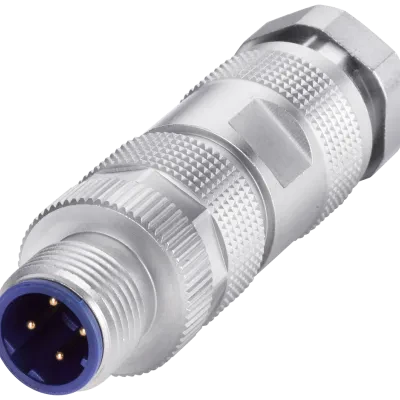

6GK19010DB106AA0
IE M12 PLUG PRO M12 PLUG CONNECTOR W. RUGGED METAL HOUSING A. SHORT ASSEMBLY TIMES DUE TO THEIR INSULATION- DISPLACEMENT TECHNOLOGY METHOD,...
$72.21 / EA
Available to order
Similar item

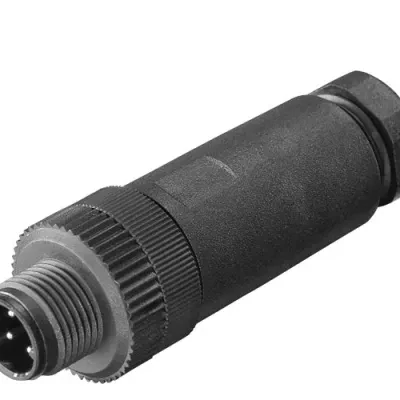

6GK19070DB106AA3
