657SRT
SKU: 657SRT
MPN: 657SRT
Key specs
View all- Material
- Steel
- Size
- 2-1/2 IN
- Type
- Compression EMT Connector
Description
Product overview
2-1/2" Steel Raintight Compression Type Connectors & Couplings
2-1/2" Steel Raintight Compression Type Connectors & Couplings
Manufacturer highlights
The Topaz line of efficient and dependable EMT connectors feature a compression type assembly and provide a raintight and concrete tight connection to...
The Topaz line of efficient and dependable EMT connectors feature a compression type assembly and provide a raintight and concrete tight connection to prevent damage from the elements and ensure continued high performance. Rugged steel construction with a zinc plated finish helps preserve integrity; assemblies include steel locknut and gasket. Used to securely bond EMT thin wall conduits to electrical boxes or enclosures. Available in sizes from 1/2 to 4; UL listed. NEMA/ANSI FB-1 compliant.
- Compression type connectors and couplings
- Concrete tight and raintight
- Assembled with a steel locknut & gasket
- Connectors available with insulated throat
Additional manufacturer notes
- Feed description
- TPZ 657SRT 2-1/2 RAINTIGHT STEEL CO
- Invoice description
- 2-1/2 RAINTIGHT STEEL COMP. CONN.12-PK
Specifications
- UPC
- 751338835986
- UNSPSC
- 39121434
- Country of Origin
- MUL
- Material
- Steel
- Size
- 2-1/2 IN
- Type
- Compression EMT Connector
- Connection
- Threaded x Compression
- Connectors (IN)
- Threaded x Compression IN
- Diameter
- 1.562 IN
- Finish
- Zinc Plated
- For Use With
- Join EMT To Box or Enclosure
- Insulation
- None
- Label Description
- EMT CONNECTORS
- Length
- 1.968 IN
- Material
- Steel
- Size
- 2-1/2 IN
- Size (IN)
- 2 1/2" IN
- Size (trade) (IN)
- 2-1/2" IN
- Standard
- UL 514B, UL File Number E170258, US Federal Specification Number A-A-50553, CSA Certified, NEMA/ANSI FB-1, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D
- Thread Length
- 3.625 IN
- Type
- Compression EMT Connector
- Manufacturer keywords
- 2-1/2 RAINTIGHT STEEL COMP. CO
Do you have a question about 657SRT?
Videos & documents
Documents
Similar items
Compare alternates in this category before ordering.
Similar item
820RT
Steel EMT compression connector. concrete tight and rain tight. Trade Size 1/2".
$1.70 / EA
22 available
Similar item
658SRT
3" Steel Raintight Compression Type Connector
$26.53 / EA
Available to order
Similar item
631I
1/2 IN EMT CONNECTORS - SET SCREW TYPE - ZINC INSULATED THROAT
$0.70 / EA
Available to order
Similar item

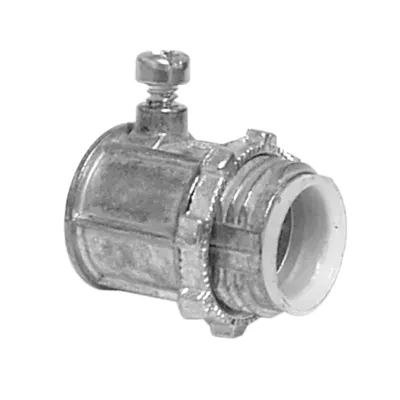

633I
